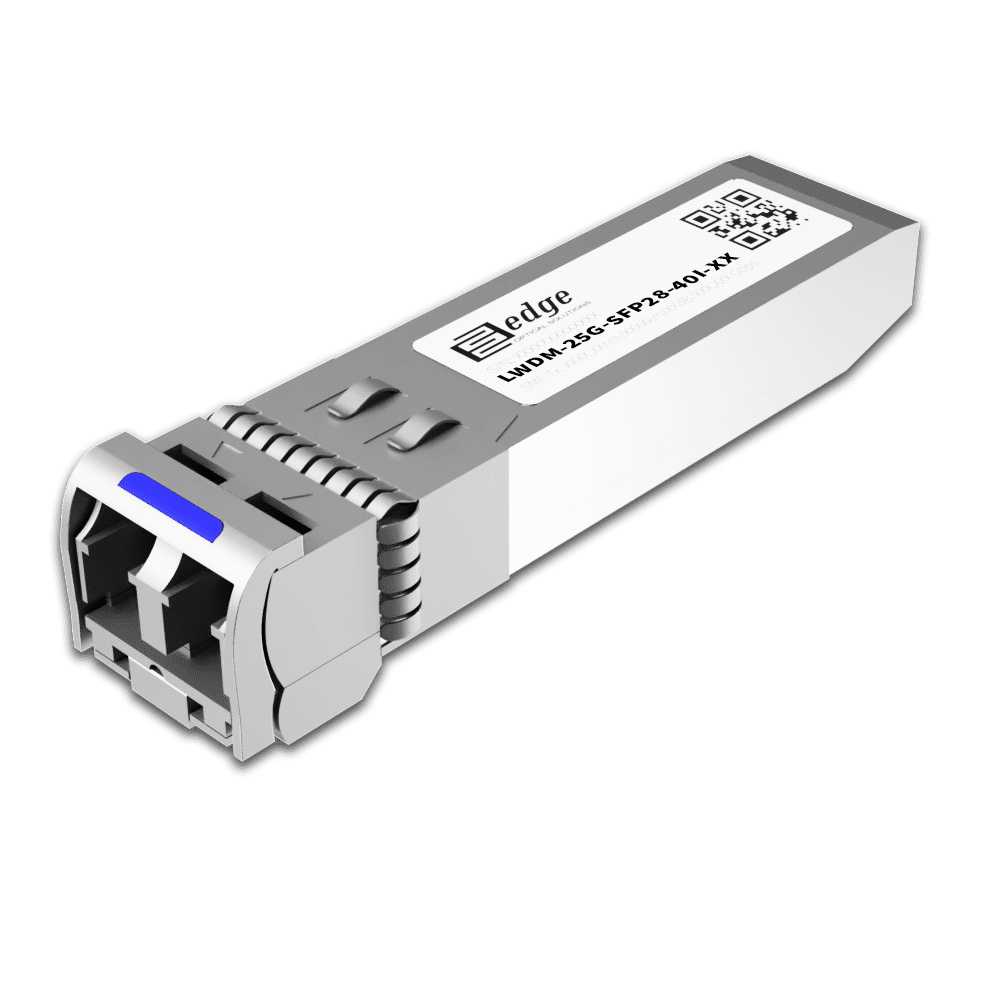

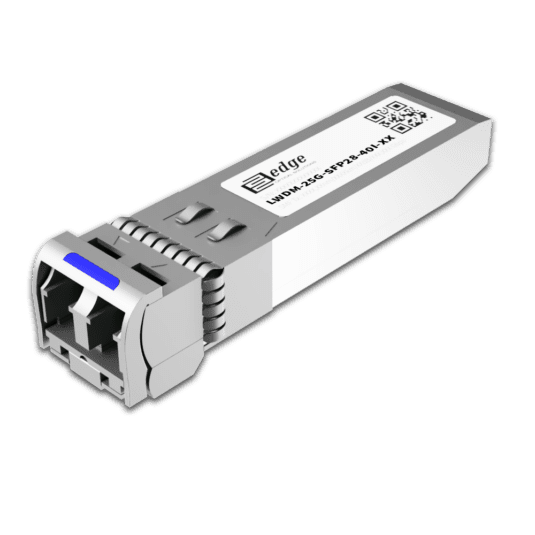

LWDM-25G-SFP28-40I-XX

MSA Compatible LWDM 25GBASE-ER SFP28 Module

LWDM 25G SFP28 Module (Tx/Rx 1277.89-1309.14/1260-1600nm, 2.46-25.78 Gbps, Max. 40km over SMF, 24 dB, Temp. -40 to 85C)

420.42

SKU: LWDM-25G-SFP28-40I-XX-MS
Shipping:Below 1 Week in EU Countries

Similar products:

Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

Connectors:

Double LC

TX Wavelength:

1277.89-1309.14nm

RX Wavelength:

1260-1600nm

Minimum Optical Budget:

24 dB

Maximum Distance:

30km (w/o FEC), 40 km (FEC)

Supported Data Rate:

2.46-25.78 Gbps

Supported Applications:

25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps)

DDM/DOM:

Supported

Forward Error Correction (FEC):

Host FEC Supported

Transmitter Type:

EML Laser

Tx Wavelength Bandwidth:

2.1 nm (LAN WDM)

Average Launch Power (Min) Each Lane:

-3 dBm

Average Launch Power (Max) Each Lane:

6 dBm

Extinction Ratio (Min):

7 dB

Receiver Type:

APD Photodiode

Rx Wavelength Bandwidth:

2.1 nm (LAN WDM)

Average Receiver Sensitivity (Min) Each Lane:

-27 dBm

Average Receiver Sensitivity (Max) Each Lane:

-5 dBm

Receiver Overload:

-5 dBm

Temperature Range:

Standard 0°-70°C

Storage Temperature:

-40° to 85°C

Relative Humidity:

5 to 85%

Power Consumption:

≤1.8W

Power:

+3.3V single power supply

Compliance:

25GBASE-ER, CE, CPRI-3/5/7, IEEE 802.3, INF-8074i, RoHS, SFP28 MSA

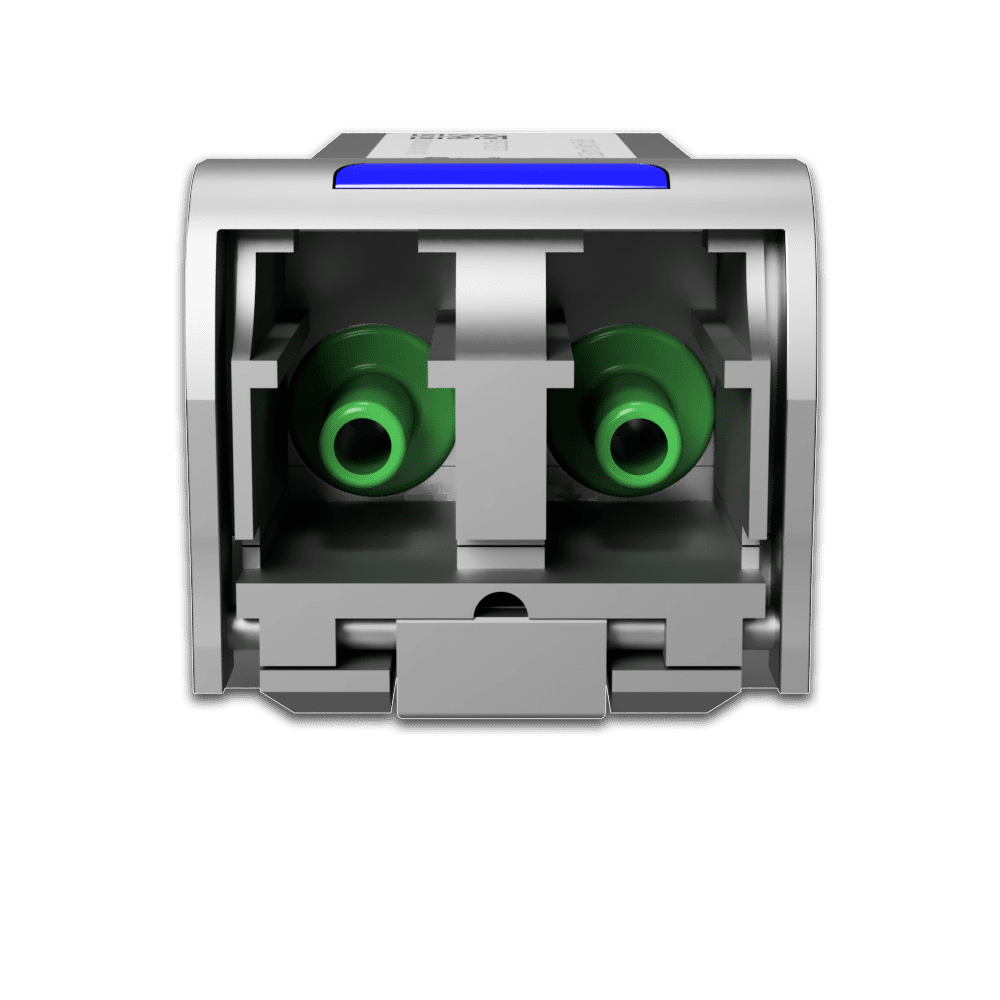

LWDM-25G-SFP28-40I-XX is a LAN WDM Ch. 277 – Ch. 309 (1277.89nm – 1309.14nm) 25GBASE-ER Multi-Vendor MSA Compatible SFP28 (Small Form-Factor Pluggable 28) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 24 dB, which in most cases is enough to reach 40 km over OS2 fiber with FEC and 30km without FEC. However, distance is just indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. LWDM-25G-SFP28-40I-XX uses top quality EML transmitter and 25Gb/s APD (Avalanche photodiode) receiver. LWDM-25G-SFP28-40I-XX LWDM Ch. 277 – Ch. 309 (1277.89nm – 1309.14nm) 25GBASE-ER supports DDM/DOM optical diagnostics, operates in Industrial -40° to 85°C temperature range and has Double LC interface. LWDM-25G-SFP28-40I-XX LWDM Ch. 277 – Ch. 309 (1277.89nm – 1309.14nm) 25GBASE-ER SFP28 support 2.46-25.78 Gbps data rate and is designed for 25G Ethernet (25.78 Gbps), 10G Ethernet (10.31 Gbps) applications and CPRI option 10 standards. LWDM-25G-SFP28-40I-XX LWDM Ch. 277 – Ch. 309 (1277.89nm – 1309.14nm) 25GBASE-ER SFP28 transceiver is CE/RoHS certified and is compliant with product safety standards. LWDM-25G-SFP28-40I-XX is fully compliant to SFF-8431 and SFF-8472 Multi Source Agreement (MSA), IEEE 802.3by 25 Gb/s specification.
