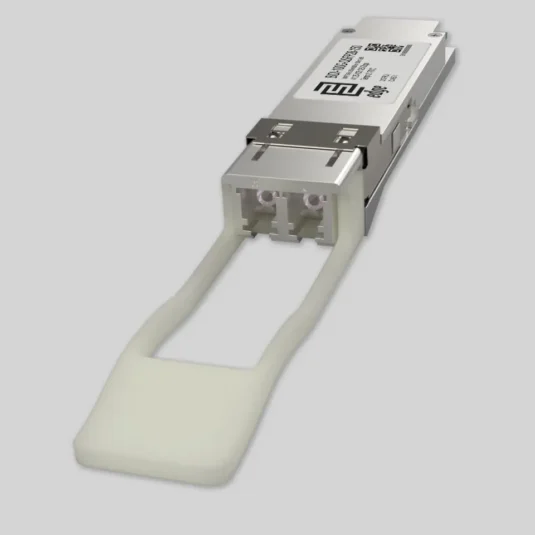

FN-TRAN-QSFP28-BIDI

Fortinet Compatible FN-TRAN-QSFP28-BIDI 100G BIDI QSFP28 SR Module:

# Key Highlights
  • Type:QSFP28
  • Compatibility: Fortinet Compatible
  • Tx/Rx Wavelength: 850 nm. / 900 nm.
  • Laser: VSCEL Laser
  • Fiber Type: Multi-Mode Fiber (MMF)
  • Connectors: Double LC
  • Optical Budget: 1.9dB
  • Max. Distance: 150m(OM5), 100m(OM4), 70m (OM3)
  • Data Rate: 103.125 Gbps
  • FEC Forward Error Correction: Supported
  • DDM/DOM: Supported
  • Power Consumption: 4W
  • Temperature: 10° – 60°C
# Pricing & Ordering
SKU: BIDI-100G-QSFP28-151-FO

390.39

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Connectors:

TX Wavelength:

RX Wavelength:

Minimum Optical Budget:

Maximum Distance:

Supported Data Rate:

Supported Applications:

DDM/DOM:

CDR (Clock and Data Recovery) chip

Forward Error Correction (FEC):

Transmitter Type:

Tx Wavelength Bandwidth:

Transmit Power Per Lane (Min):

-6.2 dBm

Transmit Power Per Lane (Max):

4 dBm

Receiver Type:

Rx Wavelength Bandwidth:

Average Receiver Sensitivity (Min) Each Lane:

-8.2 dBm

Receiver Overload:

Temperature Range:

Storage Temperature:

Relative Humidity:

Power Consumption:

Power:

Compliance:

, , , , , ,

# Product Documentation
BIDI-100G-QSFP28-151 Datasheet

Fortinet Compatible FN-TRAN-QSFP28-BIDI QSFP28 Module is based on our product BIDI-100G-QSFP28-151. When You will order it will be encoded to be compatible with Fortinet equipment and it will be labeled with part number: BIDI-100G-QSFP28-151-FO, where FO means Fortinet Compatible. Above You can download data-sheet of our BIDI-100G-QSFP28-151 product.

# Product Description

The FN-TRAN-QSFP28-BIDI is a Fortinet Compatible 100GBASE SR BiDi QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of multi-mode optical fiber providing two optical communication lanes. Module has minimum guaranteed optical budget of 1.9 dB which in most cases is enough to reach 150 meters distance over OM5 multi-mode optical cable. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. The Fortinet compatible transceiver uses VSCEL laser transmitters and PIN Photodiode. It integrates four electrical data lanes in each direction at 25Gbps (NRZ modulation), which are converted to 2x50Gbps PAM4 modulation lines giving an aggregated bandwidth of 100Gbps per line. Module support DDM/DOM optical diagnostics, which provide diagnostic information about the present operating conditions. Additionally, module supports FEC (Forward Error Correction) function which will help receiving side detect and correct bit errors and improve the overall quality of the link. Module operates in 10°-60°C temperature range and has double LC connectors.

Fortinet 100GBASE SR BIDI supports 103.125 Gbps data rate and such applications as 100G Ethernet (103.125Gbps). Optical transceiver is designed for Data Center Applications and provides benefit to migrate from 10G to 100G data rates between switches and servers without the need to replace optical fiber infrastructure in the Datacenter.

FN-TRAN-QSFP28-BIDI is CE/RoHS certified and it is Compliant with product safety standards. It is fully compliant to QSFP28 Multi Source Agreement (MSA), IEEE 802.3bm. We perform compatibility tests for Fortinet compatible BIDI 100G SR module with latest platforms of Fortinet networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Fortinet platforms. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and QSFP28 transceiver EEPROM memory data validation tests. For more info don’t hesitate to Contact Us.
