980-9I13Y-00E030

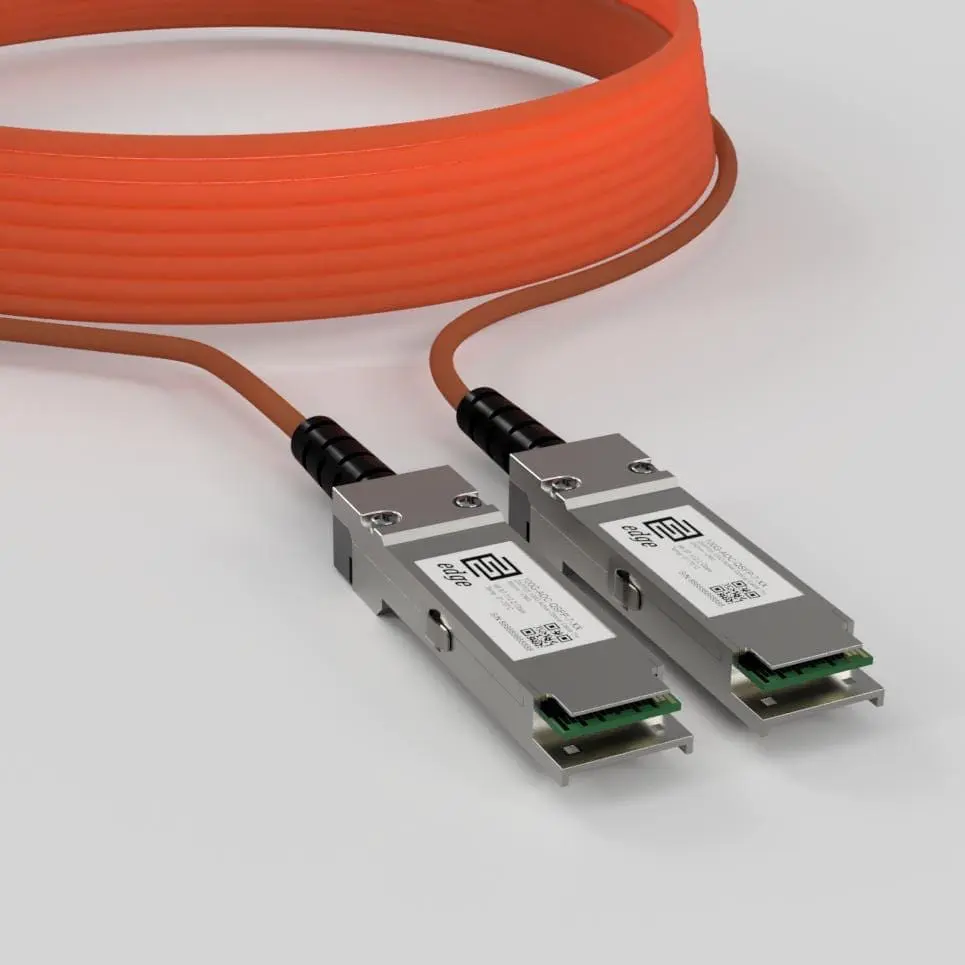

980-9I13Y-00E030 Nvidia compatible 100G QSFP28 30m AOC Cable
# Key Highlights
- Type: 100G Active Optical Cable
- Compatibility: Nvidia compatible
- Tx/Rx: 850 nm
- Media Type: Multi-Mode Fiber (MMF)
- Lenght: 30m
- Data Rate: 96.97-112.2 Gbps
- Temperature: Standard 0°-70°C
- Low Power Consumption: 3.5W (Typical)
# Pricing & Ordering
SKU: 100G-AOC-QSFP-30-NV
€118.62
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Multi-Mode Fiber (MMF) |
|---|---|
| DAC Cable Type: | OM3 |
| TX Wavelength: | 850 nm. |
| RX Wavelength: | 850 nm. |
| Transmitter Type: | VSCEL Laser |
| Receiver Type: | PIN photodiode |
| Maximum Distance: | 30m |
| Supported Data Rate: | 96.97-112.2 Gbps |
| Supported Applications: | 4 x InfiniBand EDR(96.97Gbps), 100G Ethernet (103.125Gbps), 4x 32G Fiber Channel (112.2Gbps), OTU4 (112Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | QSFP |
| Power: | +3.3V single power supply |
| Power Consumption: | 3.5W |
| MTBF: | 1 000 000 Hours |
| Compliance: | CE, IEEE 802.3ba, QDR InfiniBand, QSFP28 MSA, RoHS, SFF-8436, SFF-8665 |
# Product Documentation
Multi-Vendor MSA Compatible 100G-AOC-QSFP Datasheet
Nvidia Compatible 980-9I13Y-00E030 100G Active Optical Cable is based on our product 100G-AOC-QSFP. When You will order it will be encoded to be compatible with Nvidia equipment and it will be labeled with part number: 100G-AOC-QSFP-30-NV, where NV means Nvidia Compatible. Above You can download datasheet of our 100G-AOC-QSFP product.
# Product Description
980-9I13Y-00E030 is Nvidia compatible 30 meters 100G Active Optical Cable, operating over Multi-Mode Fiber (MMF). 100G Active Optical Cable is equipped with MSA standard compatible QSFP28 transceiver assembly at each end of cable. Our compatible Nvidia X2A0 100G QSFP28 30m AOC Cable uses 4 x 850nm VCSEL transmitters and 4 x PIN photo-detector receivers operating over 4 parallel data lanes of OM3 MMF cable. Our Nvidia compatible 100G Active Optical Cable supports 96.97-112.2 Gbps data rate and primarly is used in such applications as 100G Ethernet (100.125Gbps), however AOC cable chipset additionally can support 4 x InfiniBand EDR(96.97Gbps), 4x 32G Fiber Channel (112.2Gbps) and OTU4 (112Gbps) applications. Most popular applications of 100G Active Optical Cable are cost effective close range interconnections within equipment room of telecom operators or data centers, interconnecting LAN or SAN applications with speeds up to 100G and in up to 5 meters distance range.
980-9I13Y-00E030 Nvidia compatible X2A0 100G QSFP28 30m AOC Cable is based on our 100G-AOC-QSFP-30 product, which is fully compliant with QSFP28 Multi Source Agreement (MSA) SFF-8665 standard, product safety standards and is CE/RoHS certified. We perform compatibility tests for our Nvidia compatible Active Optical Cable with the most recent Nvidia networking equipment platforms, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly with Nvidia platforms! Because we are committed to providing high-quality service, we conduct rigorous quality checks before delivering our products. As a result, we perform optical parameter measurements, connector cleanness tests, and EEPROM memory data validation tests on our products. Feel free to Contact us – We will gladly learn about your needs and provide you with the best alternative of our Nvidia 100G compatible Active Optical Cable!
