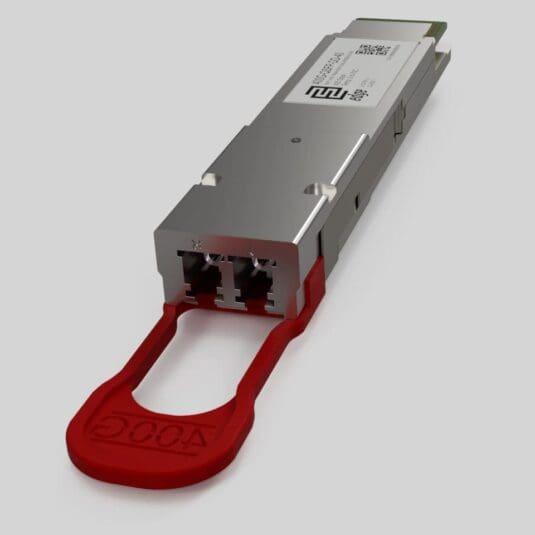

400GBASE-ER8 QSFP-DD Compatible Transceiver: 400G-QSFP-DD-40

QSFP-DD
400G
Duplex
40 km
LWDM 8 Ch
400GBASE-ER8 QSFP-DD Compatible Transceiver

400GBASE-ER8 QSFP-DD Transceiver Overview

The 400G-QSFP-DD-40 is a 400GBASE-ER8 QSFP-DD transceiver built for 40 km reach over single-mode fiber. Eight LAN WDM wavelengths spanning 1273.54 to 1309.14 nm carry a 425 Gbps aggregate across an 8-lane 400GAUI-8 electrical interface using PAM4 modulation, with an 18 dB average link budget, an EML transmitter and a PIN photodiode receiver. Dual LC/UPC duplex connectors, DDM/DOM monitoring and host FEC support round out the design. The module follows IEEE 802.3bs-2017 for the base 400 Gigabit Ethernet architecture and 400GAUI-8 electrical interface, with IEEE 802.3cn-2019 defining the 400GBASE-ER8 PMD and its 40 km reach.

  • Media Type: Single-Mode Fiber (SMF)
  • Connector: Double LC/UPC
  • Fiber Count: Duplex
  • Maximum Distance: 40 km
  • Average Link Budget: 18 dB
  • Tx Wavelength: LWDM 8 Ch
  • Supported Data Rate: 425 Gbps
  • DDM/DOM: Supported
  • Forward Error Correction (FEC): Host FEC Supported
  • Temperature Range: Standard 0°-70°C

400GBASE-ER8 QSFP-DD Pricing

SKUSKU:400G-QSFP-DD-40-MS
Lead timeMade to Order - 2 Weeks
Standard recommended retail price ex VAT:
€3351.60
Choice of 0+
Telecoms & Integrators Globally

400GBASE-ER8 QSFP-DD Compatible Transceiver Specification

Form Factor
QSFP-DD
Modulation
PAM4 (Pulse Amplitude Modulation 4-level)
Media Type
Single-Mode Fiber (SMF)
Connector
Double LC/UPC
Fiber Count
Duplex
Maximum Distance
40 km
Average Link Budget
18 dB
TX Wavelength
8-channel LAN WDM (1273.54/1277.89/1282.26/1286.66/1295.56/1300.05/1304.58/1309.14 nm)
RX Wavelength
8-channel LAN WDM (1273.54/1277.89/1282.26/1286.66/1295.56/1300.05/1304.58/1309.14 nm)
Supported Data Rate
425 Gbps
Supported Ethernet Applications
400G Ethernet (425 Gbps)
DDM/DOM
Supported
Forward Error Correction (FEC)
Host FEC Supported
Transmitter Type
EML Laser
Tx Wave Bandwidth
37.64 nm
Average Launch Power (Min) Each Lane
-0.6 dBm
Average Launch Power (Max) Each Lane
5.6 dBm
Extinction Ratio (Min)
6 dB
Receiver Type
PIN photodiode
RX Wave Bandwidth
37.64 nm
Average Receiver Sensitivity (Min) Each Lane
-18.6 dBm
Average Receiver Sensitivity (Max) Each Lane
-4.4 dBm
Receiver Overload
-3.4 dBm
Temperature Range
Standard 0°-70°C
Storage Temperature
-40° to 85°C
Relative Humidity
5 to 85%
Power Consumption (Max)
15.4 W
Power
+3.3V single power supply
Compliance
CE;RoHS;Class 1 FDA and IEC60825-1 Laser Safety Compliant;100G Lambda MSA;400GBASE-ER8;IEEE 802.3bs;CMIS V4.0;QSFP-DD MSA

400GBASE-ER8 QSFP-DD Compatible Transceiver Datasheet

v3

Complete technical specifications and product details

Updated:Nov 5, 2026Format:PDF

400GBASE-ER8 QSFP-DD Compatible Transceiver Description

The 400G-QSFP-DD-40 is a 400GBASE-ER8 QSFP-DD transceiver built for 40 km links over single-mode fiber. It uses eight LAN WDM channels at 1273.54, 1277.89, 1282.26, 1286.66, 1295.56, 1300.05, 1304.58 and 1309.14 nm, carrying a 425 Gbps aggregate across an 8-lane 400GAUI-8 electrical interface using PAM4 modulation. Average link budget is 18 dB, with an EML transmitter and PIN photodiode receiver. Average launch power per lane runs minus 0.6 to 5.6 dBm with a 6 dB minimum extinction ratio, and average receiver sensitivity per lane is minus 18.6 to minus 4.4 dBm.

The transceiver follows IEEE 802.3bs-2017, the base 400 Gigabit Ethernet architecture standard that defines the 400GAUI-8 electrical interface and the 400GBASE-R PCS. IEEE 802.3cn-2019 builds on that architecture to define the 400GBASE-ER8 PMD itself, including its 40 km reach over single-mode fiber. The module also meets the QSFP-DD MSA mechanical and electrical specification, reports management and control data per CMIS V4.0, and aligns with the 100G Lambda MSA wavelength plan used across the LWDM optics family.

IEEE 802.3cn-2019 is the amendment that defines 400GBASE-ER8 as an 8-lane LWDM PMD. IEEE has not defined a 400GBASE-ER4 PMD, so 40 km class 400G modules marketed under an ER4 designation are vendor or MSA based extensions rather than an IEEE 802.3cn reach class. This module shares its 8-channel LWDM grid, 1273.54 to 1309.14 nm, with 400GBASE-LR8 parts built for a 10 km reach class at a lower link budget. The two reach classes differ in link budget and target distance, not wavelength plan.

This module reports Host FEC Supported rather than carrying its own FEC engine, so reaching the full 40 km distance assumes FEC is enabled on the host side. Standard operating temperature is rated 0 to 70 degrees C, storage spans minus 40 to 85 degrees C, and relative humidity runs 5 to 85 percent. Power draw tops out at 15.4 W from a single 3.3V supply. DDM and CDR are both supported for per-lane optical visibility and signal recovery.

The transceiver is QSFP-DD MSA and CMIS V4.0 compliant, with EEPROM that can be programmed for host recognition. Verify the encoding option against the target vendor's compatibility matrix before ordering, since platform acceptance of third party optics varies by vendor and firmware release. The module carries CE and RoHS marking and is Class 1 rated under FDA and IEC 60825-1 laser safety requirements.

The 400G-QSFP-DD-40 is a 400GBASE-ER8 QSFP-DD module built to the IEEE 802.3cn-2019 standard and the QSFP-DD MSA specification. For volume pricing or vendor specific EEPROM coding, contact our sales team.

Frequently Asked Questions

What is the difference between 400GBASE-ER8 and 400GBASE-ER4?

400GBASE-ER8 uses 8 LAN WDM lanes across 1273.54 to 1309.14 nm with an 18 dB link budget and relies on host side FEC. IEEE has not defined a 400GBASE-ER4 PMD, so modules marketed under that name are vendor or MSA based 4-lane LAN WDM designs rather than an IEEE 802.3cn reach class; verify its link budget and FEC architecture against the specific vendor datasheet. IEEE 802.3cn-2019 is the standard that defines the 40 km reach class as 400GBASE-ER8.

Which IEEE standard defines 400GBASE-ER8?

IEEE 802.3cn-2019 defines the 400GBASE-ER8 PMD and its 40 km single-mode fiber reach. It builds on IEEE 802.3bs-2017, which defines the base 400 Gigabit Ethernet architecture, the 400GBASE-R PCS and the 400GAUI-8 electrical interface that 802.3cn-2019 reuses for ER8.

Does 400GBASE-ER8 require host side FEC for the full 40 km reach?

Yes. This module reports Host FEC Supported rather than carrying its own FEC engine, and the 40 km reach assumes FEC is enabled on the host port. Confirm the host platform's FEC configuration before planning a 40 km link budget.

What is the difference between 400GBASE-ER8 and 400GBASE-LR8?

Both use the same 8 channel LAN WDM grid from 1273.54 to 1309.14 nm. 400GBASE-LR8 targets a 10 km reach class at roughly a 6.3 dB link budget, while 400GBASE-ER8 targets 40 km at an 18 dB link budget. Match the reach class to the link distance rather than the wavelength plan, since both share the same wavelengths.
