SFP-XSM-LC-40K Advantech Compatible 10GBASE-ER SFP+
Advantech compatible SFP-XSM-LC-40K - Key Features
- Compatibility: Advantech
- Media Type: Single-Mode Fiber (SMF)
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 40 km
- Average Link Budget: 15 dB
- Tx Wavelength: 1550 nm
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Advantech SFP-XSM-LC-40K Price
Advantech compatible SFP-XSM-LC-40K Specifications
Form Factor | SFP+ |
Media Type | Single-Mode Fiber (SMF) |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 40 km |
Average Link Budget | 15 dB |
TX Wavelength | 1550 nm |
RX Wavelength | 1550 nm |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supported Ethernet Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
Rx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
Minimum Transmitting Power | -1 dBm |
Maximum Transmitting Power | 4 dBm |
Receiver Sensitivity | -16 dBm |
Receiver Overload | 0 dBm |
Dispersion | 800-1000 ps/nm |
Transmitter Type | DFB Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
Advantech compatible SFP-XSM-LC-40K Datasheet
v4Complete technical specifications and product details
Advantech compatible SFP-XSM-LC-40K Description

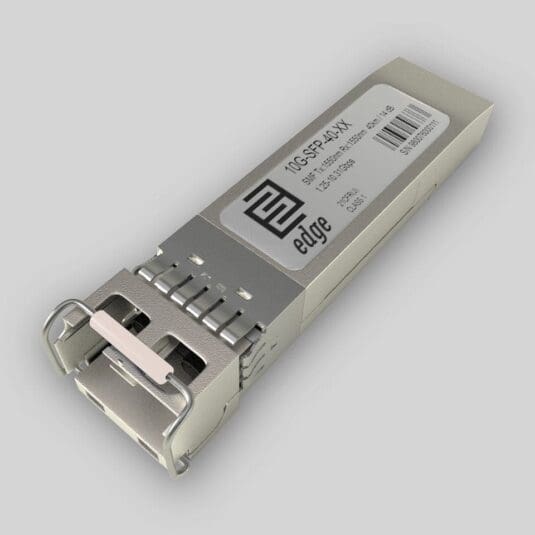

EdgeOptic's SFP-XSM-LC-40K compatible is an Advantech-coded version of the EdgeOptic 10G-SFP-40 multi-vendor 10GBASE-ER SFP+ transceiver. It carries Advantech-recognized EEPROM, so Advantech industrial Ethernet switches and media converters identify the module as a supported part and bring the port up without manual overrides. One universal 10GBASE-ER design serves multiple vendor codes across the EdgeOptic catalog; this listing is the Advantech build of it.
The module operates at 1550 nm over duplex single-mode fiber and reaches 40 km on a 15 dB link budget. Transmit power runs between −1 dBm and +4 dBm, receiver sensitivity is rated at −16 dBm, and receiver overload sits at 0 dBm. Chromatic dispersion tolerance spans 800 to 1000 ps/nm, which keeps the link inside spec over standard G.652 single-mode plant at the rated reach. Termination is a duplex LC/UPC interface.
Protocol support covers 10 Gigabit Ethernet and Gigabit Ethernet, matching the Ethernet transport role of Advantech industrial switching equipment. The transceiver runs from a single +3.3 V supply across a commercial 0 to 70 °C operating range. Digital optical monitoring is supported per SFF-8472. The module reports module temperature, supply voltage, laser bias current, transmit optical power, and receive optical power in real time over the two-wire interface. Those readings are used during link commissioning to confirm the optical budget end to end, and during operation for fault isolation when a span starts to degrade, so a problem is flagged before it takes the link down.
The module is built to the SFF-8431 SFP+ electrical interface specification and the SFP MSA mechanical form factor, mating with standard duplex LC/UPC patch cords. It carries CE and RoHS marking with Class 1 laser safety per IEC 60825-1. A 40 km 1550 nm ER reach suits data-center site interconnect, metro and carrier access transport, and building-to-building campus backbone links over single-mode fiber that is already in place. The same EEPROM-coded compatible drops into Advantech industrial Ethernet switches and media converters without changing the host configuration.
Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. The SFP-XSM-LC-40K compatible ships next business day from EU stock with a lifetime warranty. For deployment questions or bulk pricing, contact our sales team.
