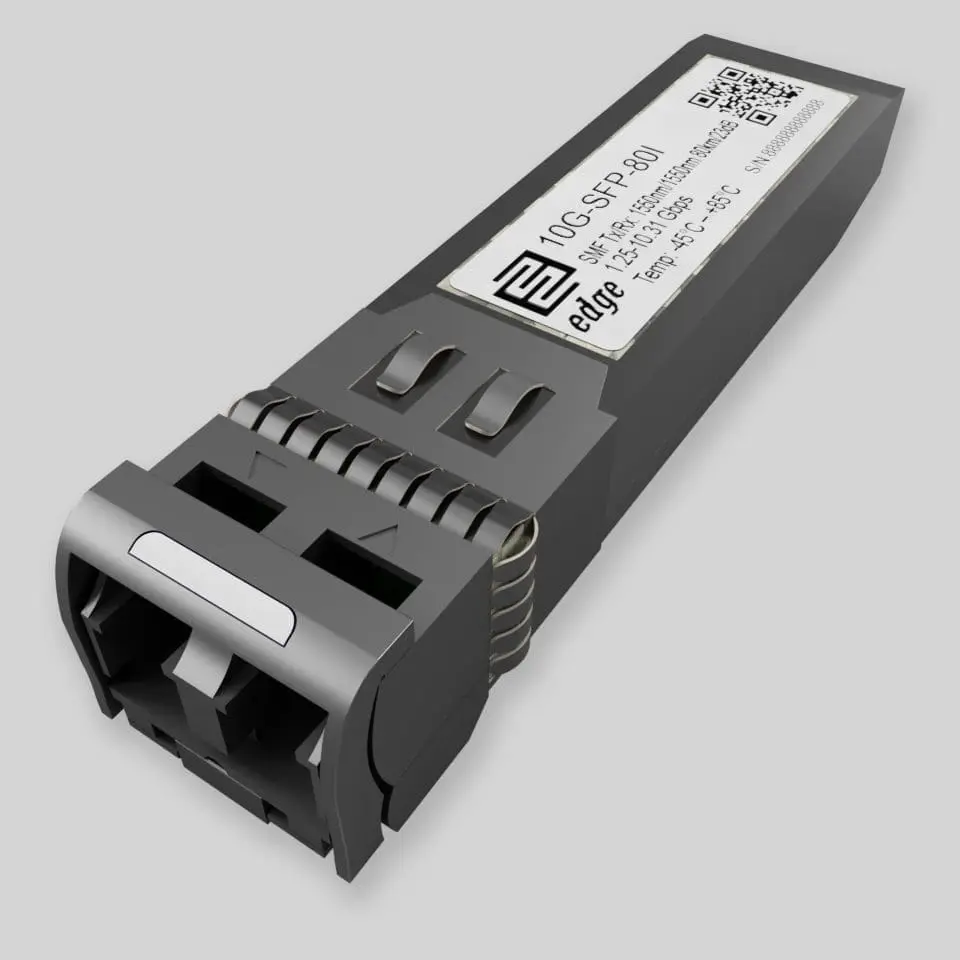

Nokia 3AL82019AA Compatible 10GBASE-ZR SFP+ 80km Module

EdgeOptic's 3AL82019AA compatible is a Nokia (Alcatel-Lucent) coded version of the EdgeOptic 10G-SFP-80 multi-vendor 10GBASE-ZR transceiver. It is a duplex single-mode SFP+ module that carries 10 Gigabit Ethernet over a 1550 nm wavelength to 80 km, programmed with Nokia-recognized EEPROM so the host reads it as a genuine 3AL82019AA. The same EdgeOptic 10GBASE-ZR module ships under multiple vendor codes; this listing is the Nokia variant.

The optics use an EML transmitter and an APD receiver to deliver a 23 dB link budget across the 80 km span. Transmit power runs 0 to +5 dBm and receive sensitivity is better than −24 dBm, with a chromatic dispersion tolerance of 1600 ps/nm. Both transmit and receive operate at 1550 nm over a duplex LC/UPC interface on standard G.652 single-mode fiber. Digital diagnostics monitoring is supported, so transmit power, receive power, laser bias, temperature, and supply voltage are all readable from the host for commissioning and ongoing fault isolation.

The 3AL prefix is the Alcatel-Lucent transport family identifier, and the part is associated with Nokia Wavelite optical transport and DCI equipment that accepts standard SFP+ optics in its client slots. Scope here is the 10 Gigabit Ethernet client optic, which is the role this grey 1550 nm ZR module fills. Verify the slot assignment against the chassis transceiver table for your Wavelite configuration before deployment. The EdgeOptic build is rated for the standard 0 to 70 C commercial range; the OEM 3AL82019AA is offered as an industrial −40 to 85 C part, so for industrial-temperature deployments contact our sales team.

Each module is built to the SFF-8431 SFP+ MSA and carries CE, RoHS, and Class 1 laser safety certification per IEC 60825-1 and the FDA. 10GBASE-ZR is an industry de-facto MSA reach class derived from OC-192/STM-64 optics, not an IEEE 802.3ae mode, so interoperability follows the SFP+ MSA rather than an IEEE clause. Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty. For project pricing or bulk orders, contact our sales team.
