474902A. 101

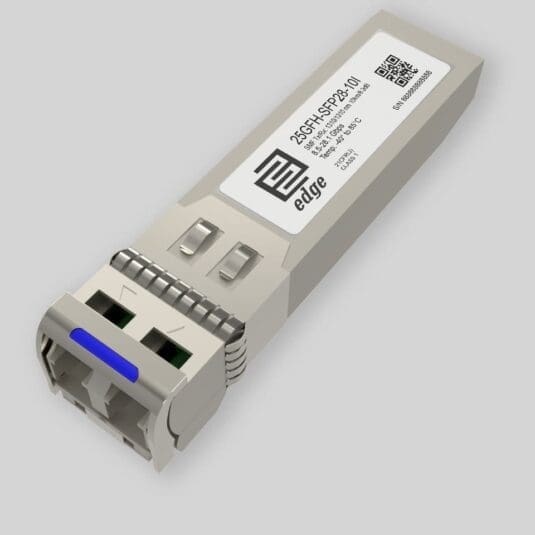

474902A. 101 Nokia Compatible 1310nm DFB,CPRI/eCPRI (24.33Gbps/25.78Gbps) transceiver
# Key Highlights
- Type:SFP28
- Compatibility:Nokia compatible
- Tx/Rx Wavelength:1310 nm. / 1310 nm.
- Laser:DFB Laser
- Fiber Type:Single-Mode Fiber (SMF)
- Connectors:Double LC
- Optical Budget:8.3 dB
- Max. Distance:10km
- Data Rate:8.5-28.1 Gbps
- DDM/DOM:Supported
- Temperature:Industrial -45°C – +85°C
# Pricing & Ordering
SKU: 25GFH-SFP28-10I-FI
€23.61
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1310 nm |
| RX Wavelength: | 1310 nm. |
| Minimum Optical Budget: | 8.3 dB |
| Maximum Distance: | 10km |
| Supported Data Rate: | 8.5-28.1 Gbps |
| Supported Applications: | CPRI option 10 (24.33 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), CPRI option 9 (12.165 Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Industrial -45°C – +85°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 30 nm (1295 – 1325 nm) |
| Rx Wavelength Bandwidth: | 30 nm (1295-1325 nm) |
| Minimum Transmitting Power: | -5 dBm |
| Maximum Transmitting Power: | 2 dBm |
| Receiver Sensitivity: | -13.3 dBm |
| Receiver Overload: | 0.5 dBm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo |
| Compliance: | IEEE 802.3cc, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP MSA |
# Product Documentation
Multi-Vendor MSA Compatible 25GFH-SFP28-10I SFP28 Datasheet
Nokia Compatible 474902A. 101 SFP28 Module is based on our product 25GFH-SFP28-10I. When You will order it will be encoded with Nokia code and it will be labeled with part number: 25GFH-SFP28-10I-NK, where NK means Nokia Compatible. Above You can download datasheet of our 25GFH-SFP28-10I product.
# Product Description
Nokia compatible 474902A. 101 is SFP28 (Small Form-factor Pluggable 28) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has a minimum guaranteed optical budget of 8.3 dB, with in most cases is enough to reach about 10km distance. However, distance is just an indicative parameter calculated for the comfort of identification. Eventually, we calculate distance taking in account the minimal optical budget and average attenuation of optical cabling in the industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN photodiode receiver. 474902A. 101 supports DDM/DOM optical diagnostics, that provide diagnostic information about the present operating conditions. Nokia-compatible 474902A. 101 SFP28 operates in the Industrial -45°C – +85°C temperature range and has a Double LC interface. Nokia compatible 474902A. 101 support 8.5-28.1 Gbps data rate and such applications as CPRI option 10 (24.33 Gbps), CPRI option 9 (12.165 Gbps), CPRI Option 8 (10.138 Gbps), CPRI option 7 (9.830 Gbps). Nokia 474902A. 101 compatible SFP28 Double Fiber optical transceiver is a multi-purpose module used in a number of different places of today’s networking. Consequently, the most popular applications are Mobile Carrier Networks, thus 5G fronthaul and O-RAN (Open Radio Access Network) applications.
Nokia is one of the leading OEM manufacturers in our industry and their products are used by many equipment manufacturers. Our product EEPROM memory will be coded with the necessary information to fully meet Nokia compatibility and will work seamlessly with platforms that support Nokia products. Transceiver is also fully compliant to SFP+ MSA, SFF-8402, SFF-8472, SFF-8431, SFF-8432, IEEE 802.3cc, CE, RoHS-6, Class 1 FDA and IEC60825-1 Laser Safety standard. Transceiver is CE/RoHS certified and is compliant with product safety standards. If You have any other questions about Nokia-compatible items, please do not hesitate to contact Us, we will be happy to assist!
