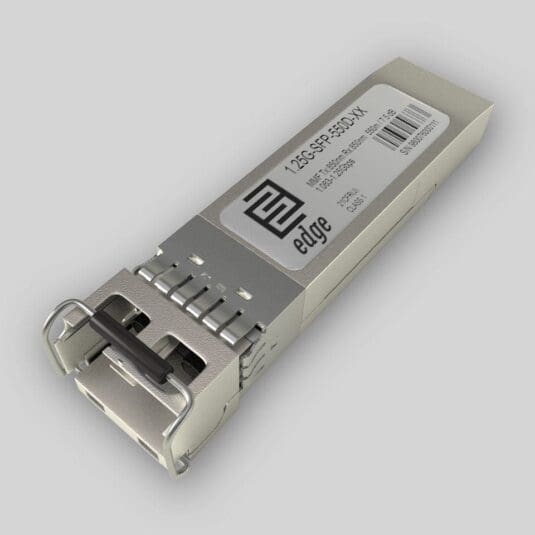

Avago (Broadcom) AFBR-5718APZ Compatible 1000BASE-SX SFP
Avago compatible AFBR-5718APZ - Key Features
- Compatibility: Avago
- Media Type: Multi-Mode Fiber (MMF)
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 550 m
- Average Link Budget: 7.5 dB
- Tx Wavelength: 850 nm
- Supported Data Rate: 1.063 Gbps - 1.25 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Avago AFBR-5718APZ Price
In Stock - Ships Next Business DayAvago compatible AFBR-5718APZ Specifications
Form Factor | SFP |
Media Type | Multi-Mode Fiber (MMF) |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 550 m |
Average Link Budget | 7.5 dB |
TX Wavelength | 850 nm |
RX Wavelength | 850 nm |
Supported Data Rate | 1.063 Gbps - 1.25 Gbps |
Supported Ethernet Applications | Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 1G Fiber Channel (1.0625 Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 20 nm (840-860 nm) |
Rx Wavelength Bandwidth | 20 nm (840-860 nm) |
Minimum Transmitting Power | -9.5 dBm |
Maximum Transmitting Power | 3 dBm |
Receiver Sensitivity | -17 dBm |
Receiver Overload | -3 dBm |
Dispersion | 110 ps/nm ps/nm |
Transmitter Type | VSCEL Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
Avago compatible AFBR-5718APZ Datasheet
v3Complete technical specifications and product details
Avago compatible AFBR-5718APZ Description
EdgeOptic's AFBR-5718APZ compatible is an Avago (Broadcom)-coded version of the EdgeOptic 1.25G-SFP-550D multi-vendor 1000BASE-SX transceiver. It runs Gigabit Ethernet at 1.25 Gbps (IEEE 802.3z) and 1G Fibre Channel SW at 1.0625 Gbps over duplex multimode fiber, with an 850nm VCSEL transmitter and a PIN photodiode receiver.
With a 7.5 dB optical budget, the module reaches 550 m over OM2 multimode fiber (50/125, 500 MHz·km) and 275 m over OM1 (62.5/125). It uses a duplex LC/UPC interface and supports DDM/DOM diagnostics for live monitoring of optical power, laser bias current, and temperature. The module operates over the commercial 0 to 70°C range, built to the INF-8074i SFP MSA, +3.3V supply, CE/RoHS, Class 1 laser safety.
AFBR-5718APZ is an Avago optical-component ordering code, published under the Broadcom brand after Avago acquired Broadcom in 2016 and adopted the Broadcom name. As a component transceiver it ships on many vendors' line cards and switch boards rather than a single equipment platform. EdgeOptic codes the EEPROM with Avago-recognized vendor data so the module drops into designs built around the original part. Verify the exact ordering code for your equipment in the board or system documentation before ordering. Broadcom's own datasheet rates the AFBR-5718APZ to a wider -40 to +85°C operating range; the EdgeOptic compatible ships at the standard 0 to 70°C commercial rating. For an extended-temperature option, contact our sales team.
Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty. For ordering-code confirmation or platform questions, contact our sales team.
