SCLT-1

 1 Channel Single Fiber Passive CWDM Line Termination Unit

1 Channel Single Fiber Passive CWDM Line Termination Unit
# Key Highlights
  • Line Termination of 1 Link
  • Fully Passive: No Power Supply or Cooling
  • MTBF: 100+ Years
  • Protocol & Data Rate neutral
  • Low Insertation Loss: 0.8 dB
  • Compact: LGX Type B package
  • Easy Installation & Expansion
  • 5 Year Warranty
# Pricing & Ordering
SKU: SCLT-1

€84.89

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
Clear
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

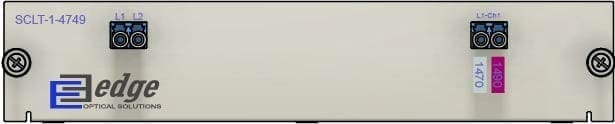

SCLT-1 Front Panel

# Key Technical Data
Product Type:

CWDM One Side (Line Termination) OADM
Number of Optical Channels:

2 CWDM Channels According ITU-T G.694.2
Number of Data Streams:

1
CWDM Add/Drop Channels:

1271/1291 nm, 1311/1331 nm, 1351/1371 nm, 1391/1411 nm, 1431/1451 nm, 1471/1491 nm, 1511/1531 nm, 1551/1571 nm, 1591/1611 nm
Filter Technology:

TFF (Thin Film Filter)
Passband:

± 6.5 nm (λ center)
Channel Spacing:

20 nm
Insertation Loss (Add/Drop Channels):

0.8 dB
Isolation Adjacent Channels:

30 dB
Isolation Non-Adjacent Channels:

40 dB
Channel Pass-band Ripple:

0.3 dB
Polarization Dependent Loss (PDL):

Max: 0.15 dB
Polarization Mode Dispersion (PMD):

Max: 0.15 ps/nm
Directivity:

Min: 50 dB
Return Loss:

Min: 45 dB
Connectors:

LC Adapters for use with TIA/EIA 604-10 compliant LC UPC Connectors
Operating Temperature:

-5~+70 (°C)
Storage Temperature:

-40~+85 (°C)
Relative Humidity:

0 – 90%
Compliance:

CE, ISO, ITU-T G.694.2, RoHS, Telecordia GR-20
# Product Documentation
1 Channel Single Fiber Passive CWDM Line Termination Unit SCLT-1
# Product Description

    1 Channel Single Fiber Passive CWDM Line Termination Unit – SCLT-1 is member of EDGE Optics xWDM Series product line.We designed EDGE Optics xWDM Series products to allow easy, gradual, logical and cost efficient expansion of network bandwidth using industry leading passive WDM technology. Main advantage of xWDM is its passive nature – no power supply or cooling necessary, robustness – no special micro-climate requirements and as passive element, it has MTBF 100+ Years. xWDM is – it is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. It’s simple to install, requires no configuration or maintenance.

SCLT-1 is passive 1-side Optical Add-Drop Multiplexer (OADM) package based on Thin-Film Filter (TFF) technology, allowing extract 1 data stream (2 wavelengths) from ITU-T G.694.2 compatible Coarse Wavelength Division Multiplex (CWDM) link. SCLT-1 acts as one side termination unit, meaning that link with is extracted in site where SCLT-1is installed, is not added towards other side of CWDM link. SCLT-1 is manufactured as LGX type B module, installed in 19” 1U sub rack fitting any standard equipment rack.
