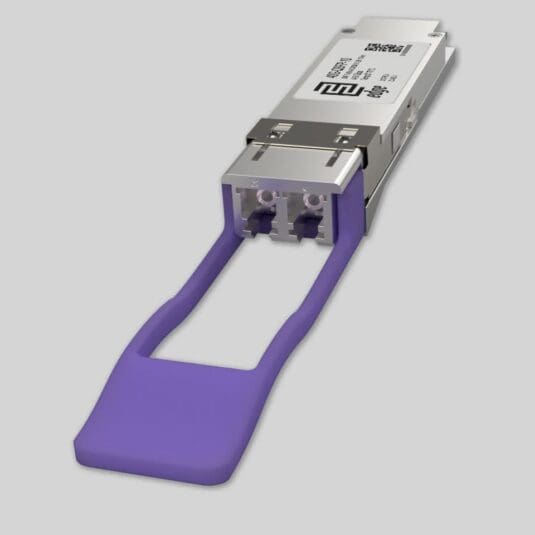

Chelsio SM40G-LR Compatible 40GBASE-LR4 QSFP+ 10km Transceiver
Chelsio compatible SM40G-LR - Key Features
- Compatibility: Chelsio
- Media Type: Single-Mode Fiber (SMF)
- Connector: Double LC/UPC
- Fiber Count: Duplex
- Maximum Distance: 10 km
- Average Link Budget: 6.6 dB
- Tx Wavelength: CWDM 4 Ch
- Supported Data Rate: 44.8 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Chelsio SM40G-LR Price
Chelsio compatible SM40G-LR Specifications
Form Factor | QSFP+ |
Modulation | NRZ (Non-Return to Zero) |
Media Type | Single-Mode Fiber (SMF) |
Connector | Double LC/UPC |
Fiber Count | Duplex |
Maximum Distance | 10 km |
Average Link Budget | 6.6 dB |
TX Wavelength | 4-channel CWDM (1271/1291/1311/1331 nm) |
RX Wavelength | 4-channel CWDM (1271/1291/1311/1331 nm) |
Supported Data Rate | 44.8 Gbps |
Supported Ethernet Applications | 40G Ethernet (41.25Gbps) |
Optical Transport Network (OTN) Applications | OTU3 (43.01Gbps), OTU3e2 (44.58Gbps) |
SDH/SONET Standards | STM-256 (39.81 Gbps) |
DDM/DOM | Supported |
Transmitter Type | DFB Laser |
Tx Wave Bandwidth | 4 WDM Seperated 1310nm Lanes (13 nm (1271, 1291, 1311, 1331)) |
Average Launch Power (Min) Each Lane | -6 dBm |
Average Launch Power (Max) Each Lane | 3 dBm |
Receiver Type | PIN photodiode |
Average Receiver Sensitivity (Min) Each Lane | -12.6 dBm |
Average Receiver Sensitivity (Max) Each Lane | 3 dBm |
Receiver Overload | 3 dBm |
Temperature Range | Standard 0°-70°C |
Storage Temperature | -40° to 85°C |
Relative Humidity | 5 to 85% |
Power | +3.3V single power supply |
Compliance | IEEE 802.3ba, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8438i, QSFP+ MSA, RoHS, SFF-8436 |
Chelsio compatible SM40G-LR Datasheet
v2Complete technical specifications and product details
Chelsio compatible SM40G-LR Description
EdgeOptic's SM40G-LR compatible is a Chelsio-coded version of the EdgeOptic 40G-QSFP-10 multi-vendor 40GBASE-LR4 transceiver. It carries Chelsio-recognized EEPROM so the module identifies cleanly in Chelsio T5 and T6 ASIC Unified Wire 40-Gigabit Ethernet adapters. Verify the part against your Chelsio adapter compatibility guide before deployment.
The module is a QSFP+ 40GBASE-LR4 optic built for 10 km over duplex single-mode fiber on an LC/UPC connector. It multiplexes four CWDM lanes at 1271, 1291, 1311 and 1331 nm using DFB lasers, with a PIN photodiode receiver. Per-lane launch power runs −6 to +3 dBm and receiver sensitivity is −12.6 dBm, with an RX overload of +3 dBm, giving an average link budget of 6.6 dB. The module operates across 0 to 70 °C.
It conforms to IEEE 802.3ba Clause 87 for 40GBASE-LR4 and to the QSFP+ MSA (INF-8438i, SFF-8436), with DOM/DDM reporting for real-time monitoring of temperature, supply voltage, laser bias, and optical TX/RX power. This is an Ethernet transceiver for Chelsio NIC deployments; it does not carry OTN or SONET/SDH transport rates.
Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty. For volume pricing or deployment questions, contact our sales team.
