XCVR-A40U31

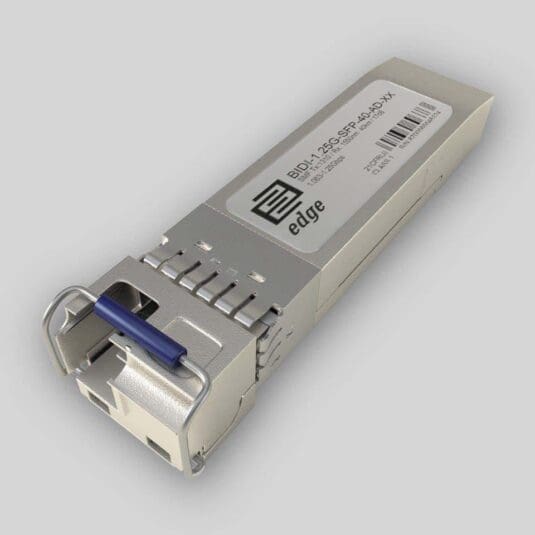

Ciena compatible XCVR-A40U31 SFP Module
# Key Highlights
- Type: SFP
- Compatibility: Ciena compatible
- Tx/Rx Wavelength: 1310 nm. / 1550 nm.
- Media Type: Single-Mode Fiber (SMF)
- Optical Budget: 17 dB
- Max. Distance: 40 km
- Data Rate: 1.063-1.25Gbps
- Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: BIDI-1.25G-SFP-40-AD-CN
€8.03
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1310 nm. |
| RX Wavelength: | 1550 nm. |
| Minimum Optical Budget: | 17 dB |
| Maximum Distance: | 40km |
| Supported Data Rate: | 1.063-1.25Gbps |
| Supported Applications: | Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Single LC |
| Tx Wavelength Bandwidth: | 40 nm (1290-1330 nm) |
| Rx Wavelength Bandwidth: | 40 nm (1530-1570 nm) |
| Minimum Transmitting Power: | -6 dB |
| Maximum Transmitting Power: | 0 dB |
| Receiver Sensitivity: | -23 dBm |
| Receiver Overload: | -3 dBm |
| Dispersion: | 300-400 ps/nm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
| Transceiver Type: | SFP |
# Product Documentation
Multi-Vendor MSA Compatible BIDI-1.25G-SFP-40-AD SFP Datasheet
Ciena Compatible XCVR-A40U31 SFP Module is based on our product BIDI-1.25G-SFP-40-AD. When You will order it will be encoded to be compatible with Ciena equipment and it will be labeled with part number: BIDI-1.25G-SFP-40-AD-CN, where CN means Ciena Compatible. Above You can download datasheet of our BIDI-1.25G-SFP-40-AD product.
# Product Description
Ciena compatible XCVR-A40U31 is SFP (Small Form factor Pluggable) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 17 dB, with in most cases is enough to reach about 40 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1310 nm. and 1550 nm. PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Ciena compatible XCVR-A40U31 operates in Standard 0°-70°C temperature range and has Single LC interface. SFP support 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps)|1G Fiber Channel (1.0625 Gbps). SFP Single Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprice LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Ciena compatible XCVR-A40U31 SFP Transceiver with latest platforms of Ciena networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Ciena platforms. However, our optical transceivers are compliant to SFP Multi Source Agreement INF-8074i industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and SFP transceiver EEPROM memory data validation tests.
