XCVR-S80V55

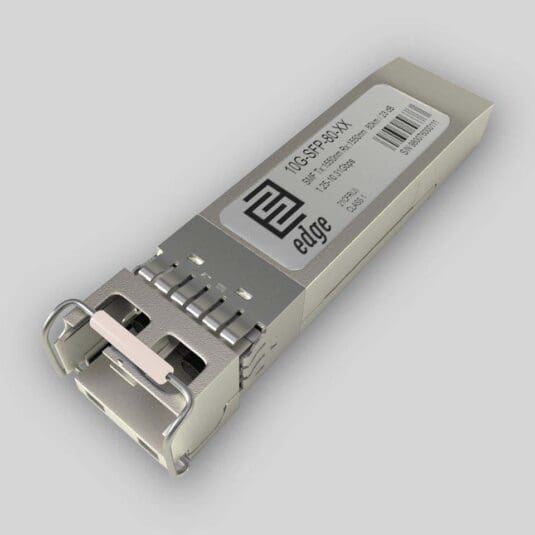

Ciena compatible XCVR-S80V55 SFP+ Module
# Key Highlights
- Type: SFP+
- Compatibility: Ciena compatible
- Tx/Rx Wavelength: 1550 nm. / 1550 nm.
- Media Type: Single-Mode Fiber (SMF)
- Optical Budget: 23 dB
- Max. Distance: 80 km
- Data Rate: 1.25-10.31 Gbps
- Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 10G-SFP-80-CN
€94.13
Lead Time: Next Business Day from Order Confirmation
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1550 nm. |
| RX Wavelength: | 1550 nm. |
| Minimum Optical Budget: | 23 dB |
| Maximum Distance: | 80km |
| Supported Data Rate: | 1.25-10.31 Gbps |
| Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), STM-64 (9.95Gbps) |
| DDM/DOM: | Support |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 37 nm (1528-1565 nm) |
| Rx Wavelength Bandwidth: | 37 nm (1528-1565 nm) |
| Minimum Transmitting Power: | 0 dB |
| Maximum Transmitting Power: | 4 dB |
| Receiver Sensitivity: | -23 dBm |
| Receiver Overload: | -8 dBm |
| Dispersion: | 1600 ps/nm |
| Transmitter Type: | EML Laser |
| Receiver Type: | APD Photodiode |
| Power: | +3.3V single power supply |
| Chipset: | MAXIM, MINDSPEED, SEMTECH |
| Compliance: | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8431, SFP MSA |
| Transceiver Type: | SFP+ |
# Product Documentation
Multi-Vendor MSA Compatible 10G-SFP-80 SFP+ Datasheet
Ciena Compatible XCVR-S80V55 SFP+ Module is based on our product 10G-SFP-80. When You will order it will be encoded to be compatible with Ciena equipment and it will be labeled with part number: 10G-SFP-80-CN, where CN means Ciena Compatible. Above You can download datasheet of our 10G-SFP-80 product.
# Product Description
Ciena compatible XCVR-S80V55 is SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 23 dB, with in most cases is enough to reach about 80 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1550 nm. and 1550 nm. APD Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Ciena compatible XCVR-S80V55 operates in Standard 0°-70°C temperature range and has Double LC interface. SFP+ support 1.25-10.31 Gbps data rate and such applications as 10G Ethernet (10.31 Gbps)|Gigabit Ethernet (1.25 Gbps)|STM-64 (9.95 Gbps). SFP+ Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber To The Home routing and switching equipment, Mobile operator core and backhaul SDH/SONET applications, Data Center networking for Ethernet connections and other optical links.
Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Ciena compatible XCVR-S80V55 SFP+ Transceiver with latest platforms of Ciena networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Ciena platforms. However, our optical transceivers are compliant to SFP+ Multi Source Agreement SFF-8431 industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and SFP+ transceiver EEPROM memory data validation tests.
