GLC-ZX-SM

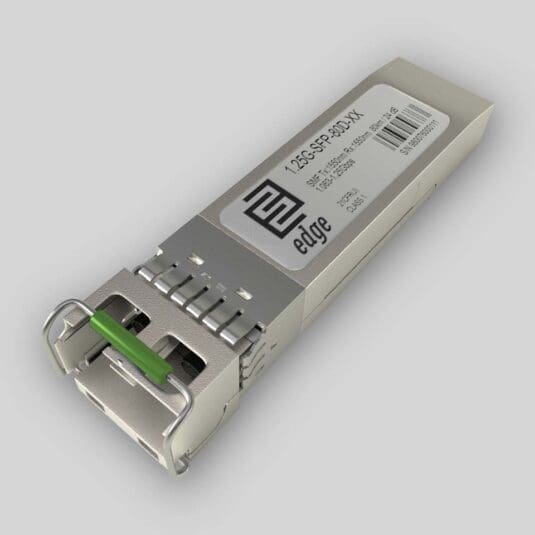

GLC-ZX-SM Cisco Compatible 1G 80KM SMF SFP Transceiver

# Key Highlights
  • Type: SFP
  • Compatibility: Cisco compatible
  • Tx/Rx Wavelength: 1550 nm. / 1550 nm.
  • Media Type: Single-Mode Fiber (SMF)
  • Optical Budget: 24 dB
  • Max. Distance: 80 km
  • Data Rate: 1.063-1.25Gbps
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 1.25G-SFP-80D-CI

15.26

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1550 nm.

RX Wavelength:

1550 nm.

Minimum Optical Budget:

24 dB

Maximum Distance:

80km

Supported Data Rate:

1.063-1.25Gbps

Supported Applications:

Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)

DDM/DOM:

Support

Temperature Range:

Standard 0°-70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

37 nm (1528-1565 nm)

Rx Wavelength Bandwidth:

37 nm (1528-1565 nm)

Minimum Transmitting Power:

0 dB

Maximum Transmitting Power:

5 dB

Receiver Sensitivity:

-24 dBm

Receiver Overload:

-3 dBm

Dispersion:

1600 ps/nm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type:

SFP

# Product Documentation
Multi-Vendor MSA Compatible 1.25G-SFP-80D SFP Datasheet

Cisco Compatible GLC-ZX-SM SFP Module is based on our product 1.25G-SFP-80D. When You will order it will be encoded to be compatible with Cisco equipment and it will be labeled with part number: 1.25G-SFP-80D-CI, where CI means Cisco Compatible. Above You can download Cisco GLC ZX SM datasheet of our 1.25G-SFP-80D product.

# Product Description

   Our Compatible Cisco GLC ZX SM datasheet is based on our product 1.25G-SFP-80D, which has the same specifications and is manufactured in accordance with the same industry standards. The Cisco compatible GLC-ZX-SM module is intended for use with Double Fiber Single-Mode Fiber (MMF) optical cable. It has a minimum guaranteed optical budget of 24 dB, which is usually enough to reach up to 80 km distance as per Cisco GLC-ZX-SM specifications. However, distance is only an indicative parameter calculated for identification comfort. Finally, we calculate distance while keeping in mind the minimum optical budget and the average attenuation of optical cabling in industry. Our Cisco GLC-ZX-SM compatible module version uses a high-quality DFB Laser transmitter with a nominal wavelength of 1550 nm and a 1550 nm PIN Photodiode receiver. DDM/DOM optical diagnostics are supported by this module, which provides diagnostic information about the current operating conditions. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The compatible Cisco GLC-ZX-SM module has a Double LC interface and operates in the Standard 0°-70°C temperature range. This SFP+ module supports data rates ranging from 1.063 to 1.25 Gbps and applications such as Gigabit Ethernet (1.25 Gbps). Our Cisco GLC-ZX-SM module is a multi-purpose module that can be used in a variety of networking applications. Consequently, most popular applications are Internet Service Provider, Fiber to The Home routing and switching equipment with GLC-ZX-SM compatible interfaces, Mobile Operator Core and Backhaul applications, Data Center networking for Ethernet connections and other optical fiber links. Our Cisco compatible GLC-ZX-SM transceiver has proven to be reliable in temperature-controlled server rooms over a long period of time GLC-ZX-SM compatible transceivers do not require any maintenance while in use. The only possible maintenance requirement could occur during cable replacement, when the transceiver connector must be thoroughly cleaned of dust using special optical connector cleaning tools. Therefore ensuring the best connection possible – leading to best performance!
Our Compatible Cisco GLC ZX SM price and datasheet is based on our product 1.25G-SFP-80D, which is CE/RoHS certified and fulfills product safety standards. We perform compatibility tests for Cisco compatible GLC-ZX-SM SFP+ Module with the most recent Cisco networking equipment platforms, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly with Cisco platforms. Furthermore, our optical transceivers comply with the SFP+ Multi Source Agreement industry standard and is intended to work with any major Cisco platform which supports GLC-ZX-SM compatibility. Because we are committed to providing high-quality service, we conduct rigorous quality checks before delivering our products. As a result, we perform optical parameter measurements, connector cleanness tests, and EEPROM memory data validation tests on SFP+ transceivers. Please contact us if you require any additional information.
