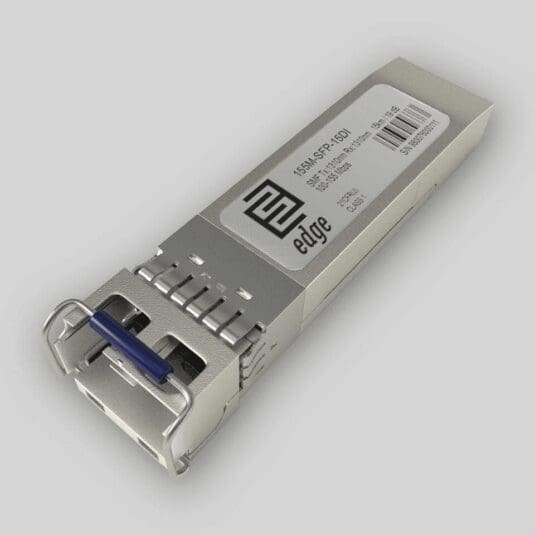

MGBIC-LC05 Extreme Networks compatible 100M SMF SFP 10km Module
Extreme compatible MGBIC-LC05 - Key Features
- Compatibility: Extreme
- Media Type: Single-Mode Fiber (SMF)
- Fiber Count: BiDi
- Connector: Double LC/UPC
- Maximum Distance: 15 km
- Guaranteed Link Budget: 19 dB
- Tx Wavelenght: 1310 nm
- Supported Data Rate: 0.1 Gbps - 0.155 Gbps
- DDM/DOM: Supported
- Temperature Range: Industrial -40° to 85°C
Extreme MGBIC-LC05 Price
SKU:155M-SFP-15DI-EX
Made to Order - 2 WeeksExtreme compatible MGBIC-LC05 Specifications
Form Factor | SFP |
Media Type | Single-Mode Fiber (SMF) |
Fiber Count | BiDi |
Connector | Double LC/UPC |
Maximum Distance | 15 km |
Guaranteed Link Budget | 19 dB |
TX Wavelength | 1310 nm |
RX Wavelength | 1310 nm |
Supported Data Rate | 0.1 Gbps - 0.155 Gbps |
Supportet Ethernet Applications | 100M Ethernet (100Mbps) |
SDH/SONET Standards | STM-1 (155Mbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
Rx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
Minimum Transmitting Power | -15 dBm |
Maximum Transmitting Power | -8 dBm |
Receiver Sensitivity | -34 dBm |
Receiver Overload | -3 dBm |
Dispersion | 110-200 ps/nm ps/nm |
Transmitter Type | FP Laser |
Receiver Type | PIN photodiode |
Temperature Range | Industrial -40° to 85°C |
Power | +3.3V single power supply |
Compliance | CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA |
Extreme compatible MGBIC-LC05 Datasheet
v2Complete technical specifications and product details
Extreme compatible MGBIC-LC05 Description
Extreme Networks MGBIC-LC05 compatible is SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has a minimum guaranteed optical budget of 19 dB, with in most cases is enough to reach about 15 km distance. However, distance is just an indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account the minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality FP Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver. It supports DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Extreme Networks MGBIC-LC05 compatible operates in Industrial -45°C - +85°C temperature range and has Double LC interface. SFP support 100-155Mbps data rate and such applications as 100M Ethernet (100Mbps), STM-1 (155Mbps). SFP Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Enterprice network Fast Ethernet Links, ISP FTTH Networking Fast ethernet Links, SONET/SDH STM-1 Links and other optical links.
Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Extreme Networks MGBIC-LC05 compatible SFP Transceiver with latest platforms of Extreme Networks networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Extreme Networks platforms. However, our optical transceivers are compliant to SFP Multi Source Agreement INF-8074i industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and SFP transceiver EEPROM memory data validation tests. Feel free to Contact us - We will gladly learn about your needs and provide you with the best solution!
