FTLC1151RDPL

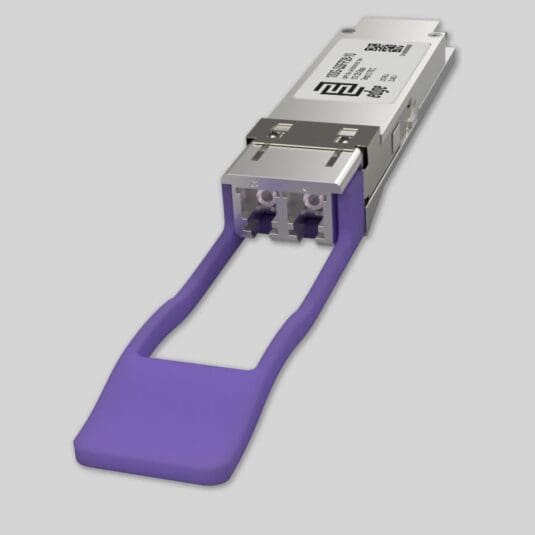

FTLC1151RDPL Finisar Compatible 10km 100GBASE-LR4 QSFP28 Optical Transceiver Module

# Key Highlights
  • Type:100GBASE-LR4 QSFP28
  • Compatibility:Finisar Compatible
  • Tx/Rx Wavelength:1295.56, 1300.05, 1304.58, 1309.14 nm
  • Laser:EML LAN WDM TOSA
  • Fiber Type:Single-Mode Fiber (SMF)
  • Connectors:Double LC
  • Optical Budget:6.6 dB
  • Max. Distance:10km
  • Data Rate:103.125 Gbps
  • FEC Forward Error Correction:Supported
  • DDM/DOM:Supported
  • Power Consumption:≤3.5W
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 100G-QSFP28-10-FI

220.00

Standard recommended retail price without VAT.

Lead Time: Next Business Day from Order Confirmation
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

Connectors:

Double LC

TX Wavelength:

LAN WDM 1310nm

RX Wavelength:

LAN WDM 1310nm

Minimum Optical Budget:

6.6 dB

Maximum Distance:

10km

Supported Data Rate:

103.125 Gbps

Supported Applications:

100G Ethernet (103.125Gbps)

DDM/DOM:

Supported

CDR (Clock and Data Recovery) chip

Supported

Forward Error Correction (FEC):

Host FEC Supported

Minimum Transmitting Power:

Each Lane -4.3 dB

Transmitter Type:

EML LAN WDM TOSA

Tx Wavelength Bandwidth:

4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)

Maximum Transmitting Power:

Each Lane 4.5 dB

Average Launch Power (Min) Each Lane:

-4 dBm

Receiver Sensitivity:

Each Lane -8.6 dBm

Average Launch Power (Max) Each Lane:

4.5 dBm

Extinction Ratio (Min):

4 dB

Receiver Type:

PIN ROSA

Rx Wavelength Bandwidth:

4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm)

Average Receiver Sensitivity (Min) Each Lane:

-10.6 dBm

Average Receiver Sensitivity (Max) Each Lane:

0 dBm

Receiver Overload:

3.3 dBm

Temperature Range:

Standard 0°-70°C

Storage Temperature:

-40° to 85°C

Relative Humidity:

0 to 85%

Power Consumption:

≤3.5W

Power:

+3.3V

Chipset:

Macom, Sumitomo, Samtech, Oclaro, Avago, II-IV

Compliance:

Class 1 FDA, IEC60825-1 Laser Safety Compliant, IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, RoHS-6, CE, QSFP28 MSA, SFF-8636, SFF-8665

# Product Documentation
Finisar Compatible FTLC1151RDPL Datasheet

Finisar Compatible FTLC1151RDPL QSFP28 Module is based on our product 100G-QSFP28-10. When You will order it will be encoded to be compatible with Finisar equipment and it will be labeled with part number: 100G-QSFP28-10-FI, where FI means Finisar Compatible. Above You can download data-sheet of our 100G-QSFP28-10 product.

# Product Description

Our Compatible Finisar FTLC1151RDPL QSFP28 transceiver is based on our 100G-QSFP28-10 product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our compatible module version is designed for operation over a Double Fiber Single-Mode Fiber (SMF) optical cable. It has a minimum guaranteed optical budget of 6.6 dB, which typically is enough to reach about 10 km. However, distance is only an indicative parameter calculated for identification comfort. Finally, we calculate distance while keeping in mind the minimum (guaranteed) optical budget and the average attenuation of optical cabling in the industry. Our Finisar FTLC1151RDPL compatible transceiver uses a high-quality EML Laser transmitter operating at 1295.56, 1300.05, 1304.58, 1309.14 nm nominal wavelength and a 1295.56, 1300.05, 1304.58, 1309.14 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions. This compatible module has a Double LC connector and module is designed for operation in standard temperature networking environments ranging from 0°-70°C. The transceiver chipset supports data rates ranging from 103.125 Gbps and such applications as 100G Ethernet (103.125 Gbps). It is important to note that the mentioned application support will vary depending on the port where the module will be used, and it supported applications as well as module speed configuration during ordering process, but we can ensure that our module will support at least the same functionality as its OEM counterpart. This is a multi-purpose transceiver that can be used in a variety of different places in today’s networking. As a result, Internet Service Provider (ISP) Aggregation and Backbone, Mobile Operator Core Networks and Data Center Core Network interconnections are the most popular applications for this product.

Our compatible Finisar FTLC1151RDPL module is CE/RoHS certified, it meets product safety standards, and is compliant with QSFP28 Multi Source Agreement (MSA) SFF-8665, IEEE 802.3ba 100GBASE-LR4 industry standard. To ensure smooth operation, we have completed compatibility tests for this module with the most recent platforms of Finisar networking equipment, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly in Finisar platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. If you have any questions, please Contact us. We will gladly learn about your needs and recommend the best compatible products from our portfolio.
