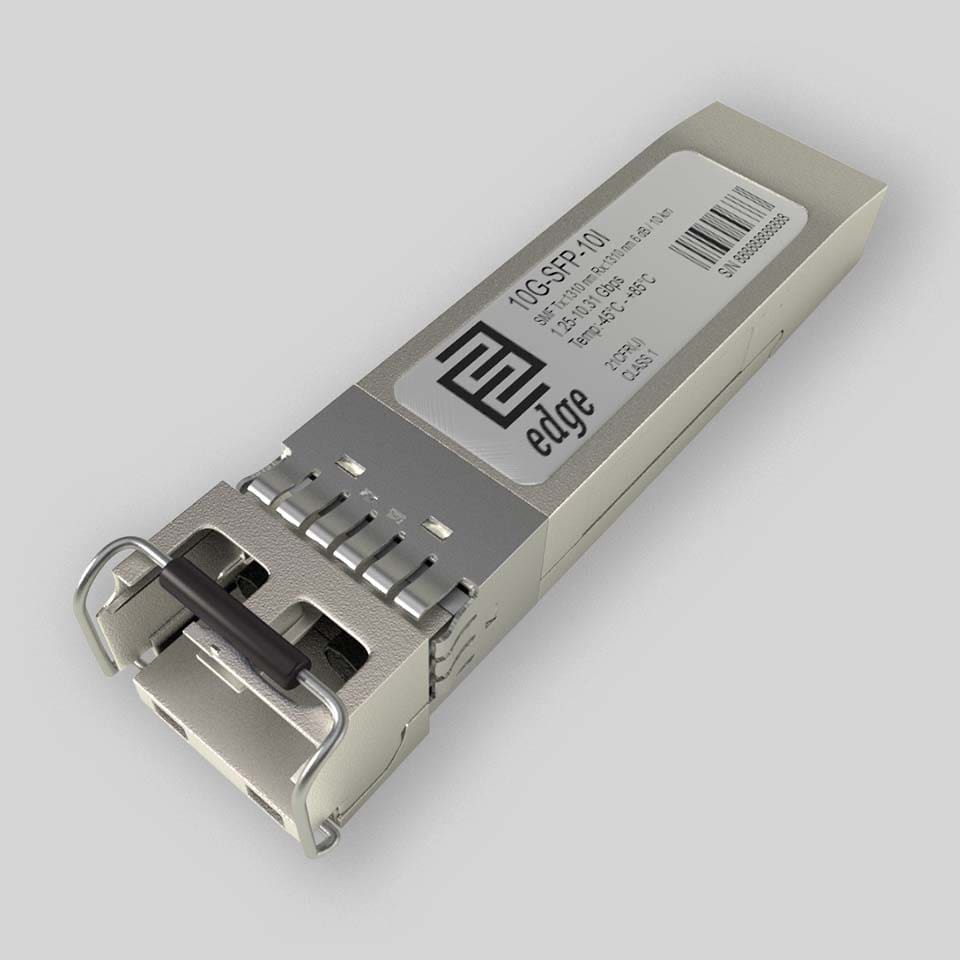

FTLX1472M3BxL Finisar Compatible 10GBASE-LR SFP+ Module
Finisar compatible FTLX1472M3BxL - Key Features
- Compatibility: Finisar
- Media Type: Single-Mode Fiber (SMF)
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 10 km
- Average Link Budget: 6 dB
- Tx Wavelength: 1310 nm
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Finisar FTLX1472M3BxL Price
Finisar compatible FTLX1472M3BxL Specifications
Form Factor | SFP+ |
Media Type | Single-Mode Fiber (SMF) |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 10 km |
Average Link Budget | 6 dB |
TX Wavelength | 1310 nm |
RX Wavelength | 1310 nm |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supported Ethernet Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
Rx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
Minimum Transmitting Power | -8.2 dBm |
Maximum Transmitting Power | 0.5 dBm |
Receiver Sensitivity | -14.5 dBm |
Receiver Overload | 0 dBm |
Dispersion | 70-100 ps/nm |
Transmitter Type | DFB Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
Finisar compatible FTLX1472M3BxL Datasheet
v4Complete technical specifications and product details
Finisar compatible FTLX1472M3BxL Description
EdgeOptic's FTLX1472M3BxL compatible is a Finisar-coded version of the EdgeOptic 10G-SFP-10 multi-vendor 10GBASE-LR transceiver. FTLX1472M3BxL is Finisar's ordering code for a multi-rate 10GBASE-LR SFP+ at 1310 nm over 10 km single-mode fiber. The EdgeOptic module meets IEEE 802.3ae Clause 52 and the SFP+ MSA (SFF-8431, SFF-8432), and carries Finisar EEPROM coding so it works on platforms that accept Finisar-coded 10G SFP+ optics.
The DFB laser transmits at 1310 nm over duplex single-mode fiber on an LC connector, reaching 10 km at a 6 dB link budget. Launch power holds between −8.2 and 0.5 dBm, and the PIN photodiode receiver is rated at −14.5 dBm sensitivity with 0 dBm overload. SFF-8472 digital optical monitoring reports TX and RX power, temperature, supply voltage, and laser bias current in real time.
As a multi-rate optic, FTLX1472M3BxL carries 10G Ethernet (10.31 Gbps) and OC-192/STM-64 (9.95 Gbps), with the EdgeOptic module also handling Gigabit Ethernet (1.25 Gbps) across a 1.25 to 11.32 Gbps range. The host port sets the active rate. A single +3.3 V supply powers the module across a 0 to 70 °C commercial case range, and it is hot-pluggable.
