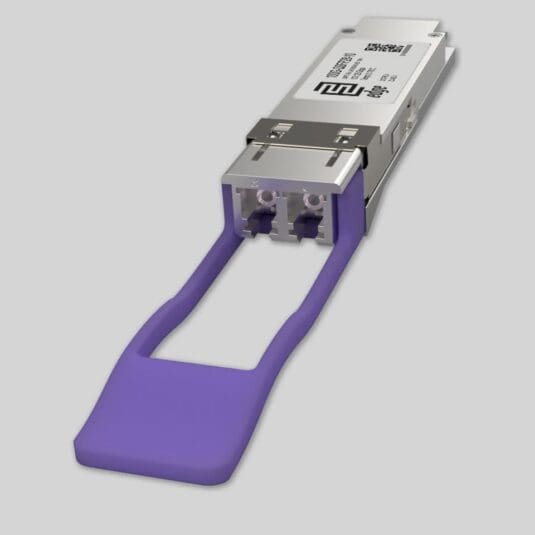

JL275A HPE X150 Compatible 100G QSFP28 LR4 10km SMF Transceiver
HP compatible JL275A - Key Features
- Compatibility: HP
- Media Type: Single-Mode Fiber (SMF)
- Connector: Double LC/UPC
- Fiber Count: Duplex
- Maximum Distance: 10 km
- Average Link Budget: 6.3 dB
- Tx Wavelength: 1310 nm
- Supported Data Rate: 112 Gbps
- DDM/DOM: Supported
- Forward Error Correction (FEC): Host FEC Supported
- Temperature Range: Standard 0°-70°C
HP JL275A Price
In Stock - Ships Next Business DayHP compatible JL275A Specifications
Form Factor | QSFP28 |
Modulation | NRZ (Non-Return to Zero) |
Media Type | Single-Mode Fiber (SMF) |
Connector | Double LC/UPC |
Fiber Count | Duplex |
Maximum Distance | 10 km |
Average Link Budget | 6.3 dB |
TX Wavelength | 4-channel LAN WDM (1295.56/1300.05/1304.58/1309.14 nm) |
RX Wavelength | 4-channel LAN WDM (1295.56/1300.05/1304.58/1309.14 nm) |
Supported Data Rate | 112 Gbps |
Supported Ethernet Applications | 100G Ethernet (103.125 Gbps) |
Optical Transport Network (OTN) Applications | OTU4 (112 Gbps) |
DDM/DOM | Supported |
Forward Error Correction (FEC) | Host FEC Supported |
Transmitter Type | EML Laser |
Tx Wave Bandwidth | 4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm) |
Average Launch Power (Min) Each Lane | -4.3 dBm |
Average Launch Power (Max) Each Lane | 4.5 dBm |
Extinction Ratio (Min) | 4 dB |
Receiver Type | PIN photodiode |
RX Wave Bandwidth | 4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm) |
Average Receiver Sensitivity (Min) Each Lane | -10.6 dBm |
Average Receiver Sensitivity (Max) Each Lane | -8.6 dBm |
Receiver Overload | 5.5 dBm |
Temperature Range | Standard 0°-70°C |
Storage Temperature | -40° to 85°C |
Relative Humidity | 5 to 85% |
Power Consumption (Max) | 3.5 W |
Power | +3.3V single power supply |
Compliance | CE, RoHS, Class 1 FDA and IEC60825-1 Laser Safety Compliant, IEEE 802.3ba, IEEE 802.3bm, 100GBASE-LR4, QSFP28 MSA, SFF-8636 (Management Interface for 4-lane modules), SFF-8665 |
HP compatible JL275A Datasheet
v3Complete technical specifications and product details
HP compatible JL275A Description
EdgeOptic's JL275A compatible is an HPE-coded 100GBASE-LR4 QSFP28 transceiver matched to the HPE Networking X150 100G QSFP28 LC LR4 10km SM Transceiver. JL275A is the HPE FlexNetwork ordering code, not the ArubaOS-CX variant; the JL310A part number serves the ArubaOS-CX 8320, 8325 and 8360 stack. The module reaches 10 km over single-mode fiber with a guaranteed 6.3 dB link budget, an LC duplex connector, and DOM diagnostics readable from the host.
The optical engine uses an EML transmitter and PIN photodiode receiver across the four LAN WDM lanes at 1295.56, 1300.05, 1304.58 and 1309.14 nm. Aggregate line rate is 103.125 Gbps (4 by 25.78125 Gbps NRZ), aligned to the IEEE 802.3ba Clause 88 100GBASE-LR4 specification and the SFF-8665 QSFP28 MSA. Operating temperature range is 0 to 70 C for commercial deployments.
JL275A is listed for HPE FlexFabric 5940 and 5945 series switches running Comware. Verify against the HPE transceiver compatibility guide for your exact switch model and Comware version. The X150 designation in HPE Networking nomenclature signals the 100G QSFP28 LR4 reach class on FlexNetwork-coded optics; the related JL275A-40 part covers the longer-reach 100GBASE-ER4 class and is not interchangeable. EdgeOptic's compatible carries HPE-recognized EEPROM so the module enumerates and operates on Comware platforms without configuration overrides. JL275A does not target ArubaOS-CX hardware: the 8320, 8325 and 8360 series require the JL310A SKU instead.
Typical deployments include data center fabric uplinks, core-to-aggregation interconnects and metro 100G backbone runs where the 10 km LR4 reach matches building-to-building fiber spans. The compatible meets CE and RoHS, ships with the same optical performance envelope as the HPE OEM equivalent, and supports DOM polling for live link-budget visibility. For ordering questions, fiber-plant validation or larger-volume quotes, contact our sales team.
Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty.
Frequently Asked Questions
Is JL275A the same as JL310A?
Both are HPE part numbers for 100GBASE-LR4 QSFP28 modules. JL275A is the HPE FlexNetwork ordering code, while JL310A is the Aruba-branded code for ArubaOS-CX switches. They are coded for different switch platforms, so do not substitute one for the other without verifying compatibility.
Which HPE platforms support JL275A?
JL275A is supported on HPE FlexNetwork switches with QSFP28 ports, including the 5940 and 5945 series. Check HPE's transceiver compatibility matrix for your specific switch model and Comware version.
Does the compatible JL275A work natively on HPE Comware?
Our module is programmed with HPE-specific EEPROM coding and is recognized on HPE Comware platforms without requiring additional configuration. We recommend verifying compatibility with your specific Comware version.
How does JL275A differ from JL275A-40?
JL275A is the 10 km 100GBASE-LR4 part. JL275A-40 is a separate HPE SKU for the 40 km 100GBASE-ER4 reach class. The two are not interchangeable: ER4 uses a different optical specification. Confirm the reach class on the original HPE order before sourcing a compatible replacement.
