Huawei QSFP-100G-CWDM4 (02311MNN) compatible QSFP28 module Price & Datasheet
No product images configured
Huawei compatible QSFP-100G-CWDM4 - Key Features
- Compatibility: Huawei
- Media Type: Single-Mode Fiber (SMF)
- Connector: Double LC/UPC
- Fiber Count: Duplex
- Maximum Distance: 2 km
- Guaranteed Link Budget: 3.5 dB
- Tx Wavelenght: CWDM 4 Ch
- Supported Data Rate: 103.125 Gbps
- DDM/DOM: Supported
- Forward Error Correction (FEC): Host FEC Supported
- Temperature Range: Standard 0°-70°C
Huawei QSFP-100G-CWDM4 Price
SKU:100G-QSFP28-2.1-HU
In Stock - Ships Next Business DayHuawei compatible QSFP-100G-CWDM4 Specifications
Form Factor | QSFP28 |
Modulation | NRZ (Non-Return to Zero) |
Media Type | Single-Mode Fiber (SMF) |
Connector | Double LC/UPC |
Fiber Count | Duplex |
Maximum Distance | 2 km |
Guaranteed Link Budget | 3.5 dB |
TX Wavelenght | 4-channel CWDM (1271/1291/1311/1331 nm) |
RX Wavelenght | 4-channel CWDM (1271/1291/1311/1331 nm) |
Supported Data Rate | 103.125 Gbps |
Supportet Ethernet Applications | 100G Ethernet (103.125 Gbps) |
Supported Fiber Channel Applications | 4x 32G Fiber Channel (112.2Gbps) |
Optical Transport Network (OTN) Applications | OTU4 (112 Gbps) |
DDM/DOM | Supported |
Forward Error Correction (FEC) | Host FEC Supported |
Transmitter Type | DML Laser |
Tx Wave Bandwidth | 4 CWDM Lanes (73 nm 1264.50 – 1337.50nm) (L0 Tx center 1271nm, L1 Tx center 1291nm, L2 Tx center 1311nm, L3 Tx center 1331nm) |
Average Launch Power (Min) Each Lane | -6.5 dBm |
Average Launch Power (Max) Each Lane | 2.5 dBm |
Extinction Ratio (Min) | 4 dB |
Receiver Type | PIN photodiode |
RX Wave Bandwidth | 4 CWDM Lanes (73 nm 1264.50 – 1337.50nm) (L0 Tx center 1271nm, L1 Tx center 1291nm, L2 Tx center 1311nm, L3 Tx center 1331nm) |
Average Receiver Sensitivity (Min) Each Lane | -10 dBm |
Average Receiver Sensitivity (Max) Each Lane | 0 dBm |
Receiver Overload | 3.3 dBm |
Temperature Range | Standard 0°-70°C |
Storage Temperature | -40° to 85°C |
Relative Humidity | 5 to 85% |
Power Consumption (Max) | 3.5 W |
Power | +3.3V single power supply |
Compliance | CE, RoHS, Class 1 FDA and IEC60825-1 Laser Safety Compliant, 100G CLR4 Alliance, 100G CWDM4 MSA, QSFP28 MSA, SFF-8636 (Management Interface for 4-lane modules), SFF-8665 |
Huawei compatible QSFP-100G-CWDM4 Datasheet
v2Complete technical specifications and product details
Huawei compatible QSFP-100G-CWDM4 Description

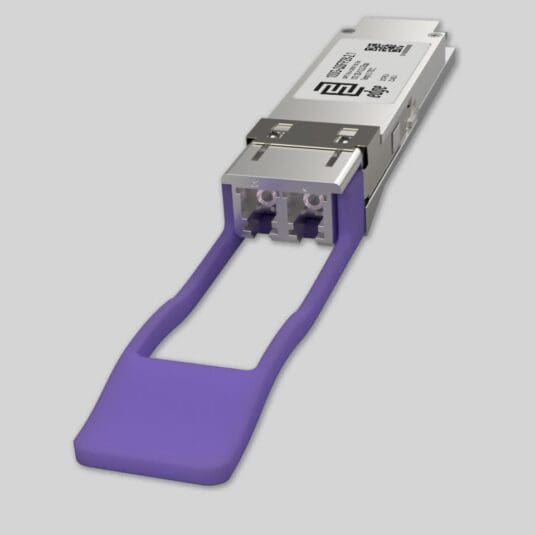

QSFP-100G-CWDM4 (02311MNN) is Huawei Compatible 100G-CWDM4/CLR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber. Module adopts CWDM MUX/DEMUX technology with central wavelength of the lanes at: 1271, 1291, 1311, 1331 nm. On the transmission side module converts 4 electrical input channels (each up to 28.05Gbps) into 4 lanes with optical signal and multiplexes them into a single channel of 100 Gbps optical transmission, reversely on the receiver side, module optically de-multiplexes 100 Gbps input into 4 lanes signals and converts them to 4 lanes of electrical data (each up to 28.05Gbps). Optical transceiver has minimum guaranteed optical budget of 7 dB, which in most cases is enough to reach 2 km distance using single-mode cable. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. Compatible module uses cooled 4x28Gb/s LAN WDM TOSA (1271, 1291, 1311, 1331 nm) laser transmitters and 4x28Gb/s PIN ROSA receivers. Transceiver support DDM/DOM optical diagnostics, which provide diagnostic information about the present operating conditions. Additionally module supports FEC (Forward Error Correction) function which will help receiving side detect and correct bit errors and improve the overall quality of the link. The module operates in Standard 0°-70°C temperature range and has double LC connector. QSFP-100G-CWDM4 compatible support up to 103.125-112.2 Gbps data rate and such applications as 100G Ethernet (103.125Gbps), Optical Transport Network OTU4 4l1-9D1F (112 Gbps) and 128G Fiber Channel (112.2 Gbps). Optical transceiver is multi-purpose module used in number of different places in today’s networking environment. Most popular applications are Internet Service Provider (ISP), Mobile Operator and Data Center Core Networks. More technical specifications and Huawei QSFP-100G-CWDM4 price can be visible in the datasheet below.
Huawei offers its 100G-QSFP products appropriated to various platforms, namely CloudEngine 8800, 7800, 6800, and 5800 Series Switches, resulting in multiple SKUs and Part Numbers. In the table below all the possible options can be seen and what each of these Huawei 100G-QSFP are meant for. EDGE Optical Solutions offers compatibility with all mentioned platforms, finding the best fit to the customer’s own Huawei platform!
# Huawei 100G-QSFP28 Transceiver TypesSKUPart NumberHuawei Platform
QSFP-100G-CWDM4
02311MNN
Huawei QSFP-100G-CWDM4 with P/N: 02311MNN is used in CloudEngine Series Switches (Versions earlier than V200R020C00)
QSFP-100G-CLR4
02311MNP
Huawei QSFP-100G-CLR4 with P/N: 02311MNP is used in CloudEngine 8800, 7800, 6800, and 5800 Series Switches (Versions earlier than V200R020C00)
QSFP-100G-CWDM4-500
02312UJN
Huawei QSFP-100G-CWDM4-500 with P/N: 02312UJN is used in CloudEngine 9800, 8800, 6800, and 5800 Series Switches (V200R020C00 and later versions)
QSFP-100G-CWDM4-ISP
02313HVM
Huawei QSFP-100G-CWDM4-ISP with P/N: 02313HVM is used in Optical Transceivers and Cables of CloudEngine Data Center Switches
QSFP-100G-CWDM4-ISP
02312DYA
Huawei QSFP-100G-CWDM4-ISP with P/N: 02312DYA is used in CloudEngine 16800 Series Switches
QSFP-100G-CWDM4-ISP
02313HVM
Huawei QSFP-100G-CWDM4-ISP with P/N: 02313HVM is used in Optical Transceivers and Cables of CloudEngine Data Center Switches
Huawei QSFP-100G-CWDM4 compatible Transceiver price and datasheet is based on our 100G-QSFP28-2.1 product, which is fully compliant with QSFP28 Multi Source Agreement (MSA) SFF-8665, 100G CWDM4 MSA and 100G CLR4 Alliance standards, product safety standards and is CE/RoHS certified. We perform compatibility tests for QSFP-100G-CWDM4 (02311MNN) Huawei compatible Transceiver with the most recent Huawei networking equipment platforms, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly with Huawei platforms! Because we are committed to providing high-quality service, we conduct rigorous quality checks before delivering our products. As a result, we perform optical parameter measurements, connector cleanness tests, and EEPROM memory data validation tests on our products. Feel free to Contact us - We will be glad to know your requirements and provide you with the appropriate solution of QSFP-100G-CWDM4!
