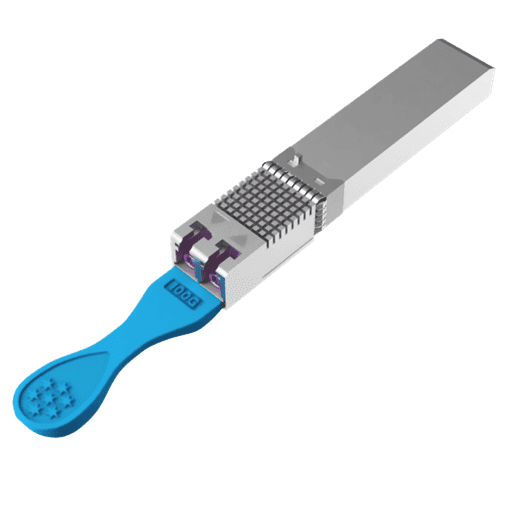

SDD-100G-LR1 Juniper Compatible 100G SFP-DD LR1 PAM4 Module
Juniper compatible SDD-100G-LR1 - Key Features
- Compatibility: Juniper
- Media Type: Single-Mode Fiber (SMF)
- Connector: Double LC/UPC
- Fiber Count: Duplex
- Maximum Distance: 10 km
- Guaranteed Link Budget: 4.7 dB
- Tx Wavelenght: 1310 nm
- Supported Data Rate: 106.25 Gbps
- DDM/DOM: Supported
- Forward Error Correction (FEC): Host FEC Supported
- Temperature Range: Standard 0°-70°C
Juniper SDD-100G-LR1 Price
SKU:100G-SFP-DD-10-JU
Made to Order - 2 WeeksJuniper compatible SDD-100G-LR1 Specifications
Form Factor | SFP |
Modulation | PAM4 (Pulse Amplitude Modulation 4-level) |
Media Type | Single-Mode Fiber (SMF) |
Connector | Double LC/UPC |
Fiber Count | Duplex |
Maximum Distance | 10 km |
Guaranteed Link Budget | 4.7 dB |
TX Wavelenght | Dual 1310 nm |
RX Wavelenght | Dual 1310 nm |
Supported Data Rate | 106.25 Gbps |
Supportet Ethernet Applications | 100G Ethernet PAM4 (106.25 Gbps) |
DDM/DOM | Supported |
Forward Error Correction (FEC) | Host FEC Supported |
CDR (Clock and Data Recovery) chip | Supported |
Transmitter Type | EML Laser |
Tx Wave Bandwidth | 13 nm (1304-1317 nm) |
Average Launch Power (Min) Each Lane | -1.4 dBm |
Average Launch Power (Max) Each Lane | 4.5 dBm |
Receiver Type | PIN photodiode |
RX Wave Bandwidth | 13 nm (1304-1317 nm) |
Average Receiver Sensitivity (Min) Each Lane | -6.1 dBm |
Average Receiver Sensitivity (Max) Each Lane | 4.5 dBm |
Receiver Overload | 4.5 dBm |
Temperature Range | Standard 0°-70°C |
Storage Temperature | -40° to 85°C |
Relative Humidity | 5 to 85% |
Power Consumption (Max) | 3 W |
Power | +3.3V single power supply |
Compliance | CE, RoHS, Class 1 FDA and IEC60825-1 Laser Safety Compliant, IEEE 802.3cu, SFP-DD MSA, SFF-8472, 100GAUI-2, 100G Lambda MSA |
Juniper compatible SDD-100G-LR1 Datasheet
v2Complete technical specifications and product details
Juniper compatible SDD-100G-LR1 Description
Juniper compatible SDD-100G-LR1 is a 100GBASE LR1 SFP-DD (Small Form-Factor Pluggable – Double Density) Transceiver designed for operation over Single-Mode Fiber (SMF) optical cable. On the transmission side module converts 2x 50G PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into 1x independent 100G PAM4 (106Gbps) optical signal. Module has minimum guaranteed optical budget of 4.7 dB, which in most cases is enough to reach 10 km distance over OS2 single-mode fiber. Our compatible module uses top quality EML (1310 nm) transmitter and 106.25Gb/s PAM4 PIN photodiode receiver. 100G-SFP-DD-2 100GBASE-LR1 supports DDM/DOM optical diagnostics that provide real-time diagnostic information about the present operating conditions. Our Juniper compatible transceiver operates in Standard 0°-70°C temperature range and has Double LC interface. SDD-100G-LR1 100GBASE-LR1 SFP-DD transceiver is CE/RoHS certified and is compliant to SFP56-DD Multi Source Agreement (MSA), IEEE802.3CU, 100G Lambda 100G LR1 and 100GAUI-2(no FEC). We will be glad to know your requirements!
Juniper is one of the leading OEM manufacturers in our industry and their products are used by many equipment manufacturers. Our Juniper compatible SDD-100G-LR1 product EEPROM memory will be coded with the necessary information to fully meet Juniper compatibility and will work seamlessly with platforms that support Juniper products. If You have any other questions about Juniper-compatible items, please do not hesitate to contact Us, we will be happy to assist!
