Moxa SFP-10GZRLC-T Compatible 10GBASE-ZR SFP+ 80km Module
Moxa compatible SFP-10GZRLC-T - Key Features
- Compatibility: Moxa
- Media Type: Single-Mode Fiber (SMF)
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 80 km
- Average Link Budget: 23 dB
- Tx Wavelength: 1550 nm
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Moxa SFP-10GZRLC-T Price
Moxa compatible SFP-10GZRLC-T Specifications
Form Factor | SFP+ |
Media Type | Single-Mode Fiber (SMF) |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 80 km |
Average Link Budget | 23 dB |
TX Wavelength | 1550 nm |
RX Wavelength | 1550 nm |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supported Ethernet Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
Rx Wavelength Bandwidth | 37 nm (1528-1565 nm) |
Minimum Transmitting Power | 0 dBm |
Maximum Transmitting Power | 5 dBm |
Receiver Sensitivity | -24 dBm |
Dispersion | 1600 ps/nm |
Transmitter Type | EML Laser |
Receiver Type | APD Photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
Moxa compatible SFP-10GZRLC-T Datasheet
v3Complete technical specifications and product details
Moxa compatible SFP-10GZRLC-T Description

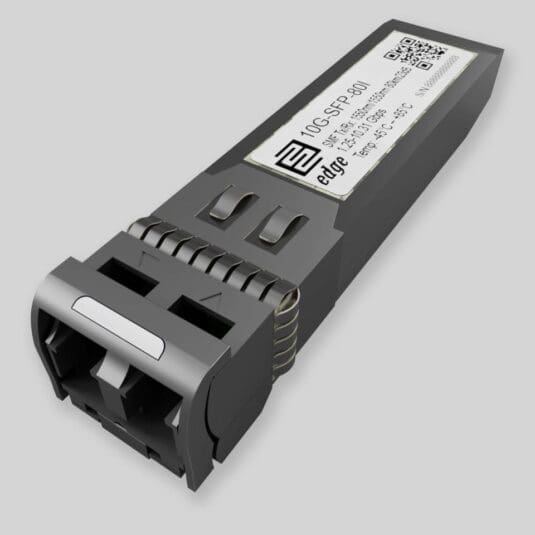

EdgeOptic's SFP-10GZRLC-T compatible is a Moxa coded version of the EdgeOptic 10G-SFP-80 multi-vendor 10GBASE-ZR transceiver. It is a duplex single-mode SFP+ module that carries 10 Gigabit Ethernet over a 1550 nm wavelength to 80 km, programmed with Moxa-recognized EEPROM so the host reads it as a genuine SFP-10GZRLC-T. The same EdgeOptic 10GBASE-ZR module ships under multiple vendor codes; this listing is the Moxa variant.
The optics use an EML transmitter and an APD receiver to deliver a 23 dB link budget across the 80 km span. Transmit power runs 0 to +5 dBm and receive sensitivity is better than −24 dBm, with a chromatic dispersion tolerance of 1600 ps/nm. Both transmit and receive operate at 1550 nm over a duplex LC/UPC interface on standard G.652 single-mode fiber. Digital diagnostics monitoring is supported, so transmit power, receive power, laser bias, temperature, and supply voltage are all readable from the host for commissioning and ongoing fault isolation.
Moxa markets the SFP-10GZRLC-T as a 10 Gigabit Ethernet SFP+ accessory for its industrial Ethernet switches, where it provides a 1550 nm ZR uplink across long single-mode spans. Scope here is 10GbE. Verify the slot assignment against the SFP module support list for your Moxa switch model before deployment. The EdgeOptic build is rated for the standard 0 to 70 C commercial range; the OEM SFP-10GZRLC-T is rated −40 to 85 C as a standalone module, though Moxa documentation notes the application temperature reduces to 60 C maximum in certain Moxa switch chassis. For industrial-temperature deployments contact our sales team.
Each module is built to the SFF-8431 SFP+ MSA and carries CE, RoHS, and Class 1 laser safety certification per IEC 60825-1 and the FDA. 10GBASE-ZR is an industry de-facto MSA reach class derived from OC-192/STM-64 optics, not an IEEE 802.3ae mode, so interoperability follows the SFP+ MSA rather than an IEEE clause. Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty. For project pricing or bulk orders, contact our sales team.
