MTP-MTP-OM4-16B

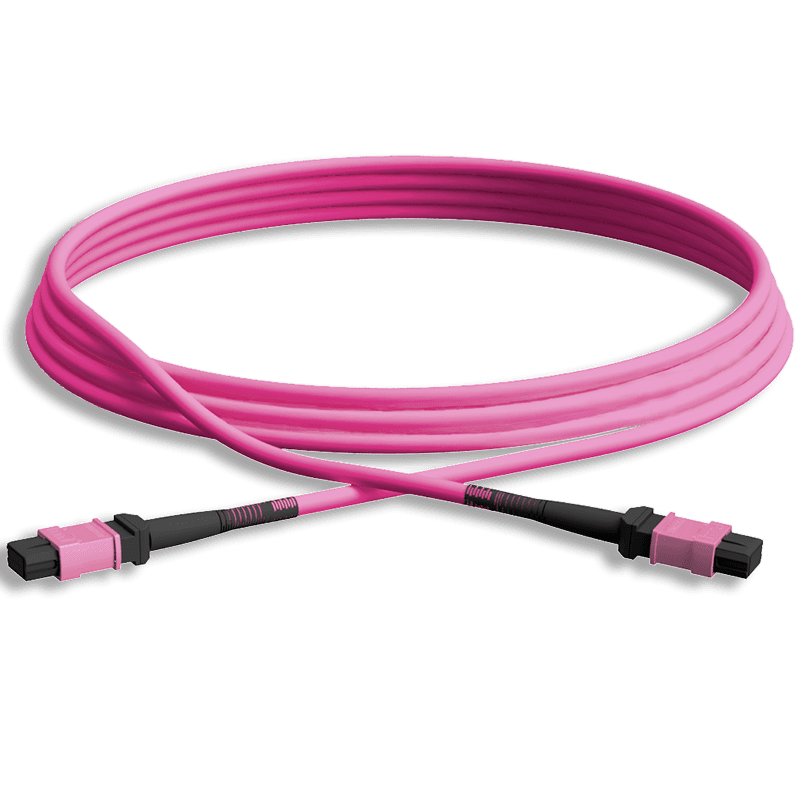

MTP to MTP Patch Cable, OM4, 16 Fiber, Type B, Female to Female (1-50m)
MTP to MTP Patch Cable, Female to Female, OM4 50/125μm, 16 Fiber, Type B (Reversed), UPC to UPC, LSZH Patch Cable, 1-50m
€63.01 – €302.99
SKU: MTP-MTP-OM4-16B
Shipping:Below 1 Week in EU Countries
Key Technical Data

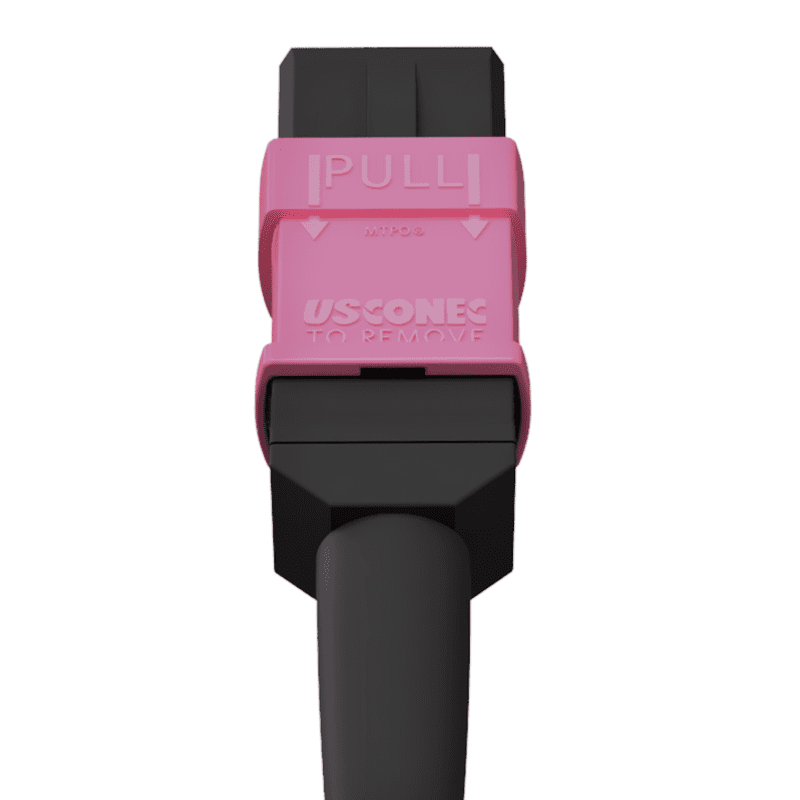

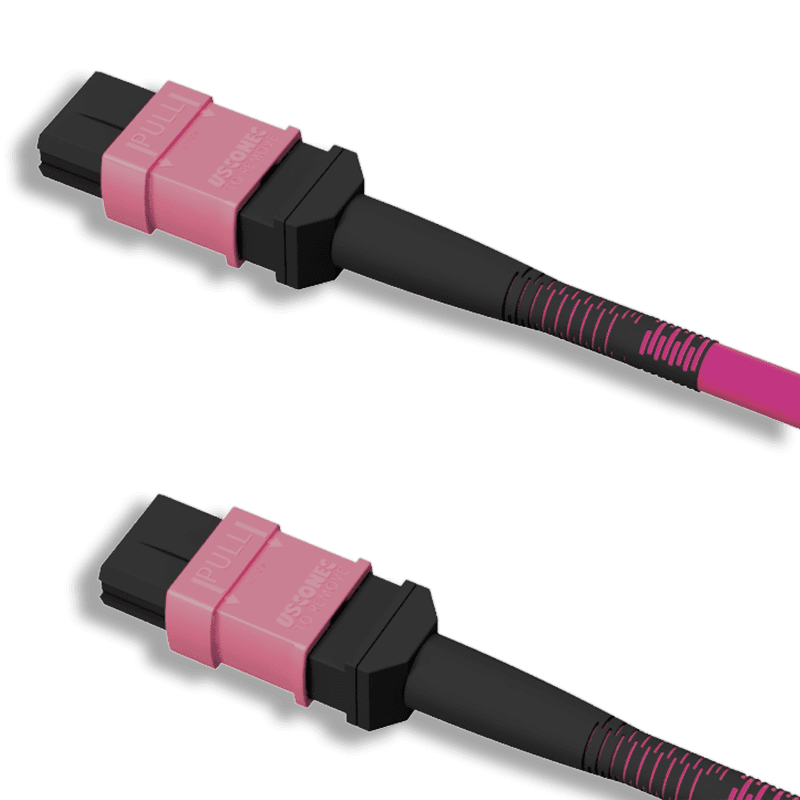

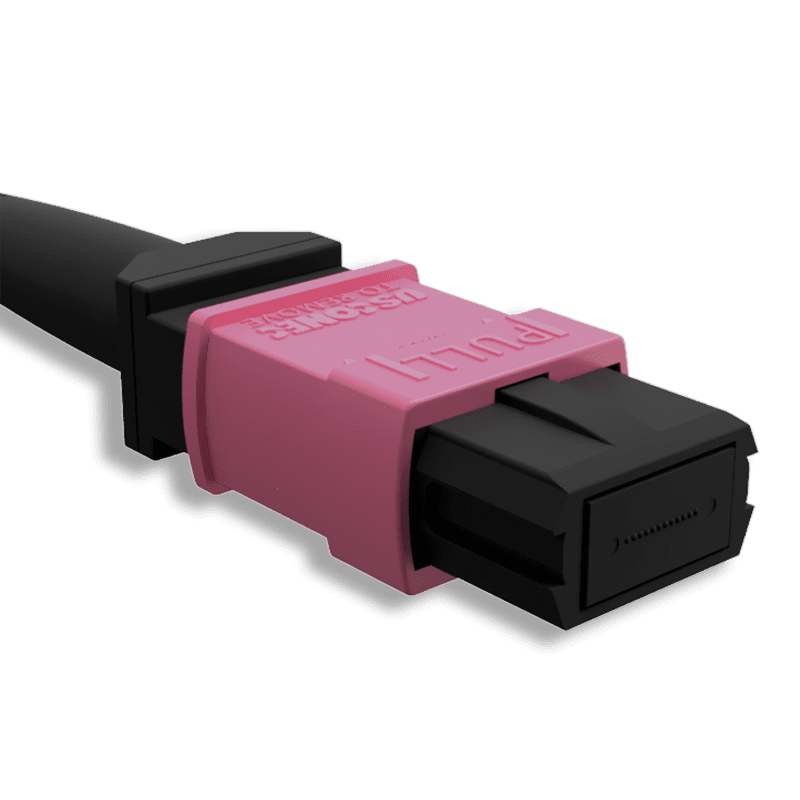

| Connector A: | MTP Female (US Conec) |
|---|---|
| Connector B: | MTP Female (US Conec) |
| Polarity: | Type B |
| Fiber Type: | OM4 50/125μm Multimode |
| Fiber count: | 16 |
| Polish Type: | UPC to UPC |
| Jacket Diameter: | 3.0 mm |
| Jacket Type: | LSZH |
| Wavelength: | 850/1310nm |
| Attenuation @ 850 nm: | ≤2.3 dB/km |
| Attenuation @ 1310 nm: | ≤0.6 dB/km |
| Attenuation @ 1550 nm: | – |
| Insertion Loss MPO: | 0.35dB Max (0.15dB Typ.) |
| Return Loss MPO: | ≥20dB |
| Storage Temperature: | -40°C to +85°C |
| Operating Temperature: | -10°C to +70°C |
| Installation Tensile Load: | 20 N |
| Long Term Tensile Load: | 20 N |
| Minimum Bend Radius: | 7.5mm |
| Fiber Color: | Violet/Magenta |
| Glass Fiber | YOFC |
| Length: | 1 to 50 M |
The MTP to MTP Patch Cable: MTP-MTP-OM4-16B is a high-performance Type B cable, featuring 16-fiber OM4 multimode compatibility. MTP stands for Multi-fiber Termination Push-on and is a registered trademark of US Conec. Available in lengths ranging from 1 to 50 meters, this cable uses 50/125 micron fiber with a 3mm jacket diameter made of Low Smoke Zero Halogen (LSZH) material. The insertion loss is exceptionally low, typically 0.15dB. Suitable for a wide range of temperatures(-10°C to +70°C), it meets the needs of diverse environments.
The MTP to MTP Patch Cable is designed for 400G Data Center applications, the cable facilitates connections between transceivers or from transceiver to patch panel. It is CE/RoHS certified, complying with ISO/IEC-61754, EN 50399, and EN 50575 standards, ensuring compatibility with other manufacturers’ equipment and adherence to safety and material standards.
