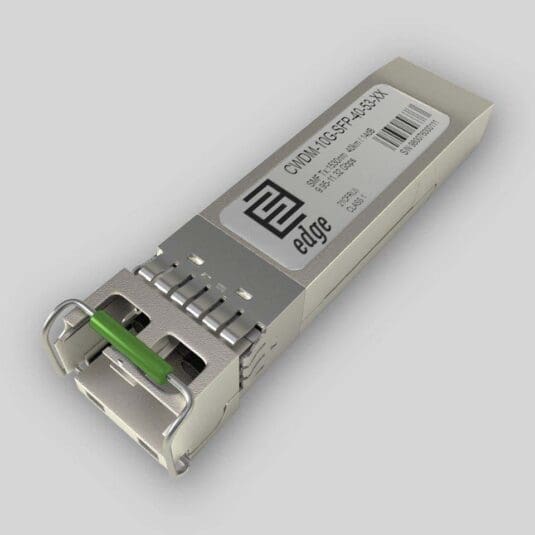

Nortel compatible NTK593PBE6 SFP+ Module
Nortel compatible NTK593PBE6 - Key Features
- Compatibility: Nortel
- Media Type: Single-Mode Fiber (SMF)
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 40 km
- Guaranteed Link Budget: 16 dB
- Tx Wavelenght: CWDM 18 Ch
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Nortel NTK593PBE6 Price
SKU:CWDM-10G-SFP-40-53-MS
In Stock - Ships Next Business DayNortel compatible NTK593PBE6 Specifications
Form Factor | SFP+ |
Media Type | Single-Mode Fiber (SMF) |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 40 km |
Guaranteed Link Budget | 16 dB |
TX Wavelength | CWDM Channel 1530 nm |
RX Wavelength | 1270-1610nm (CWDM, 18 channels range) |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supportet Ethernet Applications | 10G Ethernet (10.31Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
Optical Transport Network (OTN) Applications | ODU2 (10.037Gbps), ODU2e (10.399Gbps), OTU1e (11.049Gbps), OTU1f (11.27Gbps), OTU2 (10.70Gbps), OTU2e (11.095Gbps), OTU2f (11.32Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 20nm (1260 - 1280 nm) |
Rx Wavelength Bandwidth | G.694.2 CWDM Grid (1270-1610nm) |
Minimum Transmitting Power | -3 dBm |
Maximum Transmitting Power | 3 dBm |
Receiver Sensitivity | -16 dBm |
Receiver Overload | 0.5 dBm |
Dispersion | 400-800 ps/nm |
Transmitter Type | DFB Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | ,CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
Nortel compatible NTK593PBE6 Datasheet
v3Complete technical specifications and product details
Nortel compatible NTK593PBE6 Description
Nortel compatible NTK593PBE6 is SFP+ (Small Form factor Pluggable) Transceiver, operating over Double Fiber CWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 14 dB, with in most cases is enough to reach about 40 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality EML Laser transmitter with operating at nominal wavelength 1530 nm and 1270-1610 nm PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Nortel compatible NTK593PBE6 operates in Standard 0°-70°C temperature range and has Double LC interface. SFP+ support 9.95-11.32Gbps data rate and such applications as 10G Ethernet (10.31Gbps)|STM-64 (9.95Gbps)|OTU2 (10.70Gbps)|OTU1e (11.049Gbps)|OTU2e (11.095Gps)|OTU1f (11.27Gbps)|OTU2f (11.32Gbps)|ODU2 (10.037Gbps)|ODU2e (10.399Gbps). SFP+ Double Fiber CWDM optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber To The Home aggregation and backbone, Mobile operator core and backhaul SDH/SONET applications, Data Center networking site interconnections and other optical links.
Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Nortel compatible NTK593PBE6 SFP+ Transceiver with latest platforms of Nortel networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Nortel platforms. However, our optical transceivers are compliant to SFP+ Multi Source Agreement SFF-8431 industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and SFP+ transceiver EEPROM memory data validation tests.
