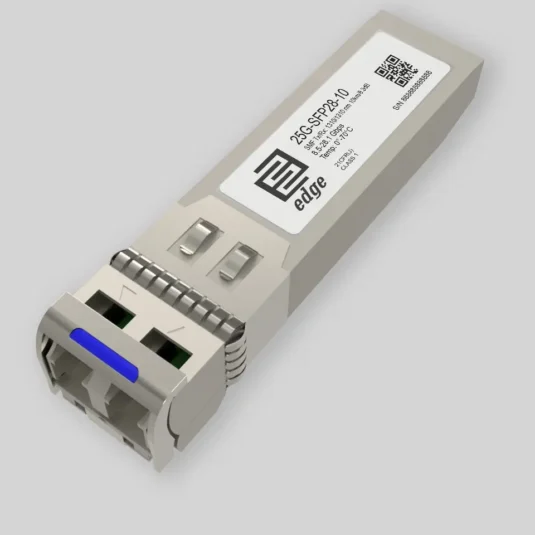

NVIDIA MMA2L20-AR Compatible 25GBASE-LR SFP28, 1310nm 10km

EdgeOptic's MMA2L20-AR compatible is an NVIDIA-coded version of the EdgeOptic 25G-SFP28-10 multi-vendor 25GBASE-LR transceiver. The same universal optical engine ships across multiple vendor codes; on this part the EEPROM is programmed so NVIDIA networking equipment identifies it as a native MMA2L20-AR. The module delivers 25 Gigabit Ethernet over duplex single-mode fiber at 1310 nm, reaching 10 km in line with IEEE 802.3cc and the SFP28 MSA.

The MMA2L20-AR began as a Mellanox Technologies product. NVIDIA completed its acquisition of Mellanox in 2020 and now documents and sells the part under the NVIDIA networking brand. The hardware is unchanged; only the brand on the datasheet differs. This page covers the NVIDIA-branded ordering path, and EdgeOptic also lists the part under the Mellanox vendor category for engineers who hold the older part records.

Optically the transceiver pairs a DML laser transmitter with a PIN photodiode receiver. Launch power ranges from a minimum of −7 dBm to a maximum of +2 dBm, receiver sensitivity is −12 dBm, and the overload point is +3 dBm, giving a 5 dB optical path loss budget across the 10 km single-mode span. The duplex LC module operates from 0 to 70 °C and draws up to 1.2 W. Digital diagnostics per SFF-8472 expose live temperature, supply voltage, laser bias, and transmit and receive optical power to the host.

NVIDIA documents the OEM MMA2L20-AR as a 25GBASE-LR module, with 10G operation available by disabling retiming through host firmware or hardware control. The EdgeOptic 25G-SFP28-10 platform behind this compatible carries the full dual-rate envelope, supporting 25G Ethernet at 25.78 Gbps and 10G Ethernet at 10.31 Gbps depending on host port configuration. The module itself does not perform forward error correction; where the link needs RS-FEC, the host applies it. The part works on NVIDIA ConnectX and BlueField based platforms used in data center site interconnect, mobile backhaul, and service provider aggregation; verify port assignment against the host transceiver table before deployment.

Built to the SFP28 MSA, SFF-8431, SFF-8432, and SFF-8472 specifications and CE and RoHS certified, the MMA2L20-AR compatible is backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. It ships next business day from EU stock with a lifetime warranty. For volume pricing or coding questions, contact our sales team.
