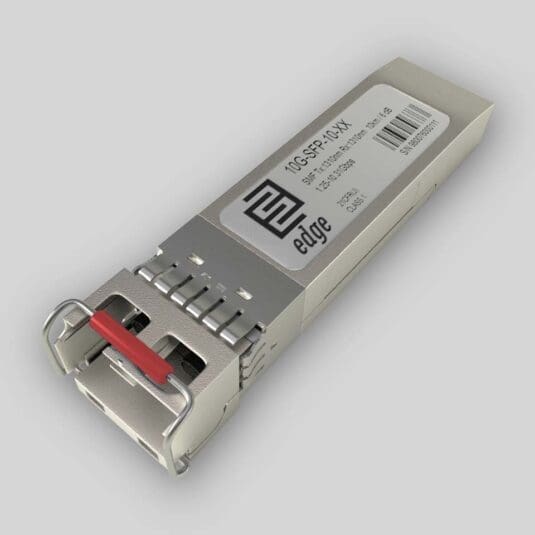

TXM431-LR TP-LINK Compatible 10G SFP+ LR Module
TP-LINK compatible TXM431-LR - Key Features
- Compatibility: TP-LINK
- Media Type: Single-Mode Fiber (SMF)
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 10 km
- Guaranteed Link Budget: 6 dB
- Tx Wavelength: 1310 nm
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
TP-LINK TXM431-LR Price
SKU:10G-SFP-10-MS
In Stock - Ships Next Business DayTP-LINK compatible TXM431-LR Specifications
Form Factor | SFP+ |
Media Type | Single-Mode Fiber (SMF) |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 10 km |
Guaranteed Link Budget | 6 dB |
TX Wavelength | 1310 nm |
RX Wavelength | 1310 nm |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supportet Ethernet Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
Rx Wavelength Bandwidth | 100 nm (1260-1360 nm) |
Minimum Transmitting Power | -8.2 dBm |
Maximum Transmitting Power | 0.5 dBm |
Receiver Sensitivity | -14.5 dBm |
Receiver Overload | 0 dBm |
Dispersion | 70-100 ps/nm |
Transmitter Type | DFB Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
TP-LINK compatible TXM431-LR Datasheet
v4Complete technical specifications and product details
TP-LINK compatible TXM431-LR Description
TXM431-LR is TP-Link's part number for a 10GBASE-LR SFP+ transceiver. EdgeOptic's compatible is a direct drop-in replacement for the original module. 1310 nm wavelength over single-mode fiber, LC duplex connector, up to 10 km reach. Built on EdgeOptic's 10G-SFP-10 platform, fully compliant with IEEE 802.3ae and the SFP+ MSA standard (SFF-8431, SFF-8432).
TP-Link positions the TXM431-LR as a 10G SFP+ module for their managed switch and router portfolio. EdgeOptic programs the EEPROM with TP-Link-recognized vendor coding, so the module registers natively in TP-Link equipment without compatibility warnings or extra configuration. Data rates from 1.25 to 10.31 Gbps. Hot-pluggable, draws 3.3V from the host slot, and requires no software configuration on TP-Link platforms — insert and it initializes automatically. The module draws under 1W, standard for the 10GBASE-LR power class. 0-70 C commercial temperature range, CE/RoHS certified.
1310 nm DFB laser, 6 dB optical link budget, 9/125 um single-mode fiber (OS1 or OS2 grade). Multi-mode fiber is not supported. DOM (Digital Optical Monitoring) per SFF-8472 is included, providing real-time tracking of TX/RX optical power, temperature, supply voltage, and laser bias current from the host management interface. On TP-Link switches, DOM telemetry is accessible through TP-Link's web management GUI or SNMP, depending on the switch model. Enables early detection of degrading fiber or dirty connectors before they cause link drops.
TP-Link lists the TXM431-LR for their 10GbE switches, routers, NICs, and media converters. EdgeOptic's compatible is EEPROM-coded for TP-Link identification and hot-pluggable in any TP-Link SFP+ port. SFP+ MSA compliance means the module physically fits standard SFP+ slots on other vendors' equipment as well, though EEPROM coding is optimized for TP-Link platforms. TP-Link doesn't enforce hard vendor lock on SFP+ slots — compatible modules operate without firmware restrictions on current TP-Link firmware versions.
CE/RoHS certified, Class 1 laser safety compliant. Volume discounts available for TP-Link environments deploying multiple SFP+ modules. Part of the EdgeOptic 10G-SFP-10 product family, which includes vendor-coded 10GBASE-LR modules for all major manufacturers. Each module ships with individual test results and is backed by a lifetime warranty. For volume pricing or compatibility questions -- contact our sales team.
Frequently Asked Questions
Can the TXM431-LR be used in non-TP-Link switches?
MSA-compliant (SFF-8431/SFF-8432) and IEEE 802.3ae compliant, so it fits and operates in any standard SFP+ slot. EEPROM is coded for TP-Link. In non-TP-Link equipment, the module functions but may register as unrecognized or third-party depending on host firmware.
