BIDI-25G-SFP28-20A

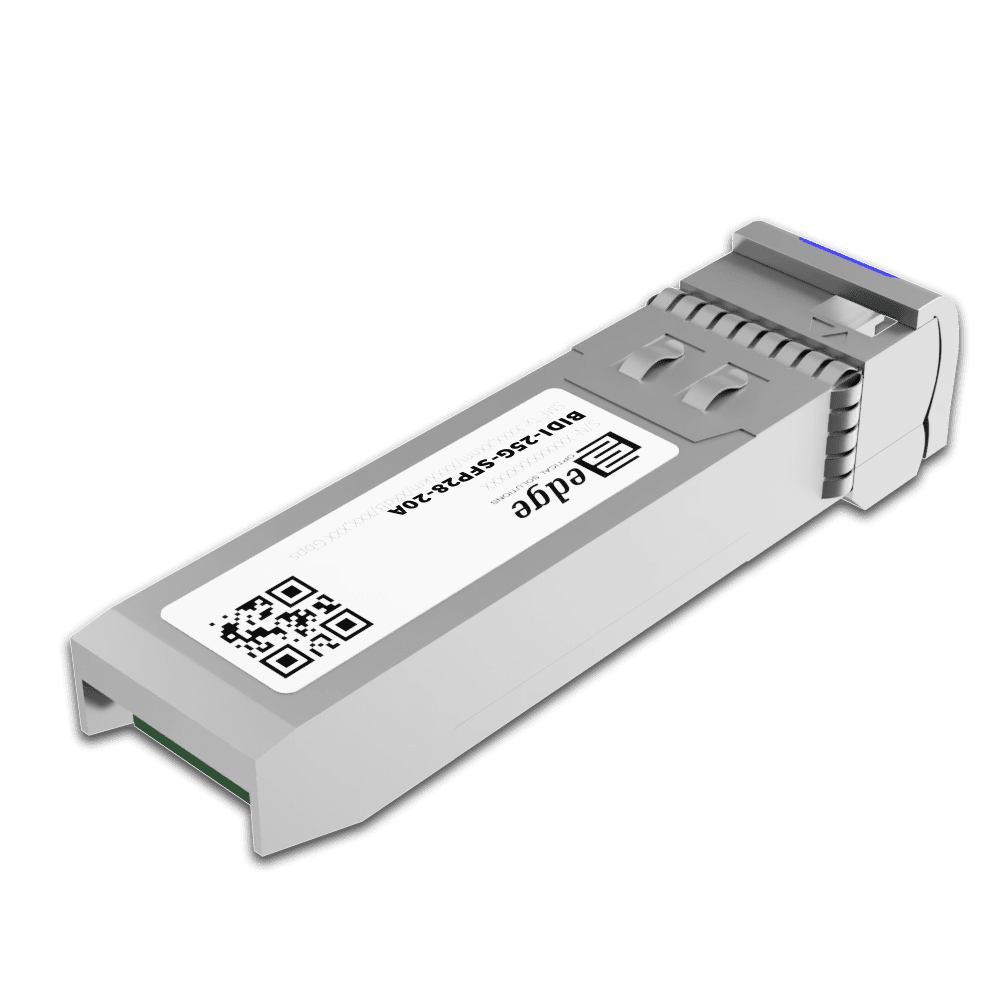

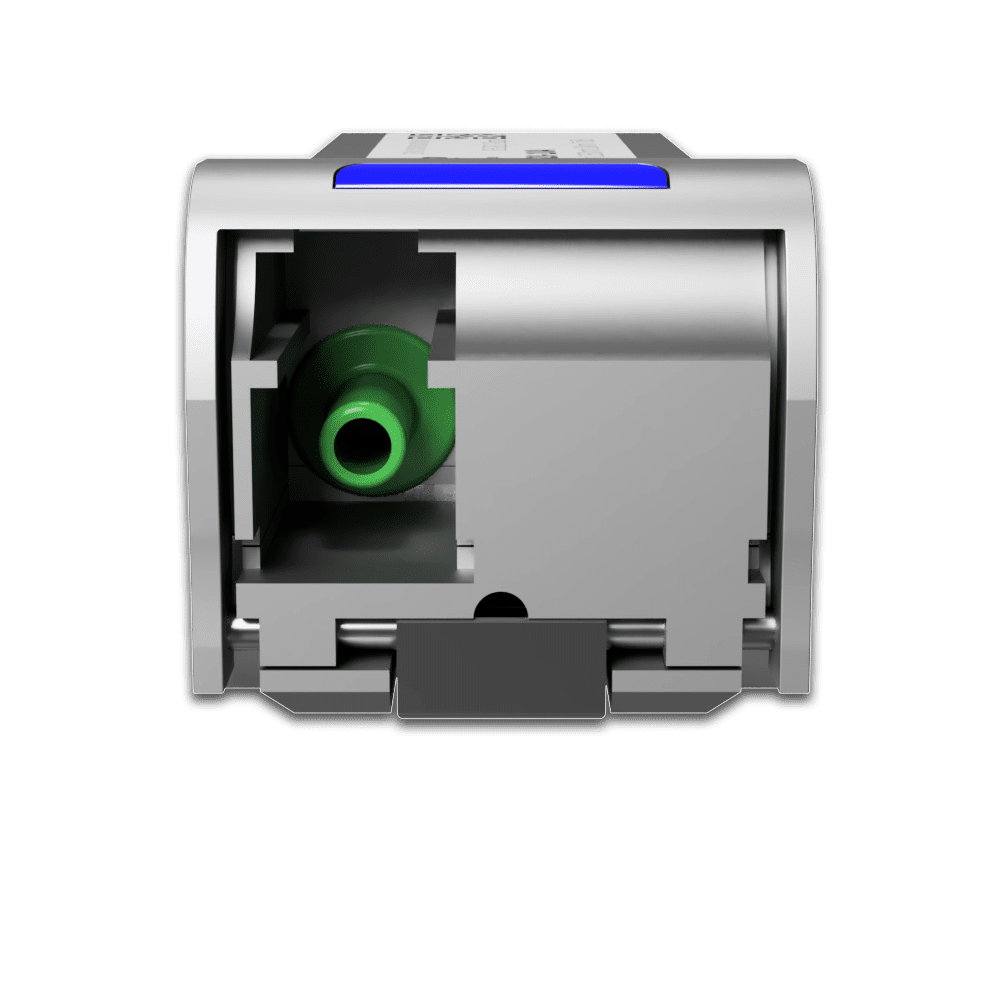

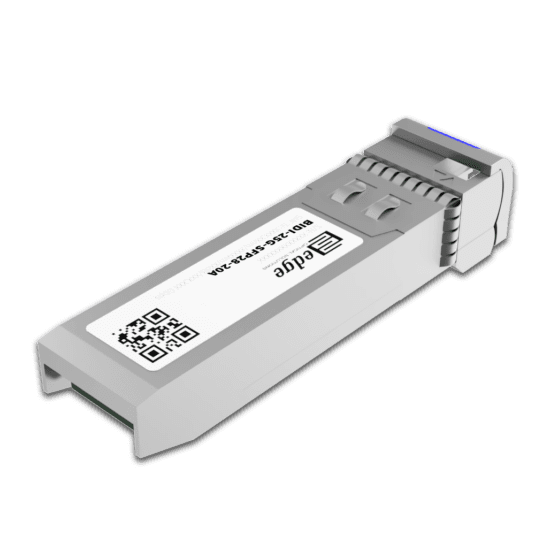

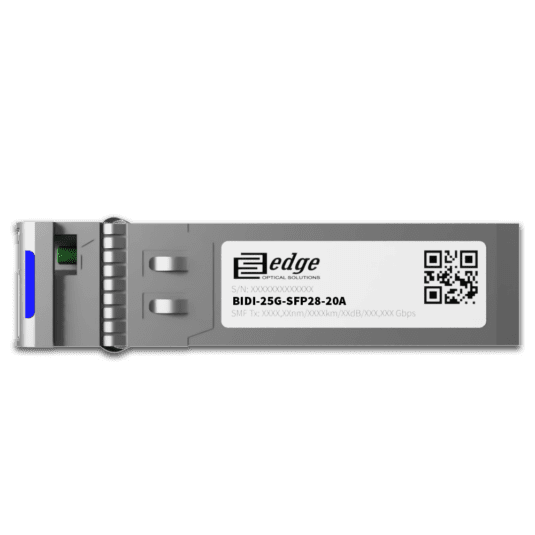

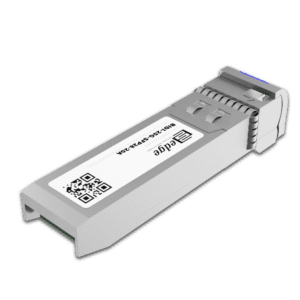

Multi-Vendor MSA Compatible BIDI 25GBASE-LR A SFP28 Module: BIDI-25G-SFP28-20A
# Key Highlights
- Type:SFP28
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength:1270 nm. / 1330 nm.
- Fiber Type:Single-Mode Fiber (SMF)
- Connectors:Single LC
- Optical Budget:13.3 dB
- Max. Distance:20km
- Data Rate:8.5-28.1 Gbps
- DDM/DOM:Supported
- Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: BIDI-25G-SFP28-20A
€39.04
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1270 nm. |
| RX Wavelength: | 1330 nm. |
| Minimum Optical Budget: | 13.3 dB |
| Maximum Distance: | 20km |
| Supported Data Rate: | 8.5-28.1 Gbps |
| Supported Applications: | 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Single LC |
| Tx Wavelength Bandwidth: | 20nm (1260 – 1280 nm) |
| Rx Wavelength Bandwidth: | 20 nm (1320-1340 nm) |
| Minimum Transmitting Power: | 0 dBm |
| Maximum Transmitting Power: | 5 dBm |
| Receiver Sensitivity: | -13.3 dBm |
| Receiver Overload: | 0.5 dBm |
| Transmitter Type: | DFB Laser |
| Receiver Type: | PIN photodiode |
| Power: | +3.3V single power supply |
| Chipset: | II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo |
| Compliance: | RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP+ MSA |
# Product Documentation
# Product Description
BIDI-25G-SFP28-20A is a Tx:1270nm Rx:1330nm BIDI 25GBASE-LR 20km Multi-Vendor MSA Compatible SFP28 (Small Form-Factor Pluggable 28) Transceiver, operating over Single Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 13.3 dB, which in most cases is enough to reach 20 km over OS2 fiber. However, distance is just indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. BIDI-25G-SFP28-20A uses top quality DFB (Distributed Feedback Laser) transmitter and 25Gb/s PIN photodiode receiver. BIDI-25G-SFP28-20A BIDI 25GBASE-LR 20km supports DDM/DOM optical diagnostics that provide real-time diagnostic information about the present operating conditions. BIDI-25G-SFP28-20A operates in Standard 0°-70°C temperature range and has Single LC interface. BIDI-25G-SFP28-20A BIDI 25GBASE-LR 20km SFP28 support 8.5-28.1 Gbps data rate and is designed for 25G Ethernet (25.78 Gbps) and 10G Ethernet (10.31 Gbps) applications. BIDI-25G-SFP28-20A SFP28 Single Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular use cases are in Internet Service Provider (ISP) Access and Metro Networks Data Center Core Networks and Enterprise Campus Networks.
BIDI-25G-SFP28-20A BIDI 25GBASE-LR 20km SFP28 transceiver is CE/RoHS certified and is compliant with product safety standards. BIDI-25G-SFP28-20A is fully compliant to SFF-8431 and SFF-8472 Multi Source Agreement (MSA), IEEE 802.3by 25 Gb/s specification. Consequently, compliance to above standards guarantees that module is compatible and works with majority of networking equipment, where is not implemented special algorithm for protection against third party modules. However – our technical team has accumulated deep expertise in custom-encoded firmware’s for BIDI 25GBASE-LR 20km SFP28 transceiver in order to make it work in almost any brand equipment. We will be glad to know your requirements.
