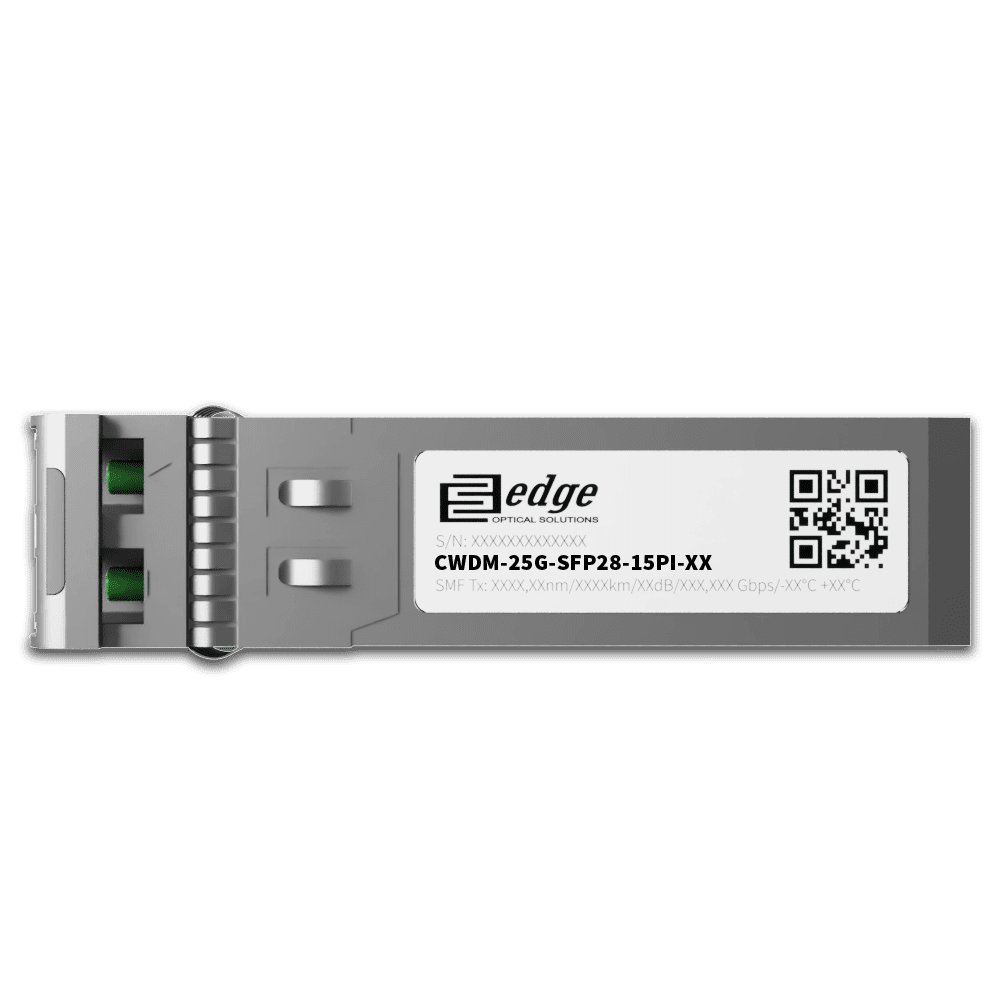

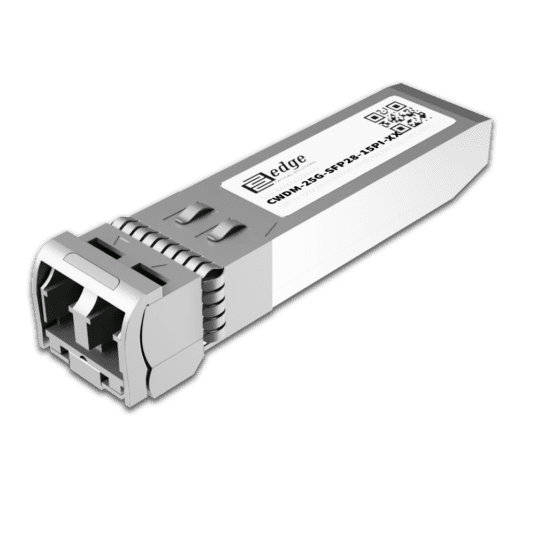

MSA Compatible CWDM 25GBASE-LR SFP28 Module

CWDM 25G SFP28 Module (Tx/Rx 1470-1610nm/1270-1610nm, 8.5 – 28.1 Gbps, Max. 15km over SMF, 14dB (w/o FEC), 19dB (with FEC), Temp. -40 to 85C)

€290.64

SKU: CWDM-25G-SFP28-15PI-XX-MS
5 - Years Warranty
Risk Free Return Policy
Reliable Testing Program
Shipping:Below 1 Week in EU Countries

Similar products:

Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

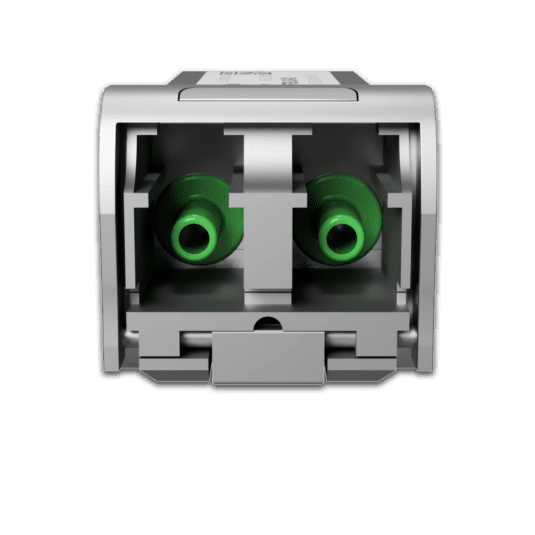

Connectors:

Double LC
TX Wavelength:

1470-1610 nm
RX Wavelength:

1270-1610 nm
Minimum Optical Budget:

14 dB w/o FEC, 19 dB with FEC
Maximum Distance:

15 km
Supported Data Rate:

8.5-28.1 Gbps
Supported Applications:

25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps)
DDM/DOM:

Supported
Forward Error Correction (FEC):

Host FEC Supported
Transmitter Type:

EML Laser
Tx Wavelength Bandwidth:

20 nm
Average Launch Power (Min) Each Lane:

0 dBm
Average Launch Power (Max) Each Lane:

7 dBm
Extinction Ratio (Min):

3.5 dB
Receiver Type:

APD Photodiode
Rx Wavelength Bandwidth:

CWDM 1270-1610nm
Average Receiver Sensitivity (Min) Each Lane:

-19 dBm
Average Receiver Sensitivity (Max) Each Lane:

-7 dBm
Receiver Overload:

-7 dBm
Temperature Range:

Industrial -40° to 85°C
Storage Temperature:

-40° to 85°C
Relative Humidity:

5 to 85%
Power Consumption:

≤1.2W
Power:

+3.3V single power supply
Compliance:

IEEE 802.3cc, SFF-8432, 25GBASE-LR, CE, Class I laser safety, RoHS, SFF-8431, SFF-8472, SFP28 MSA
Product Documentation

CWDM-25G-SFP28-15PI-XX is a Ch. 47 – Ch. 61 (1470nm – 1610nm) CWDM 25GBASE-LR Multi-Vendor MSA Compatible SFP28 (Small Form-Factor Pluggable 28) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 19 dB with FEC and 14dB without it. However, distance is just indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. CWDM-25G-SFP28-15PI-XX uses top quality EML transmitter and 25Gb/s APD photodiode receiver. CWDM-25G-SFP28-15PI-XX Ch. 47 – Ch. 61 (1470nm – 1610nm) CWDM 25GBASE-LR supports DDM/DOM optical diagnostics, operates in Industrial -40°C – +85°C temperature range and has Double LC interface. CWDM-25G-SFP28-15PI-XX support 8.5-28.1 Gbps data rate and is designed for 25G Ethernet (25.78 Gbps) and 10G Ethernet (10.31 Gbps) applications. CWDM-25G-SFP28-15PI-XX Ch. 47 – Ch. 61 (1470nm – 1610nm) nm CWDM 25GBASE-LR SFP28 transceiver is CE/RoHS certified and is compliant with product safety standards. CWDM-25G-SFP28-15PI-XX is fully compliant to SFF-8431 and SFF-8472 Multi Source Agreement (MSA), IEEE 802.3by 25 Gb/s specification.
