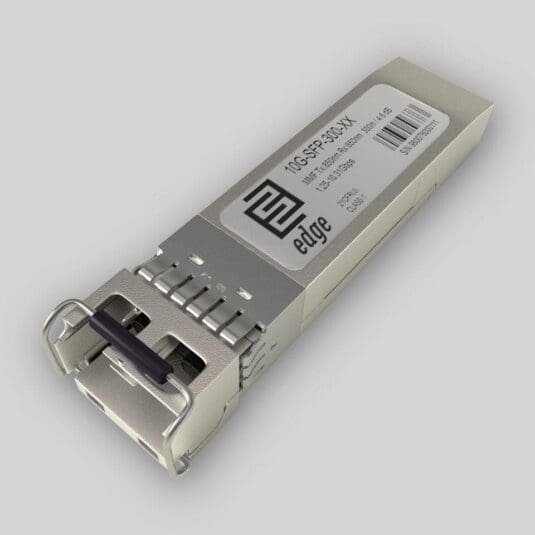

AB683624 Dell Compatible 10GBASE-SR SFP+ Transceiver
Dell (Force10) compatible AB683624 - Key Features
- Compatibility: Dell (Force10)
- Media Type: Multi-Mode Fiber (MMF) -OM3/OM4/OM5
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 400 m
- Average Link Budget: 6.1 dB
- Tx Wavelength: 850 nm
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Dell (Force10) AB683624 Price
Dell (Force10) compatible AB683624 Specifications
Form Factor | SFP+ |
Media Type | Multi-Mode Fiber (MMF) -OM3/OM4/OM5 |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 400 m |
Average Link Budget | 6.1 dB |
TX Wavelength | 850 nm |
RX Wavelength | 850 nm |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supported Ethernet Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 20 nm (840-860 nm) |
Rx Wavelength Bandwidth | 20 nm (840-860 nm) |
Minimum Transmitting Power | -5 dBm |
Maximum Transmitting Power | 0 dBm |
Receiver Sensitivity | -11.1 dBm |
Receiver Overload | 0 dBm |
Dispersion | 110 ps/nm |
Transmitter Type | VSCEL Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
Dell (Force10) compatible AB683624 Datasheet
v3Complete technical specifications and product details
Dell (Force10) compatible AB683624 Description
EdgeOptic’s 10G-SFP-300 compatible is a Dell-coded 10GBASE-SR SFP+ transceiver carrying the AB683624 part number. The AB6-prefix is Dell’s newer component numbering convention that started appearing on 15th and 16th generation PowerEdge platforms (R750, R760) and associated Dell NIC accessories. This part number supersedes the older A70-prefix numbers (A7004438, A7039191) in Dell’s current ordering system and is the SKU that Dell’s online configurator returns for 10GBASE-SR SFP+ on current-generation servers. The module operates at 850 nm over multimode fiber with a 6.1 dB link budget, reaching 300 m on OM3 or 400 m on OM4 cabling. Line rate is 10.3125 Gbps per IEEE 802.3ae.
The transceiver uses an 850 nm VCSEL transmitter and PIN photodiode receiver with LC duplex connector. DDM reports optical power, temperature, laser bias current, and supply voltage to the host NIC driver. Operating range is 0 to 70 degrees C. SFP+ MSA compliant per SFF-8431/SFF-8432. EdgeOptic programs Dell-recognized EEPROM vendor and product codes, so the module registers without warnings on Broadcom 57416, Intel E810, and Broadcom 57416, Intel E810, adapters found in current-generation PowerEdge servers. No NIC firmware updates or iDRAC configuration changes are needed after installation, and the module supports hot-insertion in running servers. The AB683624 compatible is also validated for Dell PowerEdge XR-series rugged edge servers with 10G NIC options.
CE and RoHS certified, manufactured to the SFF-8432 standard. Pre-shipment testing verifies optical power, connector cleanliness, and EEPROM data integrity. The AB683624 is commonly ordered for new-build PowerEdge R760 and HS-series rack deployments, Dell APEX private cloud infrastructure where 10G server connectivity is specified by part number, and maintenance spares for existing Dell environments migrating from A70-prefix SKUs to current Dell ordering codes. Organizations standardizing on Dell’s current component numbering will find the AB683624 in the latest PowerEdge server configurator output and Dell ProDeploy documentation. This is also the correct Dell part number for 10G SR optics on Dell PowerFlex hyper-converged nodes. For cross-reference questions or volume pricing, contact our sales team.
Frequently Asked Questions
Does the Dell AB683624 replace the older A7004438 and A7039191 part numbers?
The AB683624 is Dell's current-generation part number for 10GBASE-SR SFP+ on PowerEdge 15G/16G platforms. It has the same optical specifications as the A7004438 and A7039191. If a Dell system's firmware or documentation references the AB683624 specifically, order this SKU. EdgeOptic codes the EEPROM to match the exact Dell part number.
Which Dell NIC adapters are compatible with the AB683624?
The AB683624 works with Broadcom 57416, Intel E810, and Mellanox ConnectX-6 Lx dual-port 10G SFP+ adapters installed in Dell PowerEdge 15G and 16G servers. EdgeOptic's EEPROM encoding ensures the NIC driver and iDRAC accept the module without configuration changes.
