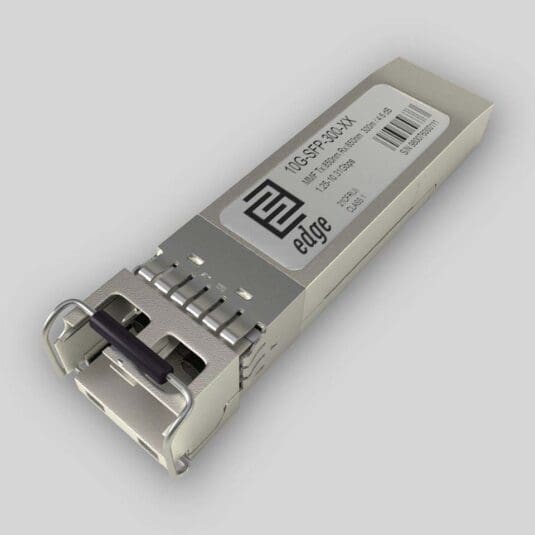

Extreme Networks 10GB-SR-SFPP Compatible 10GBASE-SR SFP+ Transceiver
Extreme compatible 10GB-SR-SFPP - Key Features
- Compatibility: Extreme
- Media Type: Multi-Mode Fiber (MMF) -OM3/OM4/OM5
- Fiber Count: Duplex
- Connector: Double LC/UPC
- Maximum Distance: 400 m
- Average Link Budget: 6.1 dB
- Tx Wavelength: 850 nm
- Supported Data Rate: 1.25 Gbps - 11.32 Gbps
- DDM/DOM: Supported
- Temperature Range: Standard 0°-70°C
Extreme 10GB-SR-SFPP Price
Extreme compatible 10GB-SR-SFPP Specifications
Form Factor | SFP+ |
Media Type | Multi-Mode Fiber (MMF) -OM3/OM4/OM5 |
Fiber Count | Duplex |
Connector | Double LC/UPC |
Maximum Distance | 400 m |
Average Link Budget | 6.1 dB |
TX Wavelength | 850 nm |
RX Wavelength | 850 nm |
Supported Data Rate | 1.25 Gbps - 11.32 Gbps |
Supported Ethernet Applications | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps) |
Supported Fiber Channel Applications | 10G Fiber Channel (10.52 Gbps), 1G Fiber Channel (1.0625 Gbps), 2G Fiber Channel (2.125 Gbps), 4G Fiber Channel (4.25 Gbps), 8G Fiber Channel (8.5 Gbps) |
SDH/SONET Standards | STM-64 (9.95Gbps) |
DDM/DOM | Supported |
Tx Wavelength Bandwidth | 20 nm (840-860 nm) |
Rx Wavelength Bandwidth | 20 nm (840-860 nm) |
Minimum Transmitting Power | -5 dBm |
Maximum Transmitting Power | 0 dBm |
Receiver Sensitivity | -11.1 dBm |
Receiver Overload | 0 dBm |
Dispersion | 110 ps/nm |
Transmitter Type | VSCEL Laser |
Receiver Type | PIN photodiode |
Temperature Range | Standard 0°-70°C |
Power | +3.3V single power supply |
Compliance | CE,Class 1 FDA and IEC60825-1 Laser Safety Compliant,RoHS,SFF-8431,SFP MSA |
Extreme compatible 10GB-SR-SFPP Datasheet
v3Complete technical specifications and product details
Extreme compatible 10GB-SR-SFPP Description
EdgeOptic's 10GB-SR-SFPP compatible is an Extreme Networks-coded version of the EdgeOptic 10G-SFP-300 multi-vendor 10GBASE-SR SFP+ transceiver, supplied for 10 Gigabit Ethernet uplinks on Extreme Networks Summit and ExtremeSwitching platforms. Extreme-recognized EEPROM lets the optic register cleanly on ExtremeXOS SFP+ cages without an unsupported-transceiver alert. 10GB-SR-SFPP is the Extreme ordering form for the 10GBASE-SR SFP+ optic in Extreme's accessories catalog, distinct from the cousin SKU 10301 which carries a different EEPROM identifier.
850 nm VCSEL transmitter, PIN photodiode receiver, multi-mode duplex LC. Reach is up to 300 m on OM3 and 400 m on OM4 multi-mode fiber. TX output power runs −5 to 0 dBm, receiver sensitivity −11.1 dBm, link budget 6.1 dB. DDM/DOM supported via SFF-8472 for live link diagnostics. Compliance: SFF-8431, SFP MSA, IEEE 802.3ae 10GBASE-SR, RoHS, IEC60825-1 Class 1 laser safety. Operating range 0 to 70°C commercial.
Compatible with Extreme Networks Summit X670, X670-G2, X690 and X870 series switches running ExtremeXOS, as well as ExtremeSwitching X-series platforms with 10G SFP+ ports. Engineers cross-referencing Extreme's older 10301 SKU should treat 10GB-SR-SFPP as a separate ordering code with its own EEPROM identifier in Extreme's inventory tools; verify the host switch's supported optic list against Extreme's Transceiver Compatibility Matrix before substituting. For VOSS-based VSP platforms inherited via the Avaya networking acquisition, verify support against Extreme's compatibility documentation rather than assuming family-level compatibility.
Within the EdgeOptic 10G-SFP-300 multi-vendor platform, the same physical SFP+ hardware ships under more than 80 vendor codes covering 10G Ethernet, 1G Ethernet fallback, and the 1G to 10G Fibre Channel rate range. For Extreme Networks deployments, 10GB-SR-SFPP is the Extreme-coded form; for other host vendors the equivalent EdgeOptic optic ships coded for that vendor's EEPROM identifier.
Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty included. For Summit and ExtremeSwitching version coverage, VSP / VOSS deployment questions, or alternative Extreme OEM-coded ordering routes, contact our sales team.
10GB-SR-SFPP FAQ
What is the difference between Extreme 10GB-SR-SFPP and Extreme 10301?
10GB-SR-SFPP and 10301 are both Extreme Networks 10GBASE-SR SFP+ ordering codes. They share the same optical specification (850 nm VCSEL, 300 m OM3, 400 m OM4) but carry distinct EEPROM identifiers, so an Extreme inventory tool tracks them as separate optic line items. Engineers with legacy 10301 spare stock should verify cross-substitution against Extreme's Transceiver Compatibility Matrix for the specific switch model and ExtremeXOS release before swapping; for new ordering the 10GB-SR-SFPP form is the current Extreme accessories catalog code.
Does ExtremeXOS report DDM values for the compatible 10GB-SR-SFPP?
Yes, the module implements SFF-8472 DDM registers, so ExtremeXOS reports transceiver temperature, supply voltage, TX bias, TX power and RX power through the ExtremeXOS transceiver diagnostics commands on Summit and X-series switches. The EEPROM is programmed with an Extreme-recognized identifier so the SFP+ inventory view classifies the optic without an unsupported-transceiver warning. Verify the specific ExtremeXOS release supports the desired DDM report format, particularly on older Summit platforms running pre-30.x ExtremeXOS.
