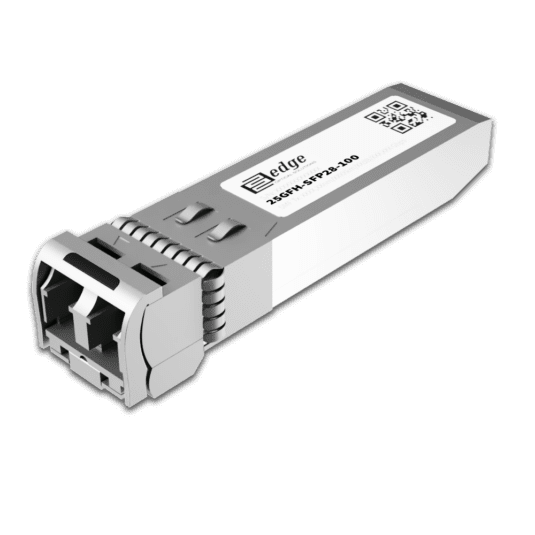

25GFH-SFP28-100

25GFH-SFP28-100

MSA Compatible 25GE SR eCPRI / CPRI SFP28 Module

Double Fiber 25G Fronthaul SFP28 Module (Tx/Rx 850/850nm, 8.5 – 28.1 Gbps, Max. 100m over MMF, 2.6 dB, Temp. 0-70C, LC Connector)

€14.53

SKU: 25GFH-SFP28-100-MS
5 - Years Warranty
Risk Free Return Policy
Reliable Testing Program
Shipping:Below 1 Week in EU Countries

Similar products:

Key Technical Data
Media Type:

Multi-Mode Fiber (MMF)
Connectors:

Double LC
TX Wavelength:

850 nm.
RX Wavelength:

850 nm.
Minimum Optical Budget:

5.3 dB
Maximum Distance:

100m
Supported Data Rate:

8.5-28.1 Gbps
Supported Applications:

CPRI option 10 (24.33 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), CPRI option 9 (12.165 Gbps)
DDM/DOM:

Supported
Forward Error Correction (FEC):

Host FEC Supported
Transmitter Type:

VSCEL Laser
Tx Wavelength Bandwidth:

20 nm (840-860 nm)
Average Launch Power (Min) Each Lane:

-5 dBm
Average Launch Power (Max) Each Lane:

2.4 dBm
Extinction Ratio (Min):

3 dB
Receiver Type:

PIN photodiode
Rx Wavelength Bandwidth:

20 nm (840-860 nm)
Average Receiver Sensitivity (Min) Each Lane:

-10.3 dBm
Average Receiver Sensitivity (Max) Each Lane:

2.4 dBm
Receiver Overload:

2.4 dBm
Temperature Range:

Standard 0°-70°C
Storage Temperature:

-40° to 85°C
Relative Humidity:

5 to 85%
Power Consumption:

≤0.3W
Power:

+3.3V single power supply
Compliance:

SFF-8432, 25GBASE-SR, CE, Class I laser safety, RoHS, SFF-8431, SFF-8472, SFP28 MSA
Product Documentation

25GFH-SFP28-100 is a 25GE SR eCPRI (enhanced CPRI) / CPRI Fronthaul Multi-Vendor MSA Compatible SFP28 (Small Form-Factor Pluggable 28) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 2.6 dB, which in most cases is enough to reach 100 m over OM4 multi-mode fiber, or 70 m over OM3 multi-mode fiber. However, distance is just indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. 25GFH-SFP28-100 uses top quality VSCEL (Vertical Cavity Surface Emitting Laser) transmitter and 25Gb/s PIN photodiode receiver. 25GFH-SFP28-100 25GE SR eCPRI / CPRI supports DDM/DOM optical diagnostics that provide real-time diagnostic information about the present operating conditions. 25GFH-SFP28-100 operates in Standard 0°-70°C temperature range and has Double LC interface. 25GFH-SFP28-100 25GE SR eCPRI / CPRI SFP28 support 8.5-28.1 Gbps data rate and eCPRI / CPRI Option 10 (24.33 Gbps), CPRI Option 9 (12.165 Gbps), CPRI Option 8 (10.138 Gbps), CPRI option 7 (9.830 Gbps) applications. 25GFH-SFP28-100 SFP28 Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular use cases are in Mobile Carrier Networks, thus 5G fronthaul and O-RAN (open radio access network) applications.
25GFH-SFP28-100 25GE SR eCPRI / CPRI SFP28 transceiver is CE/RoHS certified and is compliant with product safety standards. 25GFH-SFP28-100 is fully compliant to SFF-8431 and SFF-8472 Multi Source Agreement (MSA), eCPRI, CPRI and IEEE 802.3by 25 Gb/s specification. Consequently, compliance to above standards guarantees that module is compatible and works with majority of networking equipment, where is not implemented special algorithm for protection against third party modules. However – our technical team has accumulated deep expertise in custom-encoded firmware’s for 25GE SR eCPRI / CPRI SFP28 transceiver in order to make it work in almost any brand equipment. We will be very glad to know your requirements.
