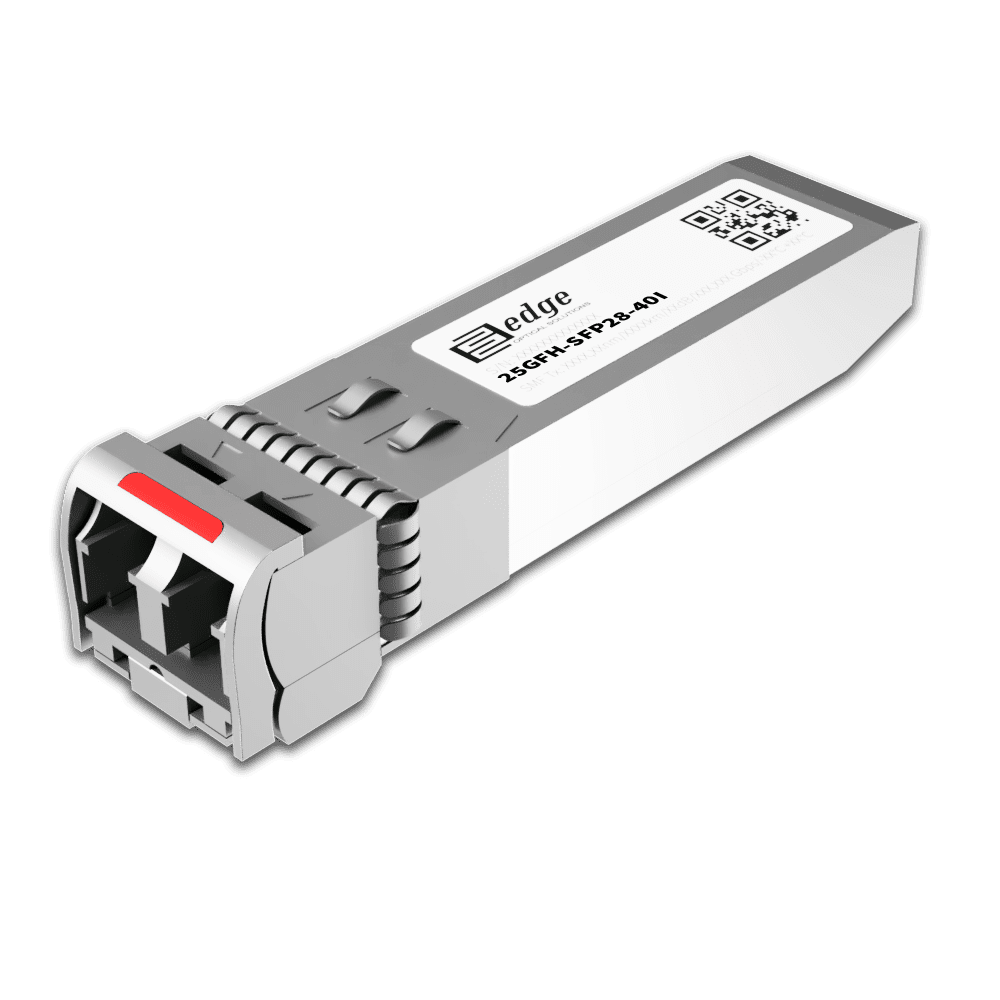

25GFH-SFP28-40I

25GFH-SFP28-40I

MSA Compatible 25GE ER IND eCPRI SFP28 Module

Double Fiber 25G Fronthaul SFP28 Module (Tx/Rx 1310/1310nm, 8.5 – 28.1 Gbps, Max. 40km over SMF, 16 dB, Temp. -45 to 85C, LC Connector)

€99.91

SKU: 25GFH-SFP28-40I-MS
5 - Years Warranty
Risk Free Return Policy
Reliable Testing Program
Shipping:Below 1 Week in EU Countries

Similar products:

Key Technical Data
Media Type:

Single-Mode Fiber (SMF)
Connectors:

Double LC
TX Wavelength:

1310 nm.
RX Wavelength:

1310 nm.
Minimum Optical Budget:

19 dB
Maximum Distance:

40km
Supported Data Rate:

8.5-28.1 Gbps
Supported Applications:

CPRI option 10 (24.33 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), CPRI option 9 (12.165 Gbps)
DDM/DOM:

Supported
Forward Error Correction (FEC):

Host FEC Supported
Transmitter Type:

DML Laser
Tx Wavelength Bandwidth:

30 nm
Average Launch Power (Min) Each Lane:

0 dBm
Average Launch Power (Max) Each Lane:

6 dBm
Extinction Ratio (Min):

4 dB
Receiver Type:

APD Photodiode
Rx Wavelength Bandwidth:

30 nm
Average Receiver Sensitivity (Min) Each Lane:

-19 dBm
Average Receiver Sensitivity (Max) Each Lane:

-5 dBm
Receiver Overload:

-3 dBm
Temperature Range:

Industrial -40° to 85°C
Storage Temperature:

-40° to 85°C
Relative Humidity:

5 to 85%
Power Consumption:

≤1.5W
Power:

+3.3V single power supply
Compliance:

IEEE 802.3cc, SFF-8432, 25GBASE-ER, CE, Class I laser safety, CPRI Option 10/eCPRI, RoHS, SFF-8431, SFF-8472, SFP28 MSA
Product Documentation

25GFH-SFP28-40I is an Industrial Temperature 25GE ER eCPRI (enhanced CPRI) / CPRI Fronthaul Multi-Vendor MSA Compatible SFP28 (Small Form-Factor Pluggable 28) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 16 dB, which in most cases is enough to reach 40 km over OS2 fiber. However, distance is just indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. 25GFH-SFP28-40I uses top quality DFB (Distributed Feedback Laser) transmitter and 25Gb/s APD (Avalanche photodiode) receiver. 25GFH-SFP28-40I Industrial Temperature 25GE ER eCPRI / CPRI supports DDM/DOM optical diagnostics that provide real-time diagnostic information about the present operating conditions. 25GFH-SFP28-40I operates in Industrial -45°C – +85°C temperature range and has Double LC interface. 25GFH-SFP28-40I Industrial Temperature 25GE ER eCPRI / CPRI SFP28 support 8.5-28.1 Gbps data rate and eCPRI / CPRI Option 10 (24.33 Gbps), CPRI Option 9 (12.165 Gbps), CPRI Option 8 (10.138 Gbps), CPRI option 7 (9.830 Gbps) applications. 25GFH-SFP28-40I SFP28 Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular use cases are in Mobile Carrier Networks, thus 5G fronthaul and O-RAN (open radio access network) applications.
25GFH-SFP28-40I Industrial Temperature 25GE ER eCPRI / CPRI SFP28 transceiver is CE/RoHS certified and is compliant with product safety standards. 25GFH-SFP28-40I is fully compliant to SFF-8431 and SFF-8472 Multi Source Agreement (MSA), eCPRI, CPRI and IEEE 802.3by 25 Gb/s specification. Consequently, compliance to above standards guarantees that module is compatible and works with majority of networking equipment, where is not implemented special algorithm for protection against third party modules. However – our technical team has accumulated deep expertise in custom-encoded firmware’s for Industrial Temperature 25GE ER eCPRI / CPRI SFP28 transceiver in order to make it work in almost any brand equipment. We will be glad to know your requirements.
