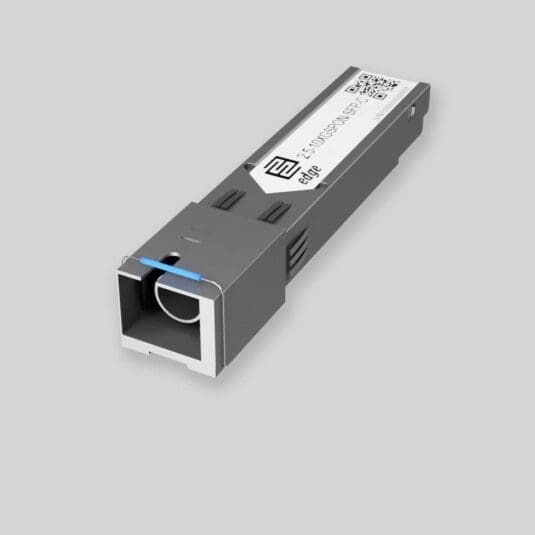

OM5270S-D2SW Huawei Compatible XGSPON & GPON OLT Combo SFP C+ Module

Huawei compatible OM5270S-D2SW is XGSPON & GPON OLT SFP transceiver, operating over Single-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 34dB for XGPON and 35dB for GPON technology, with in most cases is enough to reach 20km distance. However, distance is just indicative parameter calculated for comfort of identification – eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. Our Huawei compatible transceiver uses top quality EML Laser transmitter with operating at nominal wavelength 1577nm for XGPON and DML Laser transmitter with operating at nominal wavelength of 1490nm for GPON technology. APD High quality Avalanche Photodiode receiver. XGSPON & GPON OLT transceiver supports DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Huawei compatible OM5270S-D2SW module operates in Industrial -40°-85°C temperature range and has Single SC interface. xPON OLT SFP+ supports 9.953Gbps (Burst Mode RX9.953G/2.488Gbps application) data rate and 2.488Gbps, (Burst Mode RX1.244Gbps application) such applications as GPON and XGPON. XGSPON & GPON OLT SFP+ Single Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber to The Home access level GPON and XGPON system.

Huawei compatible OM5270S-D2SW transceiver is CE/RoHS certified and it is Compliant with product safety standards. XGSPON & GPON Transceiver is fully compliant to SFF-8472, ITU-TG.9807.1 and ITU-TG.987.2, FCC 47 CFR Part 15, Class B, FDA 21 CFR 1040.10 and 1040.11. Consequently, it means that our XGSPON & GPON OLT transceiver module is compatible with 80% of networking equipment, where is not implemented a special algorithm for protection against third party modules. However – we can provide XGSPON & GPON OLT transceiver with custom-encoded firmware in order to make it work almost in any equipment. Therefore, we will be glad to know what your requirement is. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and XGPON, GPON transceiver EEPROM memory data validation tests. For any inquiries – Contact Us!
