10G-NIC-82599EN-1O

Network Interface Card: 10G-NIC-82599EN-1O

# Key Highlights
  • NIC Category: Single Port 10G SFP+ PCIe
  • Controller: Intel® 82599EN
  • System Interface Type: PCIe v2.0 x8(5GT/s or 2.5GT/s)
  • Ports: 1x10G SFP+
  • Data rate per port: 10/1GbE
  • Network Operating Systems (NOS): Windows 64-bit, Linux, FreeBSD
  • Management: Intel® PROSet Utility
  • Performance: Load balancing on multiple CPUs
  • Unified Networking: iSCSI, FCoE, NFS
  • Clock: Time Sync (IEEE 1588*, 802.1as)
# Pricing & Ordering
SKU: 10G-NIC-82599EN-1O

58.19

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Product type:

Network Interface Cards

NIC Category:

Dual Port 10G SFP+ PCIe

Controller Silicon:

Intel® 82599EN

Controller type:

Ethernet

Connector type:

SFP+

Number of ports:

1

Data rate per port:

10/1GbE

Interconnection Distance:

Per SFP+ used

Bus interface:

PCI-E 2.0 x8

Bus transfer rate:

5GT/s or 2.5GT/s

Storage Over Ethernet:

iSCSI, FCoE, NFS

Clock:

Time Sync (IEEE 1588*, 802.1as)

Network Operating Systems (NOS):

Windows 64-bit: 7, 2008 R2, 8, 2012, 8.1, 2012 R2, 10, 2016, 2019
Linux: RHEL 6.x/7.x, SUSE 11.x/12.x, Ubuntu 14.x/16.x
FreeBSD: 10.x/11.x

LED Status Indicators:

LINK (solid) and ACTIVITY (blinking)
LINK SPEED (green=10 Gbps; yellow=1 Gbps)

Power:

Power consumption (max): 4.8W
Operating voltage: 3.3V and 12V

Environmental Specifications:

Operating temperature: 0 °C to 55 °C
Air Flow Minimum of 100 LFM required
Storage temperature: -40 °C to 70 °C
Relative Humidity: 5% to 90% (non-condensing)

Physical Characteristics:

Dimensions (W x H): 146mm x 69mm
Ships with low-profile bracket attached to interface card. Standard bracket included in packaging.

I/O, Virtualization, Manageability and Advanced Software Features:

As per NIC controller

Compliance:

CE, FCC, ROHS

# Product Documentation
# Product Description

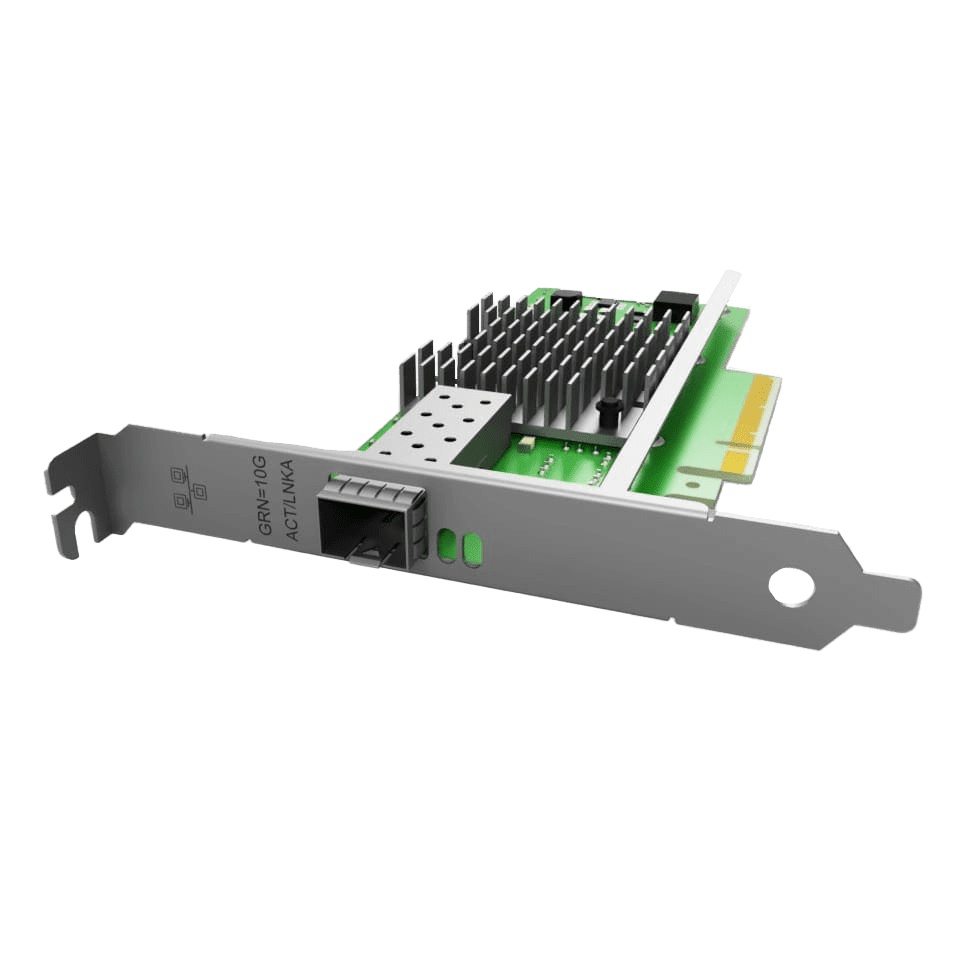

EDGE Optic 10G-NIC-82599EN-1O is Single Port 10 Gigabit Ethernet SFP+ PCI-Express Network Interface Card which is based on Intel® 82599EN Chipset. 10G-NIC-82599EN-1O card with use of it’s load balancing functions provides superior performance on multi-core processor servers and can offer leading network virtualization features, several remote boot options and wide manageability features. This NIC card provides as well flexibility for LAN and SAN networking by FCoE, iSCSI, NFS protocol support and support syn¬chronization of internal clocks according to a network master clock.

10G-NIC-82599EN-1O can run on most network operating systems and can be used as a compatible alternative for Intel, HPE, Dell, Lenovo, IBM, Cisco, Huawei, Qlogic, Supermicro and many other brand Network Interface Cards. When combined with a wide selection of EDGE Optic – Optical Transceiver Modules and Direct-Attach Cables (DAC) can provide superior flexibility in connectivity and network design.

For better overview, You are welcome to use our PCIe Network Interface Card Guide.
