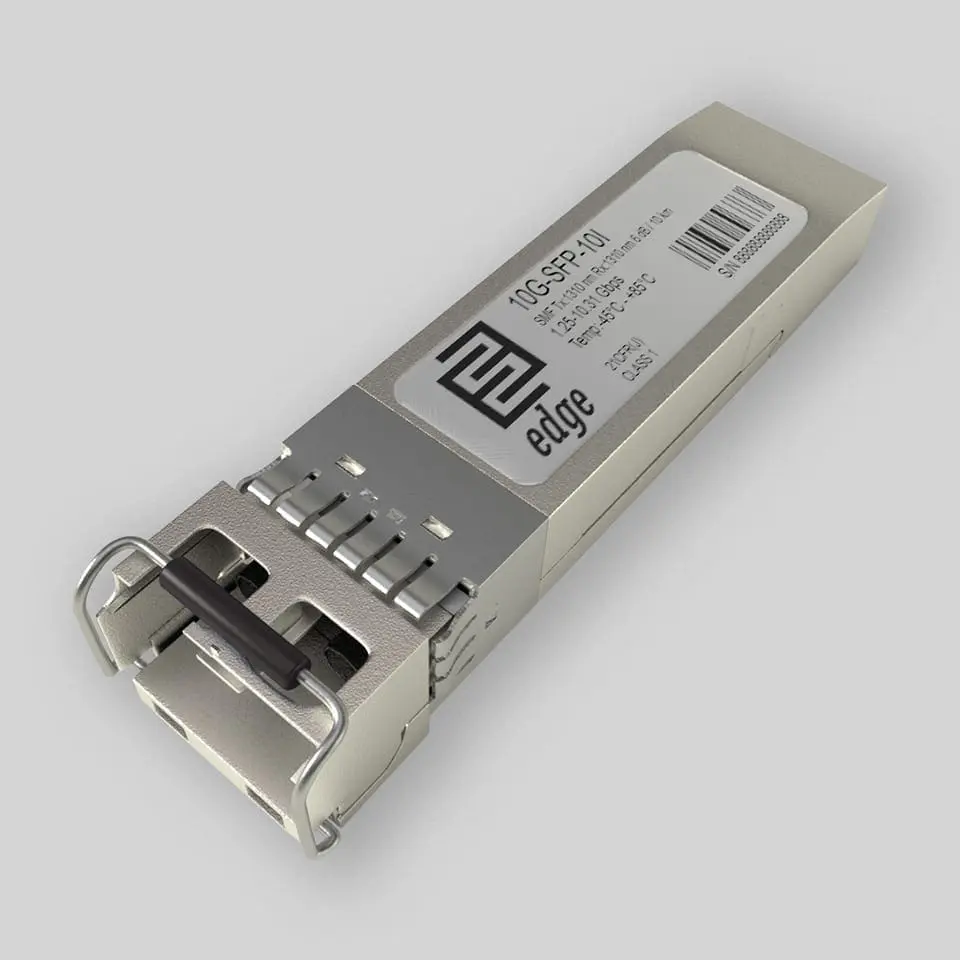

MFM1T02A-LR-I Nvidia Compatible 10GBASE-LR SFP+, 10km SMF

EdgeOptic's MFM1T02A-LR-I compatible is a Nvidia-coded version of the EdgeOptic 10G-SFP-10I multi-vendor 10GBASE-LR SFP+ transceiver. The module uses a duplex LC/UPC connector over single-mode fiber, a 1310nm DFB laser transmitter, and a PIN photodiode receiver, with the wavelength plan spanning 1260 to 1360nm. Reach is 10km with a 6dB average link budget and chromatic dispersion tolerance of 70 to 100 ps/nm. Transmit power runs -8.2 to -0.5dBm, receive sensitivity is -14.5dBm, and receive overload is 0dBm, with DDM/DOM diagnostics covering real time transmit power, receive power, bias current, supply voltage, and temperature readings. Power draw is bounded by a single 3.3V supply. Nvidia's own product brief documents this part for 10GBASE-LR Ethernet specifically; the underlying SFF-8431 hardware envelope additionally spans 1.25 to 11.32 Gbps, including 1G/2G/4G/8G/10G Fibre Channel and STM-64 SONET/SDH at 9.95 Gbps, though delivered protocol scope depends on the host platform.

The "-I" designation identifies an industrial-temperature build of this 10GBASE-LR design; it does not appear as a Nvidia ordering code, since Nvidia's own product brief documents only the base MFM1T02A-LR at a commercial 0C to 70C operating case temperature. EdgeOptic's compatible carries an industrial -45C to +85C operating range as its own build rating, separate from Nvidia's commercial-temperature specification for the base part. The module meets SFF-8431 SFP+ MSA mechanical and electrical requirements (Nvidia's base MFM1T02A-LR product brief also cites SFF-8432 compliance for the same design), and carries CE, RoHS, FDA, and IEC 60825-1 Class 1 laser safety compliance. This module carries a lifetime warranty. For project quantity pricing or an alternate vendor coding, contact our sales team.
