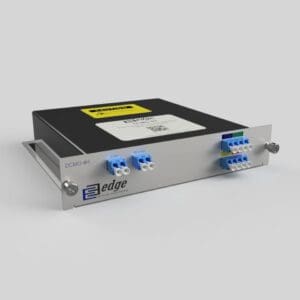

4 Channel Double Fiber Passive CWDM 2-sided OADM Unit: DCAD-4
4-Channel Double Fiber CWDM OADM Overview
Our 4-channel double fiber CWDM OADM unit enables wavelength add/drop from both network directions simultaneously. Supporting two-sided OADM functionality for ring topologies, this passive unit delivers below 1.8 dB insertion loss and 2.2 dB express channel loss. Compact LGX form factor with LC/UPC connectors for flexible metro network deployment.
- xWDM Technology: CWDM
- Package Type: LGX Cassette
- Number of Data Streams: 4
- Number of Optical Channels: 4
- Connector: LC/UPC
- Filter Technology: TFF (Thin Film Filter)
- Insertation Loss (Passband): 1.8 dB
- Operating Temperature: 0 °C - 70 °C
- MTBF: 1000000 hours
DCAD-4 OADM Pricing
SKU:DCAD-4
Special Order - Up to 4 Weeks4 Channel Double Fiber Passive CWDM 2-sided OADM Unit Specification
Product Type | OADM Unit |
Package Type | LGX Cassette |
Number of Data Streams | 4 |
Number of Optical Channels | 4 |
Connector | LC/UPC |
Operating Wavelengths | 16 CWDM Channels 1310-1610nm |
Channel Spacing | 20 nm |
Passband | ± 7.5 nm (λ center) |
Filter Technology | TFF (Thin Film Filter) |
Insertation Loss (Passband) | 1.8 dB |
Isolation Adjacent Channels | 30 dB |
Isolation Non-Adjacent Channels | 45 dB |
Channel Pass-band Ripple | 0.3 dB |
Polarization Dependent Loss (PDL) | 0.1 dB |
Polarization Mode Dispersion (PMD) | 0.1 ps |
Directivity | 50 dB |
Return Loss | 45 dB |
Maximum Power Handling | 500 mW |
Operating Temperature | 0 °C - 70 °C |
Operating Humidity | 5 % - 95 % |
Storage Temperature | -40 °C - 85 °C |
MTBF | 1000000 hours |
Compliance | CE, ISO, ITU-T G.694.2, RoHS |
4 Channel Double Fiber Passive CWDM 2-sided OADM Unit Datasheet
v1Complete technical specifications and product details
4 Channel Double Fiber Passive CWDM 2-sided OADM Unit Description
4 Channel Double Fiber Passive CWDM 2-sided OADM Unit – DCAD-4 is a member of the EDGE Optics xWDM Series product line. We designed EDGE Optics xWDM Series products to allow easy, gradual, logical, and cost-efficient expansion of network bandwidth using industry-leading passive WDM technology. The main advantage of xWDM is its passive nature – no power supply or cooling necessary, robustness with no special micro-climate requirements, and as a passive element, it has an MTBF of 100+ years. xWDM is fully data rate and line protocol neutral – it is possible to use with colored transceivers supporting applications such as 1G/10G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel. It is simple to install, and requires no configuration or maintenance. SCAD-4 is a passive two-sided (East and West) Optical Add-Drop Multiplexer (OADM) package based on Thin-Film Filter (TFF) technology, allowing to extract and add 4 data streams from ITU-T G.694.2 compatible Coarse Wavelength Division Multiplex (CWDM) link. The unit features LC/UPC connectors. DCAD-2 is manufactured as an LGX-type package, installed in 19" 1U sub rack fitting any standard equipment rack.
