100G-QSFP28-80

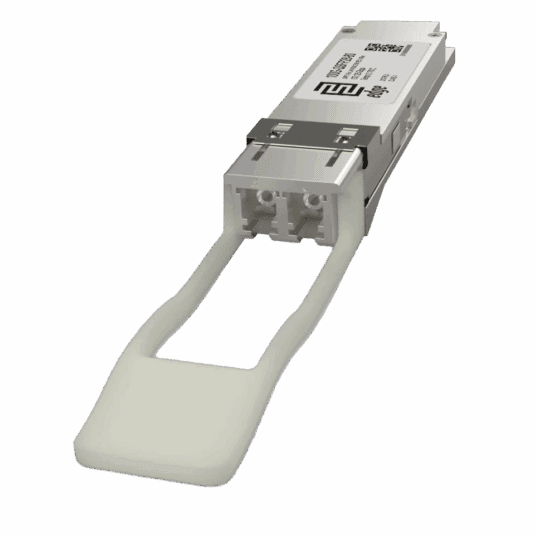

100GBASE-ZR4 MSA Compatible 100G-QSFP28-ZR4, 80KM, 103.125 Gbps, Double Fiber SMF module.
# Key Highlights
- Type:100GBASE-ZR4 QSFP28
- Compatibility:Multi-Vendor MSA Compatible
- Tx/Rx Wavelength:1295.56, 1300.05, 1304.58, 1309.14 nm
- Laser:EML Cooled LAN WDM TOSA
- Fiber Type:Single-Mode Fiber (SMF)
- Connectors:Double LC
- Optical Budget:30dB (with host FEC)
- Max. Distance:80km (with host FEC), 40km (no host FEC)
- Data Rate:103.125 Gbps
- FEC Forward Error Correction:RS-FEC and LR4 FEC Supported
- DDM/DOM:Supported
- Power Consumption:≤6.5W
- Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 100G-QSFP28-80
€1,156.16
Lead Time: 4-6 Weeks in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| Connectors: | Double LC |
| TX Wavelength: | LAN WDM 1310nm |
| RX Wavelength: | LAN WDM 1310nm |
| Minimum Optical Budget: | 27dB (with host FEC) |
| Maximum Distance: | 80km |
| Supported Data Rate: | 103.125 Gbps |
| Supported Applications: | 100G Ethernet (103.125Gbps) |
| DDM/DOM: | Supported |
| CDR (Clock and Data Recovery) chip | Supported |
| Forward Error Correction (FEC): | Host FEC Supported |
| Transmitter Type: | EML LAN WDM TOSA |
| Tx Wavelength Bandwidth: | 4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm) |
| Average Launch Power (Min) Each Lane: | 2 dBm |
| Average Launch Power (Max) Each Lane: | 6.5 dBm |
| Extinction Ratio (Min): | 6 dB |
| Receiver Type: | SOA+PIN |
| Rx Wavelength Bandwidth: | 4 LAN WDM Seperated 1310 nm Lanes (15.66 nm 1294.53 – 1310.19nm) (L0 Tx center 1295.56nm, L1 Tx center 1300.05nm, L2 Tx center 1304.58nm, L3 Tx center 1309.14nm) |
| Average Receiver Sensitivity (Min) Each Lane: | -28 dBm |
| Average Receiver Sensitivity (Max) Each Lane: | -7 dBm |
| Receiver Overload: | 5.5 dBm |
| Temperature Range: | Standard 0°-70°C |
| Storage Temperature: | -40° to 85°C |
| Relative Humidity: | 0 to 85% |
| Power Consumption: | ≤6.5W |
| Power: | +3.3V |
| Chipset: | Macom, Sumitomo, Samtech, Oclaro, Avago, II-IV |
| Compliance: | Class 1 FDA, IEC60825-1 Laser Safety Compliant, IEEE 802.3ba 100GBASE-ZR4, CE, QSFP28 MSA, RoHS, SFF-8636, SFF-8665 |
# Product Documentation
# Product Description
100G-QSFP28-80 (also know as 100G-QSFP28-ZR4) is Multi-Vendor MSA Compatible 100GBASE-ZR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology. QSFP28-100G-ZR4 has minimum guaranteed optical budget of 30 dB (with host FEC), which in most cases is enough to reach 80km distance (with host FEC) and 40km distance (without host FEC) using single-mode cable. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. 100G-QSFP28-80 uses EML cooled 4x25Gb/s LAN WDM TOSA (1295.56, 1300.05, 1304.58, 1309.14nm) laser transmitters and 4x25Gb/s SOA+PIN receivers. QSFP-100G-80KM support DDM/DOM optical diagnostics, which provide diagnostic information about the present operating conditions. Additionally QSFP28-100G-ZR4 supports RS-FEC and LR4 FEC (Forward Error Correction) function which will help receiving side detect and correct bit errors and improve the overall quality of the link. 100G-QSFP28-ZR4 operates in Standard 0°-70°C temperature range and has double LC connectors. 100GBASE-ZR4 QSFP28 support up to 103.125 Gbps data rate and such applications as 100G Ethernet (103.125 Gbps). QSFP28-100G-80km optical transceiver is multi-purpose QSFP28-80KM module used in number of different places in today’s networking environment. Most popular applications are Internet Service Provider (ISP) Fiber to the Home Aggregation and Backbone, Mobile Operator Core Networks and Mobile Backhaul and Data Center networking site interconnections.
QSFP-100G-80KM is CE/RoHS certified and it is Compliant with product safety standards. 100G-QSFP28-ZR4 (gbic-100gb-80km) Transceiver is fully compliant to QSFP28 Multi Source Agreement (MSA) and IEEE 802.3ba 100GBASE-ZR4. Consequently compliance to above standards guarantees that QSFP28-80KM module is compatible and works with majority of networking equipment, where is not implemented special algorithm for protection against third party modules. However – our technical team has accumulated deep expertise in custom-encoded firmware’s for 100GBASE-ZR4 QSFP28 transceiver in order to make it work in almost any brand equipment. Contact Us – We will be glad to know your requirements.
FAQ:
What is 100G ZR4 QSFP28 (gbic-100gb-80km)?
100G-QSFP28-80 is 100GBASE-ZR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology. Module has minimum guaranteed optical budget of 30 dB (with host FEC), which in most cases is enough to reach 80km distance (with host FEC) and 40km distance (without host FEC) using single-mode cable.
What is maximum distance 100G ZR4 QSFP28 (QSFP28-100G-80KM) can reach?
QSFP28 100G ZR4 supports the 100G data connection by using WDM multiplexing wavelength division technology. It can reach a maximum transmission distance of up to 80KM
What are popular industry naming for 100G ZR4 QSFP28?
100G ZR4 QSFP28 mostly know as QSFP28 (Quad Small Form-Factor Pluggable 28) 80 KM Transceiver.
