GBIC-SX

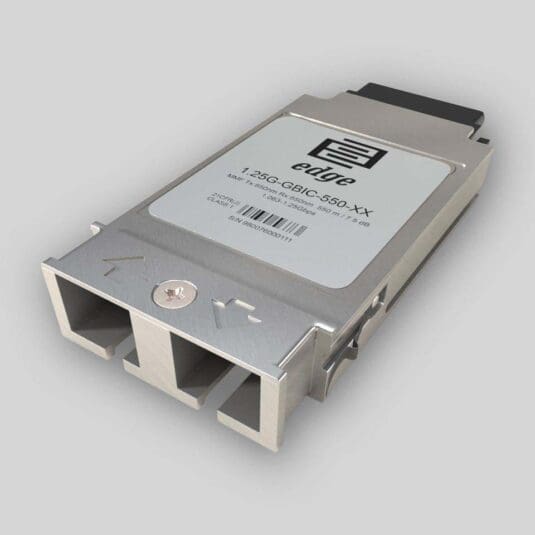

Zyxel compatible GBIC-SX GBIC Module

# Key Highlights
  • Type: GBIC
  • Compatibility: Zyxel compatible
  • Tx/Rx Wavelength: 850 nm. / 850 nm.
  • Media Type: Multi-Mode Fiber (MMF)
  • Optical Budget: 7.5 dB
  • Max. Distance: 550 m
  • Data Rate: 1.063-1.25Gbps
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 1.25G-GBIC-550-ZX

14.93

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Multi-Mode Fiber (MMF)

TX Wavelength:

850 nm.

RX Wavelength:

850 nm.

Minimum Optical Budget:

7.5 dB

Maximum Distance:

550m

Supported Data Rate:

1.063-1.25Gbps

Supported Applications:

Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)

DDM/DOM:

Not Available

Temperature Range:

Standard 0°-70°C

Connectors:

Double SC

Tx Wavelength Bandwidth:

20 nm (840-860 nm)

Rx Wavelength Bandwidth:

20 nm (840-860 nm)

Minimum Transmitting Power:

-9.5 dB

Maximum Transmitting Power:

-3 dB

Receiver Sensitivity:

-17 dBm

Receiver Overload:

-3 dBm

Dispersion:

110 ps/nm

Transmitter Type:

VSCEL Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

SEMTECH, UX

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8053 GBIC Multi-Source Agreement (MSA)

Transceiver Type:

GBIC

# Product Documentation
Multi-Vendor MSA Compatible 1.25G-GBIC-550 GBIC Datasheet

Zyxel Compatible GBIC-SX GBIC Module is based on our product 1.25G-GBIC-550. When You will order it will be encoded to be compatible with Zyxel equipment and it will be labeled with part number: 1.25G-GBIC-550-ZX, where ZX means Zyxel Compatible. Above You can download datasheet of our 1.25G-GBIC-550 product.

# Product Description

   Zyxel compatible GBIC-SX is GBIC (Gigabit Interface Converter) Transceiver, operating over Double Fiber Multi-Mode Fiber (MMF) optical cable. It has minimum guaranteed optical budget of 7.5 dB, with in most cases is enough to reach about 550 m distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality VSCEL Laser transmitter with operating at nominal wavelength 850 nm. and 850 nm. PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Zyxel compatible GBIC-SX operates in Standard 0°-70°C temperature range and has Double SC interface. GBIC support 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps)|1G Fiber Channel (1.0625 Gbps). GBIC Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber To The Home aggregation and backbone, Various Data Communication Gigabit Ethernet Links, Data Center SAN networking and other optical links.

    Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Zyxel compatible GBIC-SX GBIC Transceiver with latest platforms of Zyxel networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Zyxel platforms. However, our optical transceivers are compliant to SFF-8053 Specification for GBIC (Gigabit Interface Converter) industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and GBIC transceiver EEPROM memory data validation tests.
