100G BiDi QSFP28 ER1 40km Transceiver (Side B): BIDI-100G-Q28-SL42B
Similar Products
Same use case, different specifications

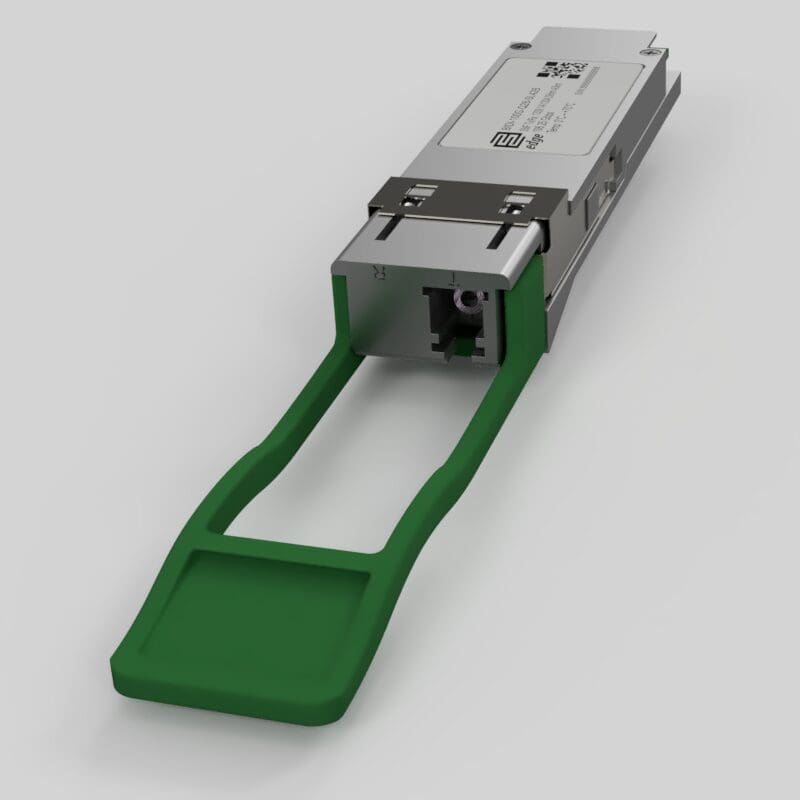

100G BiDi QSFP28 ER1 40km Transceiver (Side B) Overview
The BIDI-100G-Q28-SL42B is a 100G single-lambda BiDi QSFP28 transceiver for 40 km links over a single strand of G.652 single-mode fiber. It transmits at 1309.14 nm and receives at 1304.58 nm, the Side B direction of the matched pair, and connects through a single LC/UPC simplex connector. Side B operates only against Side A (BIDI-100G-Q28-SL42A), which uses the complementary wavelengths. Order one of each to build a complete 40 km BiDi link.
- Media Type: Single-Mode Fiber (SMF)
- Connector: Single LC/UPC
- Fiber Count: BiDi
- Maximum Distance: 40 km
- Average Link Budget: 17.7 dB
- Tx Wavelength: 1309.14 nm
- Supported Data Rate: 106.25 Gbps
- DDM/DOM: Supported
- Forward Error Correction (FEC): Integrated in DSP
- Temperature Range: Standard 0°-70°C
100G BiDi QSFP28 ER1 40km Pricing
SKU:BIDI-100G-Q28-SL42B-MSBIDI-100G-Q28-SL42B-MS
In Stock - Ships Next Business DayIn Stock - Ships Next Business Day100G BiDi QSFP28 ER1 40km Transceiver (Side B) Specification
Form Factor | QSFP28 |
Modulation | PAM4 (Pulse Amplitude Modulation 4-level) |
Media Type | Single-Mode Fiber (SMF) |
Connector | Single LC/UPC |
Fiber Count | BiDi |
Maximum Distance | 40 km |
Average Link Budget | 17.7 dB |
TX Wavelength | 1309.14 nm |
RX Wavelength | 1304.58 nm |
Supported Data Rate | 106.25 Gbps |
Supported Ethernet Applications | 100G Ethernet PAM4 (106.25 Gbps) |
DDM/DOM | Supported |
Forward Error Correction (FEC) | Integrated in DSP |
Transmitter Type | EML Laser |
Tx Wave Bandwidth | 1.04 nm |
Average Launch Power (Min) Each Lane | 0 dBm |
Average Launch Power (Max) Each Lane | 5.6 dBm |
Extinction Ratio (Min) | 5 dB |
Receiver Type | PIN photodiode |
RX Wave Bandwidth | 1.04 nm |
Average Receiver Sensitivity (Min) Each Lane | -14.7 dBm |
Average Receiver Sensitivity (Max) Each Lane | -3.4 dBm |
Receiver Overload | -2.4 dBm |
Temperature Range | Standard 0°-70°C |
Storage Temperature | -40° to 85°C |
Relative Humidity | 5 to 85% |
Power Consumption (Max) | 4.5 W |
Power | +3.3V single power supply |
Compliance | CE, RoHS, IEEE 802.3cu, 100G Lambda MSA, CAUI-4, SFF-8636 (Management Interface for 4-lane modules), SFF-8679 |
Complete Your Setup
Used With These Products
Commonly paired together
Related Products
Different approach, same goal
100G BiDi QSFP28 ER1 40km Transceiver (Side B) Datasheet
v2Complete technical specifications and product details
100G BiDi QSFP28 ER1 40km Transceiver (Side B) Description
The BIDI-100G-Q28-SL42B is EdgeOptic's 100G single-lambda BiDi QSFP28 transceiver for 40 km links over one strand of G.652 single-mode fiber. It is the Side B end of a matched pair, transmitting at 1309.14 nm and receiving at 1304.58 nm. A single LC/UPC simplex connector carries both directions on the one fiber, so the link plant uses a single strand instead of the two-fiber duplex pair a conventional LR4 module needs.
The module runs 100G Ethernet at 106.25 Gbps using PAM4 on a single optical lane per direction. The 40 km reach is 100G-ER1-40 per the 100G Lambda MSA, which extends the single-lambda 100G specification beyond the 2 km FR1 and 10 km LR1 reaches that IEEE 802.3cu defines. Host-side electrical signaling is single-lambda PAM4 per IEEE 802.3cu (CAUI-4). It carries 100G Ethernet only, with no Fibre Channel or OTN mapping.
Side B transmits on 1309.14 nm and Side A (BIDI-100G-Q28-SL42A) transmits on 1304.58 nm. Each end receives on the wavelength the other transmits, so the two close O-band lanes pass each other on the single fiber without colliding. You must deploy Side B against Side A. Two Side B modules on opposite ends both transmit at 1309.14 nm with neither receiver tuned to listen for it, and the link stays dark. Order one BIDI-100G-Q28-SL42B and one BIDI-100G-Q28-SL42A per link.
The EML transmitter runs at 0 to +5.6 dBm launch power, paired with a PIN photodiode receiver rated to −14.7 dBm sensitivity (min) and a −2.4 dBm overload. The 17.7 dB average link budget supports the full 40 km over G.652 fiber. FEC is integrated in the module DSP. Whether host-side FEC should be enabled or disabled is platform-dependent, so verify the host FEC mode against your switch platform's transceiver table before commissioning. The module reports DOM telemetry and runs at 4.5 W from a 3.3 V supply over a 0 to 70 degrees C range.
EdgeOptic codes the module for multiple vendor platforms configured for the 100GBASE-BX40 / 100G-ER1-40 single-lambda BiDi class. Verify the part against your chassis transceiver compatibility table before deployment.
Backed by 15+ years of EdgeOptic compatibility engineering across vendor optical platforms. Ships next business day from EU stock with a lifetime warranty. For coding requests or compatibility questions, contact our sales team.
Frequently Asked Questions
Does the 100G BiDi QSFP28 ER1 40km link need RS-FEC enabled on both switches?
FEC is integrated in the module DSP. Whether the host should also run RS-FEC, and which mode, depends on the switch platform, and a FEC-mode mismatch between the two ends is a common cause of a link that will not come up. Confirm both ends use the same host-side FEC setting and verify the required mode against each platform's transceiver notes before commissioning.
Can the Side B module link to a 100G BiDi module from a different vendor on the far end?
Interoperability is wavelength-based. The far-end module has to follow the same 100G-ER1-40 BiDi wavelength convention, which means the Side B module (TX 1309.14 nm / RX 1304.58 nm) must face a far-end Side A direction (TX 1304.58 nm / RX 1309.14 nm). When the wavelength pairing and the 40 km reach class match, the link works across brands. Verify the far-end wavelength pair and reach class before mixing vendors.
