AGM722F

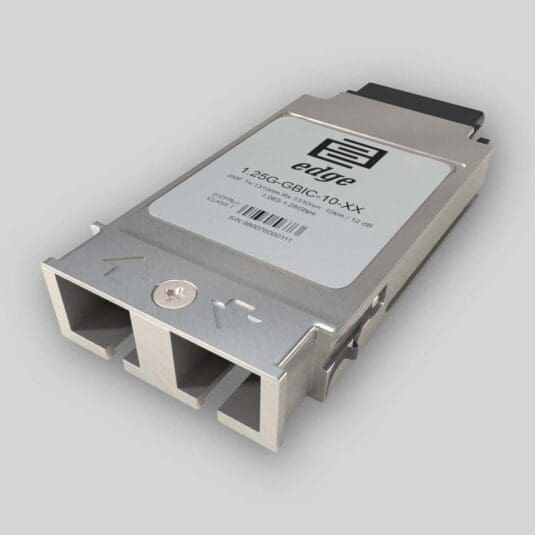

Netgear compatible AGM722F GBIC Module

# Key Highlights
  • Type: GBIC
  • Compatibility: Netgear compatible
  • Tx/Rx Wavelength: 1310 nm. / 1310 nm.
  • Media Type: Single-Mode Fiber (SMF)
  • Optical Budget: 12 dB
  • Max. Distance: 10 km
  • Data Rate: 1.063-1.25Gbps
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 1.25G-GBIC-10-NG

19.28

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1310 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

12 dB

Maximum Distance:

10km

Supported Data Rate:

1.063-1.25Gbps

Supported Applications:

Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)

DDM/DOM:

Not Available

Temperature Range:

Standard 0°-70°C

Connectors:

Double SC

Tx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Rx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Minimum Transmitting Power:

-9 dB

Maximum Transmitting Power:

-3 dB

Receiver Sensitivity:

-21 dBm

Receiver Overload:

-3 dBm

Dispersion:

70-100 ps/nm

Transmitter Type:

FP Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

SEMTECH, UX

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, RoHS, SFF-8053 GBIC Multi-Source Agreement (MSA)

Transceiver Type:

GBIC

# Product Documentation
Multi-Vendor MSA Compatible 1.25G-GBIC-10 GBIC Datasheet

Netgear Compatible AGM722F GBIC Module is based on our product 1.25G-GBIC-10. When You will order it will be encoded to be compatible with Netgear equipment and it will be labeled with part number: 1.25G-GBIC-10-NG, where NG means Netgear Compatible. Above You can download datasheet of our 1.25G-GBIC-10 product.

# Product Description

   Netgear compatible AGM722F is GBIC (Gigabit Interface Converter) Transceiver, operating over Double Fiber Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 12 dB, with in most cases is enough to reach about 10 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality FP Laser transmitter with operating at nominal wavelength 1310 nm. and 1310 nm. PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Netgear compatible AGM722F operates in Standard 0°-70°C temperature range and has Double SC interface. GBIC support 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps)|1G Fiber Channel (1.0625 Gbps). GBIC Double Fiber optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Fiber To The Home aggregation and backbone, Various Data Communication Gigabit Ethernet Links, Data Center SAN networking and other optical links.

    Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Netgear compatible AGM722F GBIC Transceiver with latest platforms of Netgear networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Netgear platforms. However, our optical transceivers are compliant to SFF-8053 Specification for GBIC (Gigabit Interface Converter) industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and GBIC transceiver EEPROM memory data validation tests.
