20 Channels Single Fiber DWDM Mux/Demux B-Side: SDMD-20B
20-Channel Single Fiber DWDM Mux/Demux B-Side Overview

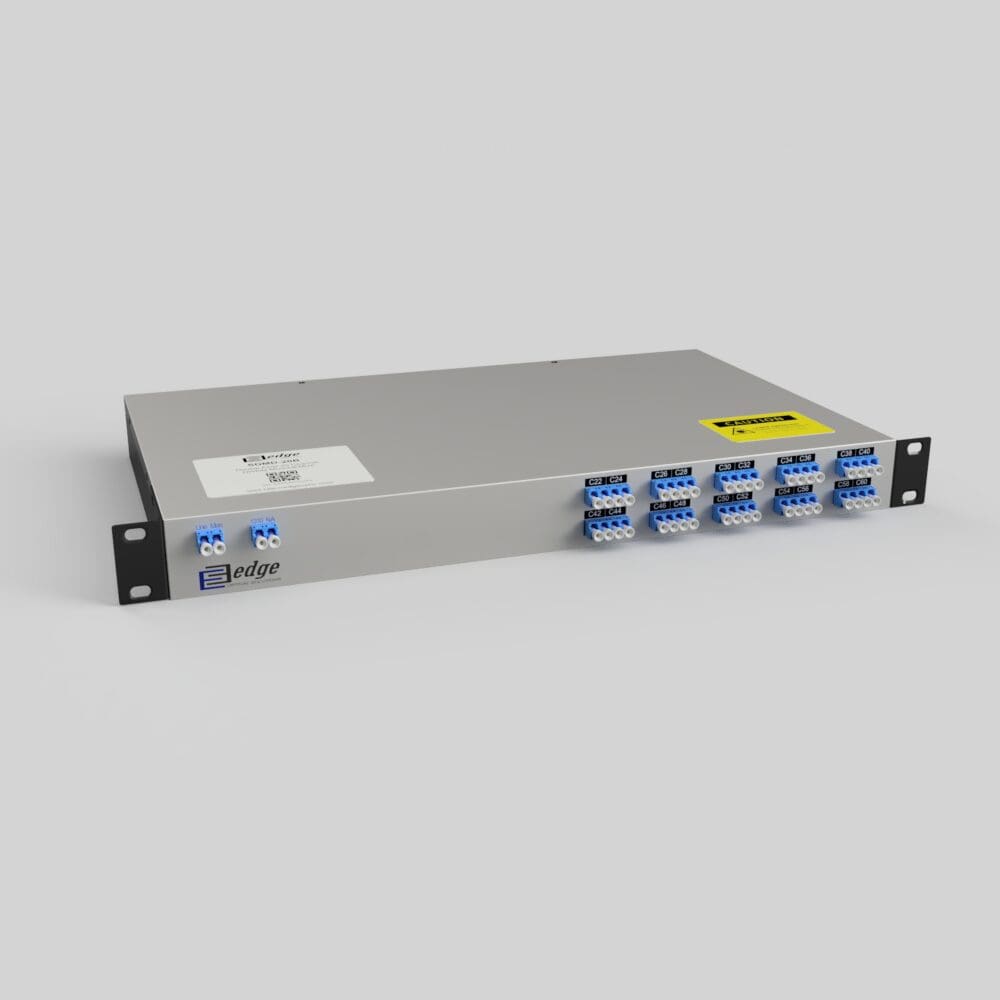

Our 20-channel single fiber DWDM Mux/Demux Side B delivers high-capacity dense wavelength multiplexing over single fiber. Supporting 40 wavelengths across ITU-T C-band 100 GHz channels 21-60 (1560.61-1529.55nm), this AWG-based passive unit provides below 3.7 dB insertion loss with monitor port. LC/UPC connectors, 19" 1U. Pair with SDMD-20A.
- xWDM Technology: BiDi DWDM
- Package Type: 1U Rack Mount
- Number of Data Streams: 20
- Number of Optical Channels: 40
- Connector: LC/UPC
- Filter Technology: DWDM AAWG (Gaussian)
- Insertation Loss (Passband): 3.7 dB
- Operating Temperature: 0 °C - 70 °C
- MTBF: 1000000 hours
SDMD-20B DWDM Mux/Demux Pricing
SKU:SDMD-20B
Special Order - Up to 4 Weeks20 Channels Single Fiber DWDM Mux/Demux B-Side Specification
Product Type | BiDi DWDM MUX/DEMUX Unit |
Package Type | 1U Rack Mount |
Number of Data Streams | 20 |
Number of Optical Channels | 40 |
Connector | LC/UPC |
Operating Wavelengths | 20 DWDM Channel pairs Ch 21-60 (1560.61-1529.55nm) |
Channel Spacing | 100 GHz (0.8 nm) |
Passband | >0.22 nm |
Filter Technology | DWDM AAWG (Gaussian) |
Insertation Loss (Passband) | 3.7 dB |
Isolation Adjacent Channels | 27 dB |
Isolation Non-Adjacent Channels | 35 dB |
Channel Pass-band Ripple | 1.2 dB |
Polarization Dependent Loss (PDL) | 0.5 dB |
Polarization Mode Dispersion (PMD) | 0.5 ps |
Return Loss | 45 dB |
Maximum Power Handling | 500 mW |
Operating Temperature | 0 °C - 70 °C |
Operating Humidity | 5 % - 95 % |
Storage Temperature | -40 °C - 85 °C |
MTBF | 1000000 hours |
Compliance | CE, ISO, ITU-T G.694.2, RoHS |
20 Channels Single Fiber DWDM Mux/Demux B-Side Datasheet
v1Complete technical specifications and product details
20 Channels Single Fiber DWDM Mux/Demux B-Side Description
20 Channels Single Fiber DWDM mux/demux B-Side – SDMD-8A is a member of the EDGE Optics xWDM Series product line. We designed EDGE Optics xWDM Series products to allow easy, gradual, logical, and cost-efficient expansion of network bandwidth using industry-leading passive WDM technology. The main advantage of xWDM is its passive nature – no power supply or cooling necessary, robustness with no special micro-climate requirements, and as a passive element, it has an MTBF of 100+ years. xWDM is fully data rate and line protocol neutral – it is possible to use with colored transceivers supporting applications such as 1G/10G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel. It is simple to install and requires no configuration or maintenance. SDMD-20B is a Single Fiber DWDM multiplexer, based on TFF (Thin-Film Filter) technology, designed to organize 20 protocol-independent parallel ITU-T G.694.2 compatible Dense Wavelength Division Multiplex (DWDM) Data Streams over Single SMF. With a focus on minimal insertion loss, SDMD-20B is equipped with band-pass or skip filters extending the maximum distance of DWDM connections. The unit features LC/UPC connectors. SDMD-20A supports 20 channels ( 40 x 100GHz wavelengths). SDMD-20B is manufactured as an 1U-type package fitting any standard equipment rack.
