SDMD-8B-E

8 Channels Single Fiber Expandable DWDM Mux/Demux B-Side

8 Channels Single Fiber Expandable DWDM Mux/Demux B-Side
# Key Highlights
  • 8 DWDM Data Streams over Single SMF
  • Fully Passive: No Power Supply or Cooling
  • MTBF: 100+ Years
  • Protocol & Data Rate neutral
  • Monitoring Port for easy troubleshooting
  • Upgrade Port Supporting Expansion
  • Band-Pass / Skip filters Installed
  • Low Insertation Loss – 3.2 dB
  • Compact: LGX Type B package
  • Easy Installation & Expansion
  • 5 Year Warranty
# Pricing & Ordering
SKU: SDMD-8B-E

€452.18

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Front Panel

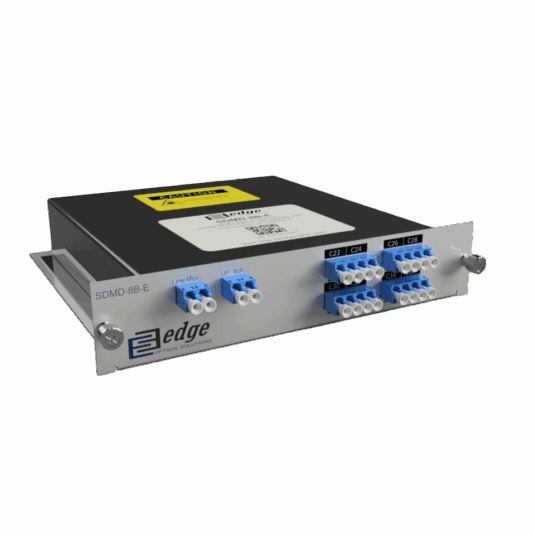

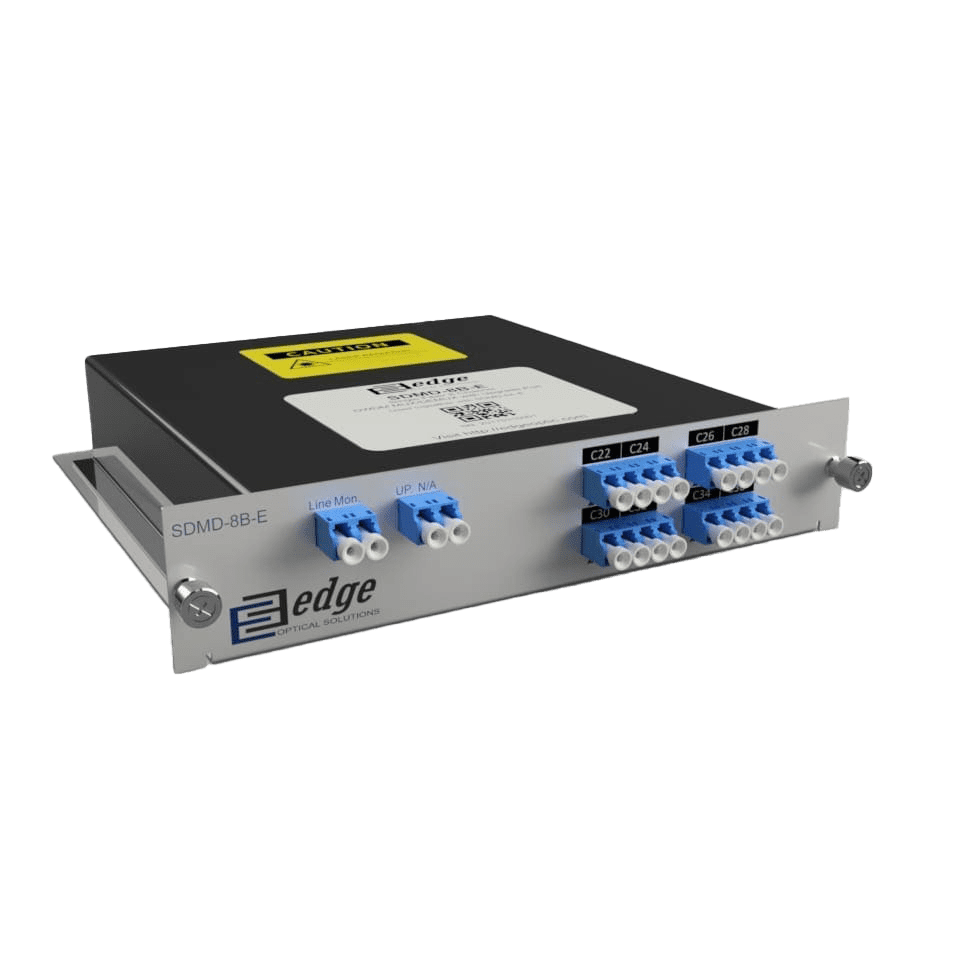

SDMD-8B-E Front Panel

# Key Technical Data
Product Type:

DWDM MUX/DEMUX Unit
Number of Data Streams:

8
Number of Optical Channels:

16 DWDM Channels According ITU-T ITU G.694.1
Operating Wavelengths:

ITU-T C-band 100 GHz Channels 21 (1560.61nm) – 36 (1548.52 nm)
Filter Technology:

TFF (Thin Film Filter)
Passband:

± 0.1 nm (λ center)
Channel Spacing:

0.8 nm
Band-Pass (“Skip”) Filters:

Yes
Insertation Loss (Passband):

3.2 dB
Insertation Loss (Upgrade/Expansion):

1.0 dB
Insertion Loss (1% Monitor Port):

23.8 dB
Monitoring Port Type:

1% Monitoring (tap) Port
Isolation Adjacent Channels:

25 dB
Isolation Non-Adjacent Channels:

30 dB
Channel Pass-band Ripple:

0.75 dB
Polarization Dependent Loss (PDL):

Max: 0.5 dB
Polarization Mode Dispersion (PMD):

Max: 0.5 ps/nm
Directivity:

Min: 21 dB
Return Loss:

Min: 40 dB
Maximum Power Handling:

23 dBm on common port
Connectors:

LC Adapters for use with TIA/EIA 604-10 compliant LC UPC Connectors
Operating Temperature:

-5~+70 (°C)
Storage Temperature:

-40~+85 (°C)
Relative Humidity:

0 – 90%
Compliance:

CE, ISO, ITU-T G.694.1, RoHS, Telecordia GR-20
# Product Documentation
8 Channels Single Fiber Expandable DWDM Mux/Demux B-Side SDMD-8B-E
# Product Description

8 Channels Single Fiber Expandable DWDM Mux/Demux B-Side – SDMD-8B-E is member of EDGE Optics xWDM Series product line. We designed EDGE Optics xWDM Series products to allow easy, gradual, logical and cost efficient expansion of network bandwidth using industry leading passive WDM technology. Main advantage of xWDM is its passive nature – no power supply or cooling necessary, robustness – no special micro-climate requirements and as passive element, it has MTBF 100+ Years. xWDM is – it is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. It’s simple to install, requires no configuration or maintenance.
SDMD-8B-E is Single Fiber DWDM multiplexer, based on TFF (Thin-Film Filter) technology,  allowing to organize 8 protocol independent parallel ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) Data Streams over Single SMF. With our focus to provide maximally low insertion loss, SDMD-8B-E is equipped with band-pass or skip filters extending maximum distance of DWDM connections. SDMD-8B-E is equipped with 1% Monitoring (tap) port, with allows easy in-service analytics and troubleshooting. SDMD-8B-E supports 8 channels ( 16 x 100GHz wavelengths)  and it can be used as standalone, or together with SDMD-8B by plugging it to Upgrade port and expanding link capacity up to 16 channels. SDMD-8B-E is manufactured as LGX TypeB module fitting any standard equipment rack.
