1 Channel Double Fiber Passive DWDM Two side OADM Unit

1 Channel Double Fiber Passive DWDM Two side OADM Unit
# Key Highlights
  • Add/Drop of 1 Link to East and West
  • Fully Passive: No Power Supply or Cooling
  • MTBF: 100+ Years
  • Protocol & Data Rate neutral
  • Low Insertion Loss – 1.0 dB
  • Compact: LGX Type package
  • 5 Year Warranty
# Pricing & Ordering
SKU: DDLT-1

€147.26

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
Clear
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

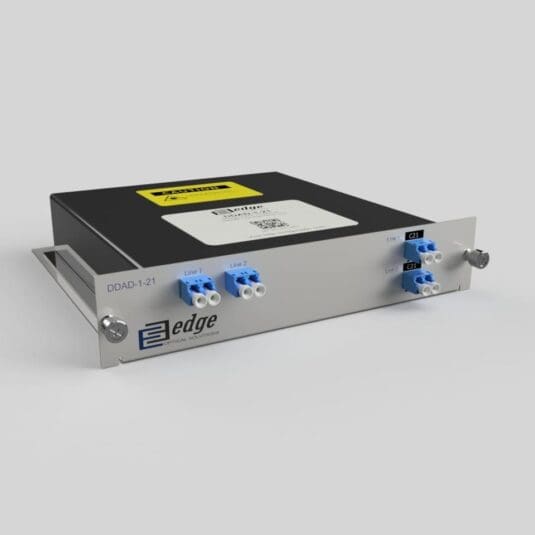

DDAD-1 Front Panel

# Key Technical Data
Product Type:

DWDM Two Side OADM
Number of Data Streams:

1
Number of Optical Channels:

1 DWDM Channels According ITU-T ITU G.694.1
DWDM Add/Drop Channels:

Ch 21, Ch 22, Ch 23, Ch 24, Ch 25, Ch 26, Ch 27, Ch 28, Ch 29, Ch 30, Ch 31, Ch 32, Ch 33, Ch 34, Ch 35, Ch 37, Ch 38, Ch 39, Ch 40, Ch 41, Ch 42, Ch 43, Ch 44, Ch 45, Ch 46, Ch 47, Ch 48, Ch 49, Ch 50, Ch 51, Ch 52, Ch 53, Ch 54, Ch 55, Ch 56, Ch 57, Ch 58, Ch 59, Ch 60, Ch 61
Filter Technology:

TFF (Thin Film Filter)
Passband:

>0.22 nm
Channel Spacing:

100GHz (0.8 nm)
Insertation Loss (Add/Drop Channels):

1.0 dB
Insertation Loss (Express):

0.8 dB
Isolation Adjacent Channels:

>25 dB
Isolation Non-Adjacent Channels:

>35 dB
Channel Pass-band Ripple:

≤0.5 dB
Polarization Dependent Loss (PDL):

<0.1 dB
Polarization Mode Dispersion (PMD):

<0.1 PS
Directivity:

>50 dB
Return Loss:

>45 dB
Maximum Power Handling:

500 mW
Operating Temperature:

0~+70 (°C)
Storage Temperature:

-40~+85 (°C)
Compliance:

CE, ISO, ITU-T G.694.1, RoHS
# Product Documentation
1 Channel Double Fiber Passive DWDM Two side OADM Unit DDAD-1
# Product Description

1 Channel Double Fiber Passive DWDM Two side OADM Unit – DDAD-1 is a member of EDGE Optics xWDM Series product line. We designed EDGE Optics xWDM Series products to allow easy, gradual, logical, and cost-efficient expansion of network bandwidth using industry-leading passive WDM technology. The main advantage of xWDM is its passive nature – no power supply or cooling necessary, robustness – no special micro-climate requirements, and as a passive element, it has MTBF 100+ Years. xWDM is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET, and 8/4/2/1G Fiber Channel. It’s simple to install and requires no configuration or maintenance.
DDAD-1 is a passive double fiber 2-side (East and West) Optical Add-Drop Multiplexer (OADM) package based on Thin-Film Filter (TFF) technology, designed to extract and add 1 data stream from ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) link. DDAD-2 is manufactured as an LGX-type package, installed in a 19” 1U sub-rack fitting any standard equipment rack.
