DDMD-16

16 Channels Double Fiber Passive 100 GHz DWDM Mux/Demux

16 Channels Double Fiber Passive 100 GHz DWDM Mux/Demux
# Key Highlights
  • 16 100 GHz DWDM Ch. Over double SMF
  • Fully Passive: No Power Supply or Cooling
  • Protocol & Data Rate neutral
  • MTBF: 100+ Years
  • Low Insertion Loss – 3.2 dB
  • Compact: 1U Standard 19” Rack
  • Easy Installation
  • 5 Year Warranty
# Pricing & Ordering
SKU: DDMD-16

€793.49

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Front Panel

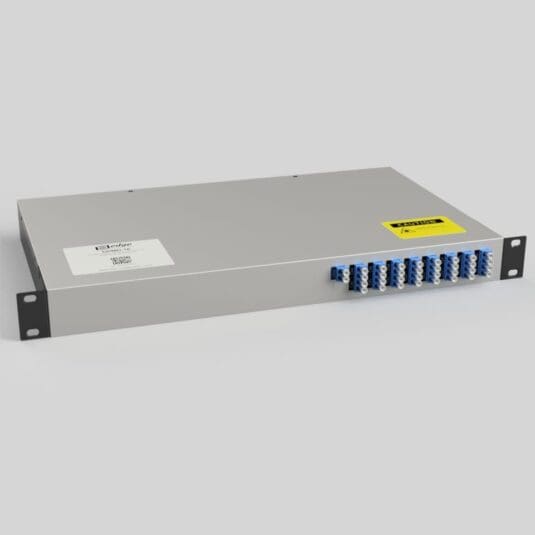

DDMD-16 Front Panel

# Key Technical Data
Product Type:

DWDM MUX/DEMUX Unit
Number of Data Streams:

16
Number of Optical Channels:

16 DWDM Channels According ITU-T ITU G.694.1
Operating Wavelengths:

ITU-T C-band 100 GHz Channels 43 (1542.94nm) – 58 (1531.12 nm)
Filter Technology:

TFF (Thin Film Filter)
Passband:

± 0.1 nm (λ center)
Channel Spacing:

0.8 nm
Insertation Loss (Passband):

3.2 dB
Isolation Adjacent Channels:

25 dB
Isolation Non-Adjacent Channels:

30 dB
Channel Pass-band Ripple:

0.75 dB
Polarization Dependent Loss (PDL):

Max: 0.5 dB
Polarization Mode Dispersion (PMD):

Max: 0.5 ps/nm
Directivity:

Min: 21 dB
Return Loss:

Min: 40 dB
Maximum Power Handling:

23 dBm on common port
Connectors:

LC Adapters for use with TIA/EIA 604-10 compliant LC UPC Connectors
Operating Temperature:

-5~+70 (°C)
Storage Temperature:

-40~+85 (°C)
Relative Humidity:

0 – 90%
Compliance:

CE, ISO, ITU-T G.694.1, RoHS, Telecordia GR-20
# Product Documentation
16 Channels Double Fiber Passive 100 GHz DWDM Mux/Demux DDMD-16
# Product Description

16 Channels Double Fiber Passive 100 GHz DWDM Mux/Demux – DDMD-16 is member of EDGE Optics xWDM Series product line. We designed EDGE Optics xWDM Series products to allow easy, gradual, logical and cost efficient expansion of network bandwidth using industry leading passive WDM technology. Main advantage of xWDM is its passive nature – no power supply or cooling necessary, robustness – no special micro-climate requirements and as passive element, it has MTBF 100+ Years. xWDM is – it is fully data rate or line protocol neutral – it is possible to use with colored transceivers supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel. It’s simple to install, requires no configuration or maintenance.
DDMD-16 is passive multiplexer/demultiplexer package based on TFF (Thin-Film Filter) technology, allowing to organize 16 duplex, protocol independent parallel ITU-T G.694.1 compatible Dense Wavelength Division Multiplex (DWDM) data streams over pair of single mode optical fiber. DDMD-16 supports 16 100GHz channels and it can be used as standalone, or together with DDMD-16E by plugging it to Upgrade port and expanding link capacity up to 32 channels. DDMD-16 is manufactured as standard 1U high 19” sub rack fitting any standard equipment rack.
