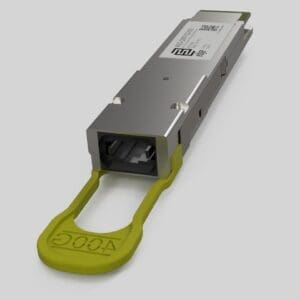

400G QSFP-DD Optical Transceivers

The 400G QSFP-DD (Quad Small Form Factor Pluggable Double Density) module is a hot-pluggable form factor designed for high-speed optical networking applications. QSFP-DD outlook and connector is like the current QSFP form factor, but it has an additional row of contacts provided for an eight-lane electrical interface that operates at 50 Gbps using PAM4 modulation supporting speeds up to 400G. Nowadays 400G is one of the highest data rates in the Ethernet world, offering improved capabilities for key aggregation and high‑bandwidth interconnection applications. These modules are commonly used in data centers, enterprise networks, and telecommunications infrastructure to support high-speed data transmission and meet the demands of emerging technologies like 5G. To ensure reliable data transmission, 400G QSFP-DD modules often incorporate Forward Error Correction. FEC helps detect and correct errors in transmitted data, improving the overall reliability of the communication link. 400G QSFP-DD has been defined by the QSFP-DD MSA Group as high-density, high-speed pluggable modules that are backward compatible with 200G QSFP-DD,100G QSFP28, and even 40G QSFP+. Our compatible QSFP-DD portfolio consists of transceivers that can operate over Single-Mode or Multi-Mode optical Fiber, can be used for connection distances from a couple of meters up to 40 kilometers, and can support up to 425 Gbps data rate and 400G Ethernet application. As well as 400G QSFP-DD AOC and 400G QSFP-DD DAC Cable, where they can be used. Our QSFP-DD portfolio consists of 400GBASE-SR8, 400GBASE-DR4/ DR4+, 400GBASE-FR4, 400GBASE-LR8, 400GBASE-LR4, 400GBASE-ER8, 400GBASE-ER4 Lite and 400G BIDI QSFP-DD which are defined by QSFP-DD MSA, 100G Lambda MSA, CMIS 4.0 and IEEE 802.3bs 400 Gbps specification. 400G-QSFP-DD transceivers can work on almost all networking equipment, where there is no special algorithm for protection against third-party modules. However – we have accumulated deep expertise in custom-encoded firmware for our 400G QSFP-DD portfolio to make these modules work in almost any brand of equipment. We will be glad to know your requirements – Contact Us.

Generic filters
Exact matches only
Search in title
Search in content
Filter by Product categories
SFP+
SFP
cSFP
DAC
QSFP
CFP2
CFP4
XFP
Adapters
Passive DWDM
BiDi DWDM
Passive CWDM
BiDi CWDM
xWDM Accesories
Network Interface Cards
Compatible NIC
NOKIA (Alcatel)
Allied Telesis
Arista
Avago
Avaya
Aruba
Brocade
Ciena
Chelsio
Cisco
Cisco (Linksys)
Coriant
CSPI
D-link
Dell (Force10)
ECI
Emulex
Enterasys
Extreme
Ericsson
Finisar
Fortinet
F5 Networks
HP
Fujitsu
Huawei
IBM
Infinera
Intel
Juniper
Lenovo
Mellanox
MikroTik
Moxa
Netgear
Nortel
Oclaro
Palo Alto Networks
PLANET
Qlogic
SonicWall
Supermicro
TP-LINK
TRENDnet
Ubiquiti Networks
Westermo

400G QSFP-DD SR8 Optical Transceiver

In this MSA-compatible 400G QSFP-DD SR8 Optical Transceiver selection You will find an SR (Short Range) Multi-Mode Fiber 850nm Optical Transceiver for distances up to 100m (over OM5) equipped MTP/MPO-16 connector. Modules are available for 400G Ethernet (412.5Gbps) applications. On the transmission side module converts 8x 50G PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into 8x independent PAM4 optical signal with the baud rate of 53.125 Gbps.

400G QSFP-DD DR4 / DR4+ Optical Transceivers

The compatible 400G QSFP-DD DR4 / DR4+ Optical Transceiver modules are specifically engineered for 400-gigabit Ethernet applications, supporting data throughput up to 500 meters and 2 kilometers over single-mode fiber (SMF). Those modules utilize PSM4 (Parallel Single Mode 4-lane) technology over a wavelength of 1310nm and are equipped with an MTP/MPO-12 connector, facilitating efficient and high-density optical connections.

400G QSFP-DD FR4 Optical Transceiver

The 400G QSFP-DD FR4 Optical Transceiver selection consists of 400 Gigabit Optical Single Mode Fiber Double LC connector Transceiver, supporting data throughput up to 2 kilometers over single-mode fiber (SMF). On the transmission side module converts 8x 50G 400GAUI-8 PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into four 1270 nm, 1290 nm, 1310 nm, 1330 nm Single Lambda 100G PAM4 CWDM optical signals.

400G QSFP-DD LR4 Optical Transceiver

The 400G QSFP-DD LR4 Optical Transceiver selection consists of 400 Gigabit Optical Single Mode Fiber Double LC connector Transceiver, supporting data throughput up to 10 kilometers over single-mode fiber (SMF). As same as for FR4, 400G QSFP-DD LR4 Optical Transceiver on the transmission side converts 8x 50G 400GAUI-8 PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into four 1270 nm, 1290 nm, 1310 nm, 1330 nm Single Lambda 100G PAM4 CWDM optical signals.

400G QSFP-DD LR8 Optical Transceiver

MSA-compatible 400G QSFP-DD LR8 Optical Transceiver selection consists of Single Mode Fiber Double LC connector Transceiver, supporting data throughput up to 10 kilometers over single-mode fiber (SMF). On the transmission side, QSFP-DD LR8 converts 8x 50G 400GAUI-8 PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into eight (1273 nm, 1277 nm, 1282 nm, 1286 nm, 1295 nm, 1300 nm, 1304 nm, 1309 nm) Single Lambda 50G PAM4 LAN-WDM optical signals which are multiplexed for transmission over SMF.

400G QSFP-DD ER4 Optical Transceiver

The 400G QSFP-DD ER4 Optical Transceiver selection consists of 400 Gigabit Optical Single Mode Fiber Double LC connector Transceiver, supporting data throughput up to 40 kilometers over single-mode fiber (SMF). As same as for LR4, 400G QSFP-DD LR4 Optical Transceiver on the transmission side converts 8x 50G 400GAUI-8 PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into four 1270 nm, 1290 nm, 1310 nm, 1330 nm Single Lambda 100G PAM4 CWDM optical signals.

400G QSFP-DD ER8 Optical Transceiver

MSA-compatible 400G QSFP-DD ER8 Optical Transceiver selection consists of Single Mode Fiber Double LC connector Transceiver, supporting data throughput up to 40 kilometers over single-mode fiber (SMF). On the transmission side, QSFP-DD ER8 converts 8x 50G 400GAUI-8 PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into eight (1273 nm, 1277 nm, 1282 nm, 1286 nm, 1295 nm, 1300 nm, 1304 nm, 1309 nm) Single Lambda 50G PAM4 LAN-WDM optical signals which are multiplexed for transmission over SMF.

400G BIDI QSFP-DD Optical Transceiver

In this MSA-compatible 400G BIDI QSFP-DD Optical Transceiver selection You will find 400G BIDI Multi-Mode Fiber Optical Transceivers in distances up to 150m over OM5 with MTP/MPO-12 connector. This signal is carried over Tx/Rx Ch1: 850nm, Ch2: 908nm and the module accepts 8x 50G (400GAUI-8) host electrical data and transmits them in two groups of optical Bi-Directional lanes (each group contains 4 pairs of optical lane) to allow optical communication over optical multi-Mode fibers. Reversely, on the receiver side, the module accepts 8 sets of optical input signals and converts them to 8 channels of electrical data.

Frequently Asked Questions about 400G QSFP-DD

What is the difference between OSFP vs QSFP-DD?

The OSFP and QSFP-DD form factors are alike, but differ in power capacity, with OSFP supporting more power (up to 15W*) compared to QSFP-DD (up to 12W*). OSFP facilitates early adoption due to its higher power allowance. However, the QSFP-DD port offers backward compatibility with QSFP+ (40G), QSFP28 (100G), and QSFP56 (200G).

What is the difference between QSFP-DD vs QSFP28?

The QSFP-DD shares the same physical dimensions (width, length, and thickness) as QSFP+, QSFP28, and QSFP56. However, it differs in having an 8-lane electrical interface, whereas other QSFP modules use a 4-lane interface.

What is the difference between QSFP vs QSFP-DD?

The QSFP-DD shares the same physical dimensions (width, length, and thickness) as QSFP+, QSFP28, and QSFP56. However, it differs in having an 8-lane electrical interface, whereas other QSFP modules use a 4-lane interface.

What is the difference between QSFP112 vs QSFP-DD?

The QSFP-DD has identical physical dimensions to QSFP112 but stands out with its 8-lane electrical interface, differing from other QSFP112 modules that utilize a 4-lane 4×106.25 interface.

What is the QSFP-DD power consumption?

The average power consumption of QSFP-DD is 7-12W.

Does QSFP-DD have backward compatibility?

Yes, QSFP-DD ports are backwards compatible to support existing QSFP+, QSFP28, and QSFP56 modules. This provides flexibility for network designs and migrations to next-generation platforms.

What are the dimensions/size of QSFP-DD?

QSFP-DD form factor optical transceiver weight is 50 grams and average dimensions are 128x19x13mm.

What is the QSFP-DD?

The 400G QSFP-DD (Quad Small Form Factor Pluggable Double Density) module is a hot-pluggable form factor designed for high-speed optical networking applications. QSFP-DD outlook and connector is like the current QSFP form factor, but it has an additional row of contacts provided for an eight-lane electrical interface that operates at 50 Gbps using PAM4 modulation supporting speeds up to 400G.

What are the QSFP-DD connector type?

The QSFP-DD comes with Double LC and MPO/MTP connector types.

What is the QSFP-DD pinout?

The QSFP-DD usually comes with 12-16 pins.

Where I can find QSFP-DD management interface specifications?

QSFP-DD management interface specifications can be found here http://www.qsfp-dd.com/wp-content/uploads/2019/05/QSFP-DD-CMIS-rev4p0.pdf

What is the difference between QSFP-DD type 1 vs type 2/2A/2B?

documentation or visual reference. http://www.qsfp-dd.com/wp-content/uploads/2022/03/QSFP-DD-Hardware-Rev6.2.pdf
