3HE15641AA

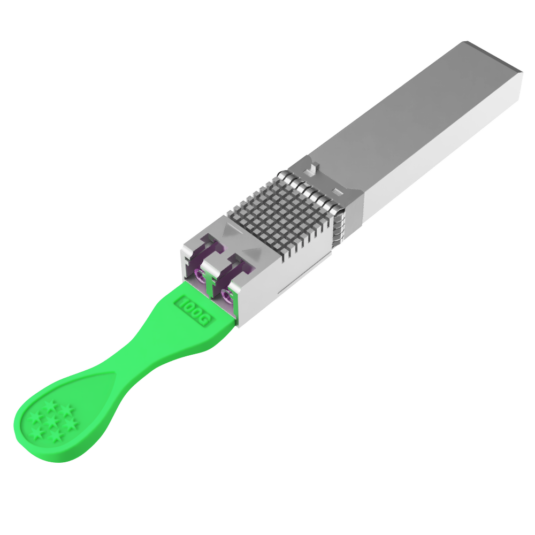

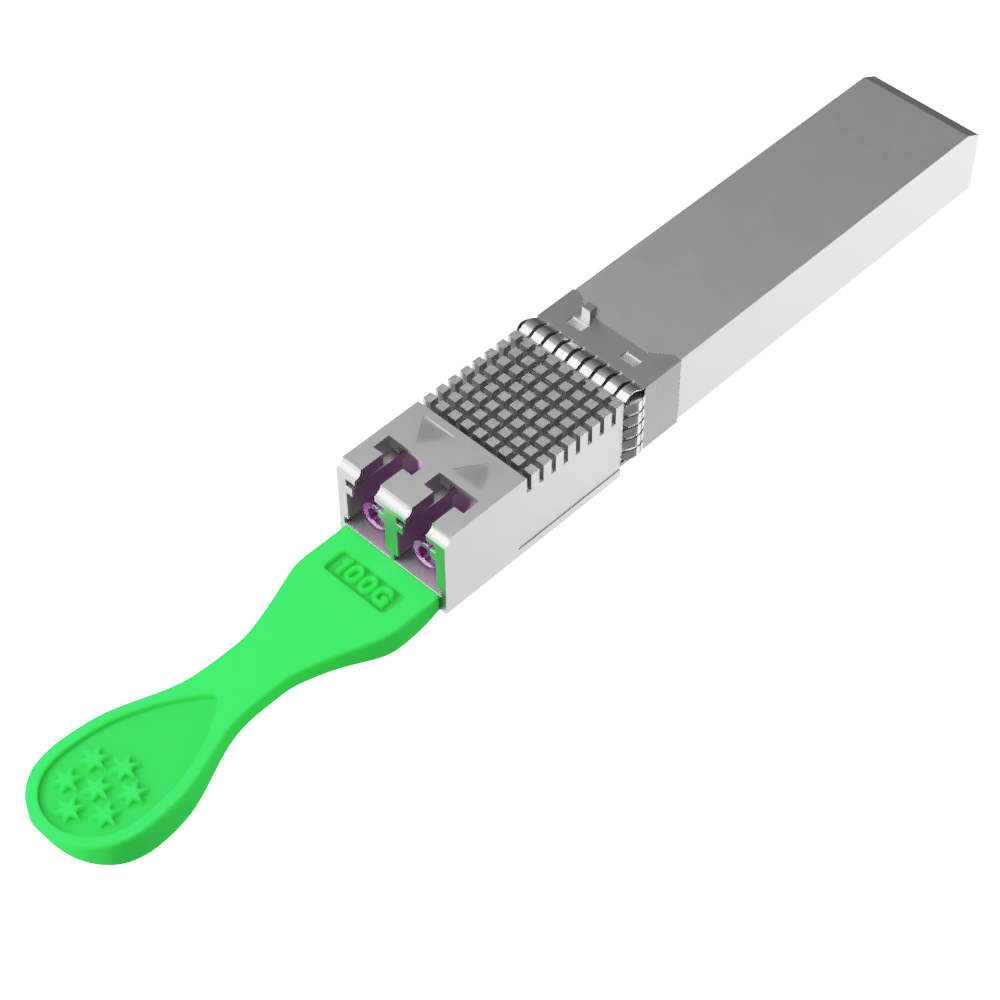

3HE15641AA Nokia Compatible 100G SFP-DD FR1 PAM4 Module
# Key Highlights
- Type:SFP-DD
- Compatibility:Nokia compatible
- Tx/Rx Wavelength:1310 nm. / 1310 nm.
- Fiber Type:Single-Mode Fiber (SMF)
- Connectors:Double LC
- Optical Budget:2.1 dB
- Max. Distance:10km
- Data Rate:106.25 Gbps
- DDM/DOM:Supported
- Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 100G-SFP-DD-2-NK
€450.45
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Single-Mode Fiber (SMF) |
|---|---|
| TX Wavelength: | 1310 nm |
| RX Wavelength: | 1310 nm. |
| Minimum Optical Budget: | 2.1 dB |
| Maximum Distance: | 2km |
| Supported Data Rate: | 106.25 Gbps |
| Supported Applications: | 100G Ethernet (106.25 Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | Double LC |
| Tx Wavelength Bandwidth: | 13 nm |
| Rx Wavelength Bandwidth: | 13 nm |
| Minimum Transmitting Power: | -2.4 dBm |
| Maximum Transmitting Power: | 4 dBm |
| Receiver Sensitivity: | -4.5 dBm |
| Receiver Overload: | 4.5 dBm |
| Transmitter Type: | EML Laser |
| Receiver Type: | PIN photodiode |
| Power: | 3.3V |
| Compliance: | 100G Lambda 100G FR1, SFP56-DD MSA, IEEE802.3CU, 100GAUI-2(no FEC), RoHS |
# Product Documentation
Multi-Vendor MSA Compatible 100G-SFP-DD-2 SFP-DD Datasheet
Nokia Compatible 3HE15641AA SFP-DD Module is based on our product 100G-SFP-DD-2. When You will order it will be encoded with Nokia code and it will be labeled with part number: 100G-SFP-DD-2-NK, where NK means Nokia Compatible. Above You can download datasheet of our 100G-SFP-DD-2 product.
# Product Description
Nokia compatible 3HE15641AA is a 100GBASE FR1 SFP-DD (Small Form-Factor Pluggable – Double Density) Transceiver designed for operation over Single-Mode Fiber (SMF) optical cable. On the transmission side module converts 2x 50G PAM4 (Pulse-Amplitude Modulation) electrical input channels (each 53.125Gbps) into 1x independent 100G PAM4 (106Gbps) optical signal. Module has minimum guaranteed optical budget of 2.1 dB, which in most cases is enough to reach 2 km distance over OS2 single-mode fiber. Our compatible module uses top quality EML (1310 nm) transmitter and 106.25Gb/s PAM4 PIN photodiode receiver. 100G-SFP-DD-2 100GBASE-FR1 supports DDM/DOM optical diagnostics that provide real-time diagnostic information about the present operating conditions. 100G-SFP-DD-2 operates in Standard 0°-70°C temperature range and has Double LC interface. 3HE15641AA 100GBASE-FR1 SFP-DD transceiver is CE/RoHS certified and is compliant to SFP56-DD Multi Source Agreement (MSA), IEEE802.3CU, 100G Lambda 100G FR1 and 100GAUI-2(no FEC). We will be glad to know your requirements!
Nokia is one of the leading OEM manufacturers in our industry and their products are used by many equipment manufacturers. Our Nokia compatible 3HE15641AA product EEPROM memory will be coded with the necessary information to fully meet Nokia compatibility and will work seamlessly with platforms that support Nokia products. If You have any other questions about Nokia-compatible items, please do not hesitate to contact Us, we will be happy to assist!
