AFBR-735SMZ

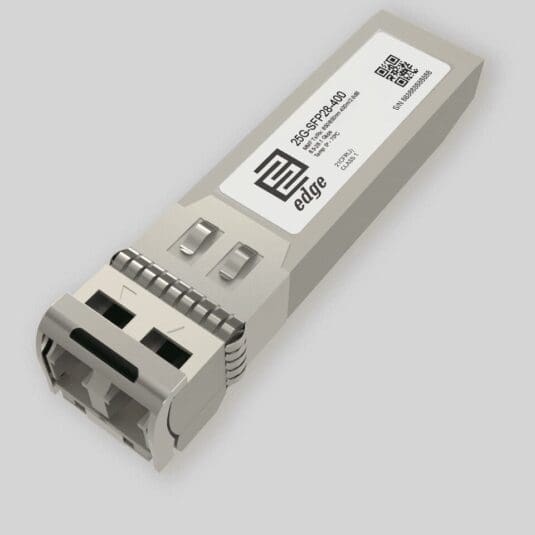

AFBR-735SMZ Broadcom Compatible 25G SFP28 400M Transceiver

# Key Highlights
  • Type:SFP28
  • Compatibility:Broadcom Compatible
  • Tx/Rx Wavelength:850 nm. / 850 nm.
  • Laser:VSCEL Laser
  • Fiber Type:Multi-Mode Fiber (MMF)
  • Connectors:Double LC
  • Optical Budget:2.7 dB
  • Max. Distance:400m (OM4/OM5) / 300m (OM3)
  • Data Rate:8.5-28.1 Gbps
  • DDM/DOM:Supported
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: 25G-SFP28-400-BR

22.52

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Multi-Mode Fiber (MMF)

TX Wavelength:

850 nm.

RX Wavelength:

850 nm.

Minimum Optical Budget:

2.7 dB

Maximum Distance:

400m (OM4/OM5) / 300m (OM3)

Supported Data Rate:

8.5-28.1 Gbps

Supported Applications:

25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps)

DDM/DOM:

Supported

Temperature Range:

Standard 0°-70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

20 nm (840-860 nm)

Rx Wavelength Bandwidth:

20 nm (840-860 nm)

Minimum Transmitting Power:

-6 dBm

Maximum Transmitting Power:

2.4 dBm

Receiver Sensitivity:

-8.7 dBm

Receiver Overload:

2.4 dBm

Transmitter Type:

VSCEL Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo

Compliance:

IEEE 802.3by, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP MSA

# Product Documentation
Multi-Vendor MSA Compatible 25G-SFP28-400 SFP28 Datasheet

Broadcom Compatible AFBR-735SMZ is based on our product 25G-SFP28-400. When You will order it will be encoded to be compatible with Broadcom equipment and it will be labeled with part number: 25G-SFP28-400-BR, where BR means Broadcom Compatible. Above You can download the datasheet of our 25G-SFP28-400.

# Product Description

Our Compatible Broadcom AFBR-735SMZ SFP28 transceiver is based on our 25G-SFP28-400 product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our compatible module version is designed for operation over a Double Fiber Multi-Mode Fiber (MMF) optical cable. It has a minimum guaranteed optical budget of 2.7 dB, which typically is enough to reach about 400 meters over OM4 type fiber or higher MMF category fiber. However, distance is only an indicative parameter calculated for identification comfort. Finally, we calculate distance while keeping in mind the minimum (guaranteed) optical budget and the average attenuation of optical cabling in the industry. Our Broadcom AFBR-735SMZ compatible transceiver uses a high-quality VSCEL Laser transmitter operating at 850 nm nominal wavelength and a 850 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions. This compatible module has a Double LC connector and module is designed for operation in standard temperature networking environments ranging from 0°-70°C. The transceiver chipset supports data rates ranging from 8.5 – 28.1 Gbps and such applications as 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps). It is important to note that the mentioned application support will vary depending on the port where the module will be used, and it supported applications as well as module speed configuration during ordering process, but we can ensure that our module will support at least the same functionality as its OEM counterpart. This is a multi-purpose transceiver that can be used in a variety of different places in today’s networking. As a result, Internet Service Provider (ISP) Fiber to the Home Aggregation and Backbone, Mobile Operator Core Networks and Mobile Backhaul and Data Center networking site interconnections are the most popular applications for this product.

Our compatible Broadcom AFBR-735SMZ module is CE/RoHS certified, it meets product safety standards, and is compliant with SFP28 Multi Source Agreement (MSA) SFF-8402 industry standard. To ensure smooth operation, we have completed compatibility tests for this module with the most recent platforms of Broadcom networking equipment, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly in Broadcom platforms. We are committed to quality, therefore before delivering our products, we conduct stringent quality inspections that include optical parameter measurements, connector cleanliness tests, and EEPROM memory data validation tests. If you have any questions, please Contact us. We will gladly learn about your needs and recommend the best compatible products from our portfolio.
