XCVR-080W46

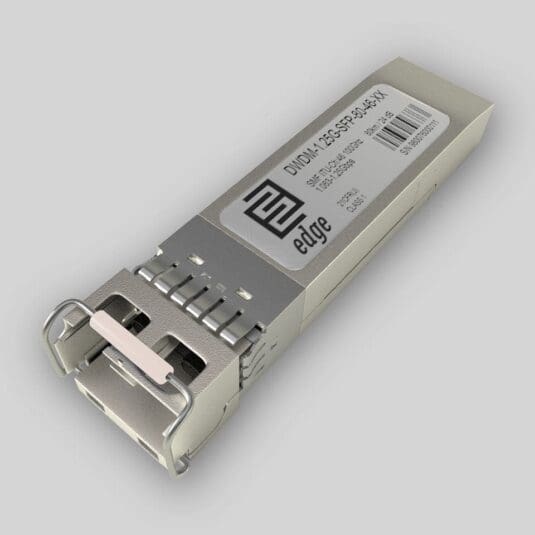

Ciena compatible XCVR-080W46 SFP Module

# Key Highlights
  • Type: SFP
  • Compatibility: Ciena compatible
  • Tx/Rx Wavelength: Ch. 46 (1540.56 nm) / ITU-T DWDM Grid 100 GHz C-Band
  • Media Type: Single-Mode Fiber (SMF)
  • Optical Budget: 24 dB
  • Max. Distance: 80 km
  • Data Rate: 1.063-1.25Gbps
  • Temperature:Standard 0°-70°C
# Pricing & Ordering
SKU: DWDM-1.25G-SFP-80-46-CN

84.89

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

Ch. 46 (1540.56 nm)

RX Wavelength:

ITU-T DWDM Grid 100 GHz C-Band

Minimum Optical Budget:

24 dB

Maximum Distance:

80km

Supported Data Rate:

1.063-1.25Gbps

Supported Applications:

Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)

DDM/DOM:

Support

Temperature Range:

Standard 0°-70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

100GHz (0.8nm)

Rx Wavelength Bandwidth:

1260 – 1620 nm

Minimum Transmitting Power:

0 dB

Maximum Transmitting Power:

2 dB

Receiver Sensitivity:

-24 dBm

Receiver Overload:

-3 dBm

Dispersion:

1600-1700 ps/nm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type:

SFP

# Product Documentation
Multi-Vendor MSA Compatible DWDM-1.25G-SFP-80-46 SFP Datasheet

Ciena Compatible XCVR-080W46 SFP Module is based on our product DWDM-1.25G-SFP-80-46. When You will order it will be encoded to be compatible with Ciena equipment and it will be labeled with part number: DWDM-1.25G-SFP-80-46-CN, where CN means Ciena Compatible. Above You can download datasheet of our DWDM-1.25G-SFP-80-46 product.

# Product Description

   Ciena compatible XCVR-080W46 is SFP (Small Form factor Pluggable) Transceiver, operating over Double Fiber DWDM Single-Mode Fiber (SMF) optical cable. It has minimum guaranteed optical budget of 24 dB, with in most cases is enough to reach about 80 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. This transceiver use top quality DFB Laser transmitter with operating at nominal wavelength Ch. 46 (1540.56 nm) and ITU-T DWDM Grid 100 GHz C-Band PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. Ciena compatible XCVR-080W46 operates in Standard 0°-70°C temperature range and has Double LC interface. SFP support 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps)|1G Fiber Channel (1.0625 Gbps). SFP Double Fiber DWDM optical transceiver is multi-purpose module used in number of different places of today’s networking. Consequently, most popular applications are Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprice LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

    Transceiver is CE/RoHS certified and it is Compliant with product safety standards. We perform compatibility tests for Ciena compatible XCVR-080W46 SFP Transceiver with latest platforms of Ciena networking equipment, which allows us to encode transceiver EEPROM memory to be compatible and work seamlessly with Ciena platforms. However, our optical transceivers are compliant to SFP Multi Source Agreement INF-8074i industry standard as well. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and SFP transceiver EEPROM memory data validation tests.
