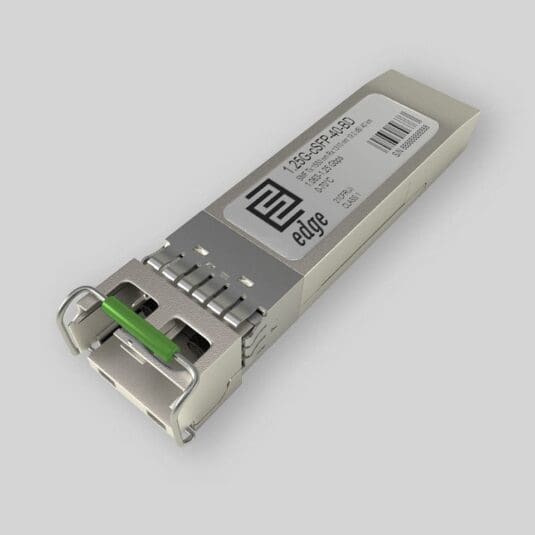

1.25G-cSFP-40-BD

Multi-Vendor MSA Compatible 1.25G-cSFP-40-BD cSFP Module

# Key Highlights
  • Type: cSFP
  • Compatibility: Multi-Vendor MSA Compatible
  • Tx Wavelength: 2 x 1550 nm
  • Rx Wavelength: 2 x 1310 nm
  • Media Type: Single-Mode Fiber (SMF)
  • Optical Budget: 19.0 dB
  • Max. Distance: 40 km
  • Data Rate: 2 x 1.063-1.25 Gbps
  • Temperature: Standard 0-70°C
# Pricing & Ordering
SKU: 1.25G-cSFP-40-BD

38.56

Standard recommended retail price without VAT.

Lead Time: Below 1 Week in EU Countries
# Quality Assurance

Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:

# Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

TX Wavelength:

1550 nm.

RX Wavelength:

1310 nm.

Minimum Optical Budget:

19 dB

Maximum Distance:

40km

Supported Data Rate:

1.063-1.25Gbps

Supported Applications:

Gigabit Ethernet (1.25 Gbps), 1G Fiber Channel (1.0625 Gbps)

DDM/DOM:

Support

Temperature Range:

Standard 0°-70°C

Connectors:

Double LC

Tx Wavelength Bandwidth:

40 nm (1530-1570 nm)

Rx Wavelength Bandwidth:

100 nm (1260-1360 nm)

Minimum Transmitting Power:

-5 dB

Maximum Transmitting Power:

0 dB

Receiver Sensitivity:

-24 dBm

Receiver Overload:

-3 dBm

Dispersion:

800-1000 ps/nm

Transmitter Type:

DFB Laser

Receiver Type:

PIN photodiode

Power:

+3.3V single power supply

Chipset:

MAXIM, MINDSPEED, SEMTECH

Compliance:

1000Base BX20 IEEE802.3ah, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, CSFP MSA option 2,, IEEE 802.3z, RoHS, SFF-8472

# Product Documentation
# Product Description

    1.25G-cSFP-40-BD is Multi-Vendor MSA Compatible cSFP (Compact Size Small Form factor Pluggable) Transceiver, allowing to establish two separate Gigabit Ethernet links, each operating over one fiber of Single-Mode Fiber (SMF) optical cable. It has minimum guar¬anteed optical budget of 19 dB in each of two links, with in most cases is enough to reach about 40 km distance. However, distance is just indicative parameter calculated for comfort of identification. Eventually we calculate distance taking in account minimal optical budget and average attenuation of optical cabling in industry. For each separate data lane this transceiver use top quality DFB Laser transmitter with operating at nominal wavelength 1550 nm and 1310 nm PIN Photodiode receiver. It support DDM/DOM optical diagnostics, with pro¬vide diagnostic information about the present operating conditions. 1.25G-cSFP-40-BD operates in Standard 0°-70°C temperature range and has Double LC interface. cSFP support 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps) and 1G Fiber Channel (1.0625 Gbps). 1.25G-cSFP-40-BD cSFP Single Fiber compact size optical transceiver were designed to save equipment ports and footprint and is capable to establish two separate bidirectional optical links. Most popular application of cSFP modules is FTTH connec¬tions using cSFP in access switch equipment interfacing towards CPE units supporting bidirectional communication or together with other compatible bidirectional transceivers.

    Transceiver is CE/RoHS certified and it is Compliant with product safety standards. 1.25G-cSFP-40-BD cSFP Transceiver is fully compliant to compact Small Form-Factor Pluggable (CSFP) MSA option 2 and SFF-8472. Consequently, it means that module is compatible with 80% of networking equipment, where is not implemented a special algorithm for protection against third party modules. However – we can provide cSFP transceiver with custom-encoded firmware in order to make it work almost in any equipment. Therefore, we will be glad to know what your requirement is. Because our focus is providing top quality service, we are performing serious quality checks before delivery of our products. As a result, we do optical parameter measurements, connector cleanness tests and cSFP transceiver EEPROM memory data validation tests.
