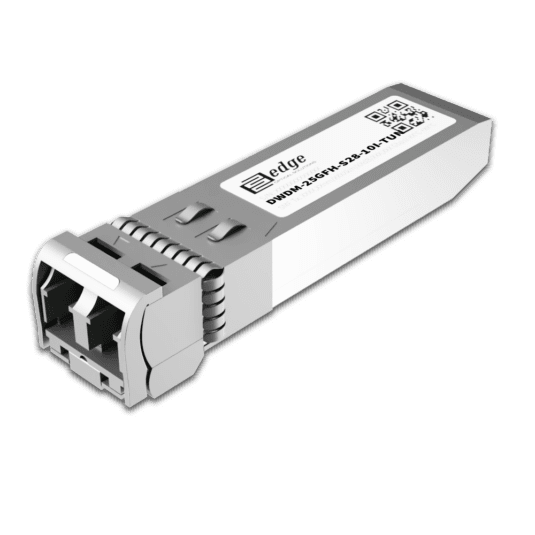

DWDM-25GFH-S28-10I-TUN

MSA Compatible 25G DWDM Tunable SFP28 Module

Tunable DWDM 25G SFP28 Module (Tx/Rx Channel 13-60/13-60, ITU Grid: C-Band 50 Ghz, 9.8-25.78 Gbps, Max. 10km over SMF, 16dB, Temp. -20 to 85C)

720.72

SKU: DWDM-25GFH-S28-10I-TUN-MS
Shipping:Below 1 Week in EU Countries

Similar products:

Key Technical Data
Media Type:

Single-Mode Fiber (SMF)

Connectors:

Double LC

TX Wavelength:

ITU-T DWDM Grid 100 GHz C-Band

RX Wavelength:

ITU-T DWDM Grid 100 GHz C-Band

Minimum Optical Budget:

18 dB

Maximum Distance:

10km

Supported Data Rate:

8.5-28.1 Gbps

Supported Applications:

CPRI option 10 (24.33 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), CPRI option 9 (12.165 Gbps)

DDM/DOM:

Supported

Forward Error Correction (FEC):

Host FEC Supported

Transmitter Type:

MZM Laser

Tx Wavelength Bandwidth:

0.8 nm (100GHz)

Average Launch Power (Min) Each Lane:

0 dBm

Average Launch Power (Max) Each Lane:

4 dBm

Extinction Ratio (Min):

6 dB

Receiver Type:

APD Photodiode

Rx Wavelength Bandwidth:

0.8 nm (100GHz)

Average Receiver Sensitivity (Min) Each Lane:

-18 dBm

Average Receiver Sensitivity (Max) Each Lane:

-5 dBm

Receiver Overload:

-5 dBm

Temperature Range:

Industrial -40° to 85°C

Storage Temperature:

-40° to 85°C

Relative Humidity:

5 to 85%

Power Consumption:

≤2.5W

Power:

+3.3V

Compliance:

SFF-8432, SFF-8690, CE, IEEE 802.3, RoHS, SFF-8431, SFF-8472, SFP28 MSA

DWDM-25GFH-S28-10I-TUN is Multi-Vendor MSA Compatible 25G DWDM Tunable SFP28 (Small Form-Factor Pluggable 28) multi-rate (9.83-25.78 Gbps) transceiver designed for operation over Double Single-Mode Fiber (SMF) optical cable in 5G Mobile Fronthaul environments for interconnection of radio heads and baseband units. 25G DWDM SFP28 Tunable transceiver has a guaranteed optical budget of 16 dB, which in most cases is enough to reach up to 10 kilometer distance with FEC (Forward Error Correction) present on the host device. Distance is just an indicative parameter for comfort of identification that is calculated by taking into account minimal optical budget and average attenuation of optical cabling in industry. On the transmission side 25G DWDM Tunable module converts a 25-Gbps NRZ electrical signal into a 25-Gbps optical signal on a specific wavelength and reversely at the receiver side 25-Gbps optical signal is converted into 25-Gbps NRZ electrical signal. DWDM-25GFH-S28-10I-TUN 25G DWDM SFP28 transceiver has a tunable laser with 48 channel support from the ITU-T 100GHz DWDM Channel Grid, more specifically Channel 13 to Channel 60 (191.3~196.0 THz) are supported. Transceivers support Wavelength auto-tuning (auto negotiation) functionality, where transceivers at both sides of the link can automatically match the link wavelength in the WDM system. Manual operation of wavelength tuning can be performed according to SFF-8690 Rev1.4 specification Page 6 description. One of 25G tunable SFP28 modules’ advantages is to reduce the extensive backup module amount in dense DWDM network environments with many hops and dedicated DWDM channels for each link.
25G DWDM Tunable Module has DDM/DOM optical diagnostics functionality, which provides real time access to device operating parameters, control and status registers as specified in SFF-8472. DWDM-25GFH-S28-10I-TUN operates in -20° to 80°C temperature range and has a Double LC interface. This SFP28 supports 9.8-25.78 Gbps data rate and such applications as CPRI option 10 (24.33 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), CPRI option 9 (12.165 Gbps).
25G DWDM Tunable module is CE/RoHS certified and it is Compliant with product safety standards. 25G DWDM SFP28 Tunable Transceiver is fully compliant to SFP28 Multi Source Agreement, IEEE802.3cc (25 Gb/s Ethernet over Single-Mode Fiber), SFF-8472 and SFF-8690. Consequently, it means that module is compatible with 80% of networking equipment, where is not implemented a special algorithm for protection against third party modules. However – we can provide an SFP28 transceiver with custom-encoded firmware in order to make it work in almost any base station manufacturers equipment. Therefore, we will be glad to know your requirements.
