QFX-QSFP-DAC-3M

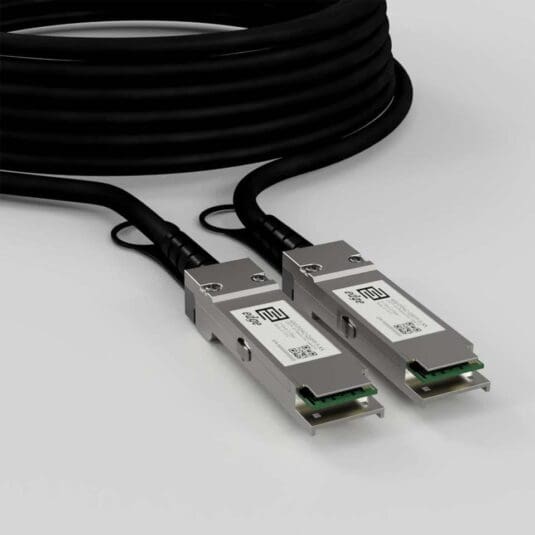

Juniper QFX-QSFP-DAC-3M (740-038624) Compatible QSFP 40G DAC
# Key Highlights
- Type:40G Passive Twinax Cable
- Compatibility: Juniper compatible
- Media Type: Passive Twinax Cable
- Lenght: 3m
- Data Rate: 2.125-41.2 Gbps
- Temperature: Standard 0°-70°C
- Low Power Consumption: 0.02W (Typical)
# Pricing & Ordering
SKU: 40G-PDAC-QSFP-3-JU
€26.53
Lead Time: Below 1 Week in EU Countries
# Quality Assurance
Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
# Key Technical Data
| Media Type: | Twinax Cable |
|---|---|
| DAC Copper Type: | AWG30 |
| Maximum Distance: | 3m |
| Supported Data Rate: | 2.125-41.2 Gbps |
| Supported Applications: | 4 x InfiniBand QDR (32Gbps), 4 x InfiniBand DDR (16Gbps), 4 x InfiniBand SDR (8Gbps), 40G Ethernet (41.25Gbps), 10G Ethernet (10.31Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps) |
| DDM/DOM: | Supported |
| Temperature Range: | Standard 0°-70°C |
| Connectors: | QSFP |
| Power: | +3.3V single power supply |
| Power Consumption: | 0.02W |
| MTBF: | 1 000 000 Hours |
| Compliance: | CE, IEEE 802.3ba, QDR InfiniBand, QSFP+ MSA, RoHS, SFF-8436 |
| Transceiver Type: | DAC |
# Product Documentation
Multi-Vendor MSA Compatible 40G-PDAC-QSFP Datasheet
Juniper Compatible QFX-QSFP-DAC-3M 40G Passive Twinax Cable is based on our product 40G-PDAC-QSFP. When You will order it will be encoded to be compatible with Juniper equipment and it will be labeled with part number: 40G-PDAC-QSFP-3-JU, where JU means Juniper Compatible. Above You can download datasheet of our 40G-PDAC-QSFP product.
# Product Description
QFX-QSFP-DAC-3M (740-038624) is Juniper compatible 40G Passive Twinax Cable, operating over passive copper cable. 40G Passive Twinax Cable is equipped with MSA standard compatible QSFP+ transceiver assembly at each end of cable. Juniper QFX-QSFP-DAC-3M (740-038624) compatible 40G Passive Twinax Cable supports 2.125-41.2 Gbps data rate and such applications as 4 x InfiniBand QDR (32Gbps), 4 x InfiniBand DDR (16Gbps), 4 x InfiniBand SDR (8Gbps), 40G Ethernet (41.25Gbps), 10G Ethernet (10.31Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps). Most popular applications of QFX-QSFP-DAC-3M (740-038624) compatible 40G Passive Twinax Cable are cost effective close range interconnections within equipment room of telecom operators or data centers, interconnecting LAN or SAN applications with speeds up to 40G.
QFX-QSFP-DAC-3M (740-038624) Juniper compatible Passive Twinax Cable is based on our 40G-PDAC-QSFP product, which is fully compliant with QSFP+ Multi Source Agreement (MSA) SFF-8436 standard, product safety standards and is CE/RoHS certified. We perform compatibility tests for QFX-QSFP-DAC-3M (740-038624) Juniper compatible Passive Twinax Cable with the most recent Juniper networking equipment platforms, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly with Juniper platforms! Because we are committed to providing high-quality service, we conduct rigorous quality checks before delivering our products. As a result, we perform optical parameter measurements, connector cleanness tests, and EEPROM memory data validation tests on our products. Feel free to Contact us – We will gladly learn about your needs and provide you with the best alternative of QFX-QSFP-DAC-3M!
