Because of our comprehensive Testing Program, we are confident on quality of our products. Such approach empower us to cover all our products with:
Media Type: | Twinax Cable |
---|---|
DAC Copper Type: | AWG30 |
Maximum Distance: | 3m |
Supported Data Rate: | 1.0625-10.52 Gbps |
Supported Applications: | 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps), CPRI option 3 (2.458 Gbps), CPRI option 5 (4.915 Gbps), CPRI option 6 (6.144 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), OBSAI RP3 x 2 (1.536 Gbps), OBSAI RP3 x 4 (3.072 Gbps), OBSAI RP3 x 8 (6.144 Gbps) |
DDM/DOM: | Supported |
Temperature Range: | Standard 0°-70°C |
Connectors: | SFP+ |
Power: | +3.3V single power supply |
Power Consumption: | 0.5W |
MTBF: | 1 000 000 Hours |
Compliance: | CE, RoHS, SFF-8431, SFP MSA |
Transceiver Type: | DAC |

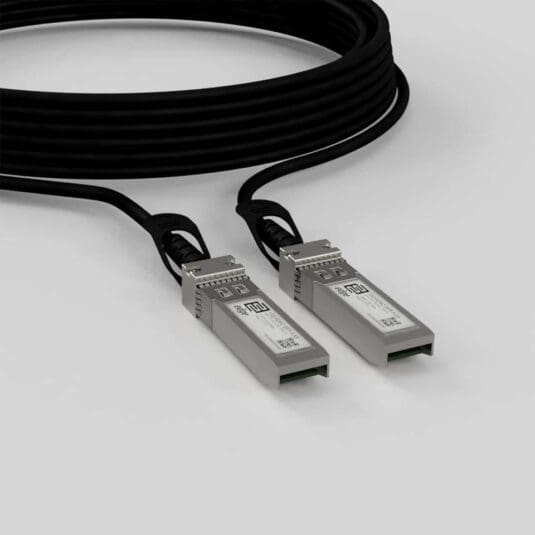

Juniper Compatible QFX-SFP-DAC-3MA 10G Active Twinax Cable is based on our product 10G-ADAC-SFP. When You will order it will be encoded to be compatible with Juniper equipment and it will be labeled with part number: 10G-ADAC-SFP-3-JU, where JU means Juniper Compatible. Above You can download datasheet of our 10G-ADAC-SFP product.
QFX-SFP-DAC-3MA (740-032276) is Juniper compatible 10G Active Twinax Cable, operating over active copper cable. 10G Active Twinax Cable is equipped with MSA standard compatible SFP+ transceiver assembly at each end of cable. Juniper QFX-SFP-DAC-3MA (740-032276) compatible 10G Active Twinax Cable supports 1.0625-10.52 Gbps data rate and such applications as 10G Ethernet (10.31Gbps), Gigabit Ethernet (1.25 Gbps), 10G Fiber Channel (10.52 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps), 2G Fiber Channel (2.125 Gbps), 1G Fiber Channel (1.0625 Gbps), CPRI option 2 (1228.8 Mbps), CPRI option 3 (2.458 Gbps), CPRI option 5 (4.915 Gbps), CPRI option 6 (6.144 Gbps), CPRI option 7 (9.830 Gbps), CPRI option 8 (10.138 Gbps), OBSAI RP3 x 2 (1.536 Gbps), OBSAI RP3 x 4 (3.072 Gbps), OBSAI RP3 x 8 (6.144 Gbps). Most popular applications of QFX-SFP-DAC-3MA (740-032276) compatible 10G Active Twinax Cable are cost effective close range interconnections within equipment room of telecom operators or data centers, interconnecting LAN or SAN applications with speeds up to 10G.
QFX-SFP-DAC-3MA (740-032276) Juniper compatible Active Twinax Cable is based on our 10G-ADAC-SFP product, which is fully compliant with SFP+ Multi Source Agreement (MSA) SFF-8432 standard, product safety standards and is CE/RoHS certified. We perform compatibility tests for QFX-SFP-DAC-3MA (740-032276) Juniper compatible Active Twinax Cable with the most recent Juniper networking equipment platforms, allowing us to encode transceiver EEPROM memory to be compatible with and work seamlessly with Juniper platforms! Because we are committed to providing high-quality service, we conduct rigorous quality checks before delivering our products. As a result, we perform optical parameter measurements, connector cleanness tests, and EEPROM memory data validation tests on our products. Feel free to Contact us – We will gladly learn about your needs and provide you with the best alternative of QFX-SFP-DAC-3MA!
